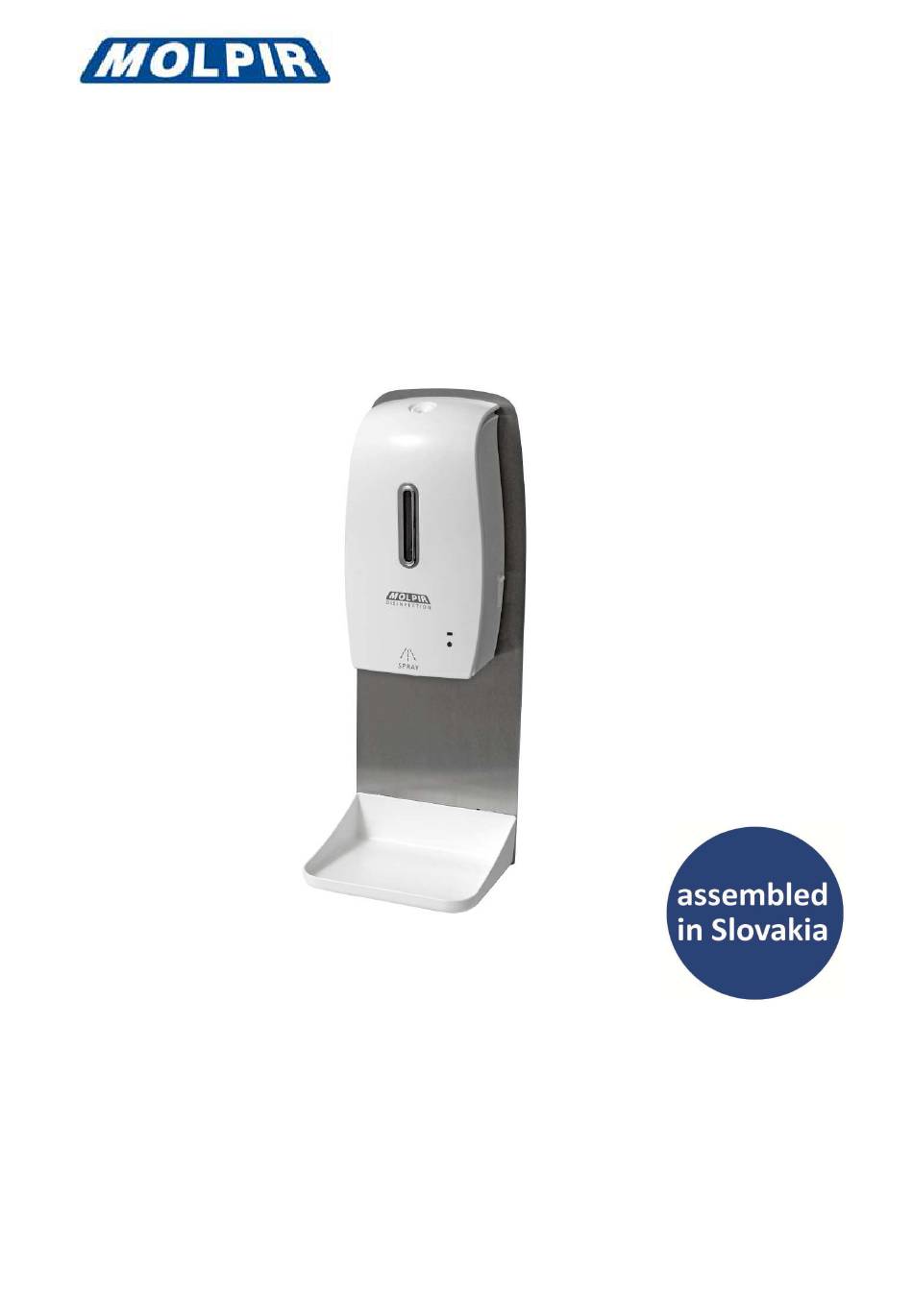

User manual
Disinfectant dispenser; non-contac with spray;
on the wall installation bracket
Ord. code: DD-MOL-010

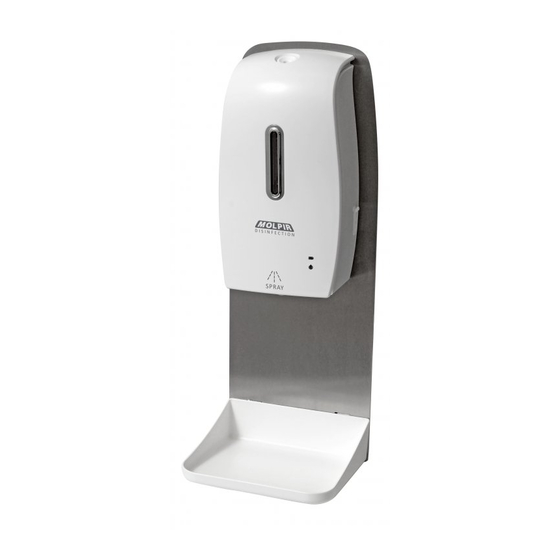

The non-contact disinfectant dispenser integrated on the on the wall installation bracket. With solid
construction made of stainless steel with atractive design. The smooth surface is easy to clean.
Date: July 9, 2020
NU_DD-MOL-010_000_09072020_EN.doc
©MOLPIR 2020. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Molpir DD-MOL-010
Summary of Contents for Molpir DD-MOL-010
- Page 1 Ord. code: DD-MOL-010 The non-contact disinfectant dispenser integrated on the on the wall installation bracket. With solid construction made of stainless steel with atractive design. The smooth surface is easy to clean. Date: July 9, 2020 NU_DD-MOL-010_000_09072020_EN.doc ©MOLPIR 2020. All rights reserved.
- Page 2 General information The non-contact spray disinfection dispenser can be used with the following fillings: • liquid with alcohol content up to 75% • Oxychlorine with an active substance concentration of 0.03% • other chlorine-based disinfectants: Cl max. 50 ml / 1 l Description of controls and main components of the dispenser ①...
- Page 3 Installation on the wall Select a suitable location for mounting the disinfection dispenser. It should be a flat, smooth surface indoors and out of direct sunlight and out of reach of the heat source. For assembly, you can use the installation material, which is intended for brick masonry and concrete structures and is part of the package.
- Page 4 Fig. 3 – fix the dispenser to the rear holder Fig. 4 – attaching the drip tray Filling with disinfectant • Release the reservoir (item no. ⑧) by pushing it downwards and pulling the upper part with the cap towards you and then remove it upwards and towards you - Fig.
- Page 5 Inserting the batteries Gently push and slide the battery Insert 4 pcs of new alkali alkali alkali alkalin n n n e batteries e batteries e batteries e batteries Insert back the battery cover cover in the direction of the arrow AA type type so that the polarity of the inserted batteries is in accordance with the marking polarity on the dispenser...
- Page 6 Description of LED signaling • The red LED flashes when the dispenser is switched on, when the dose size is set and when the front cover is opened / closed. • Green LED - lights up once for 1 second when the dose size is switched, followed by a flashing of the red LED once when switching to position I, resp.
- Page 7 Recommendet disinfectant refills Ordering code Product description DD-MOL-201 Alcohol based disinfectant with glycerine for direct use in hand dispenser; 5 l container DD-MOL-202 Alcohol based disinfectant with glycerine for direct use in hand dispenser; 1 l bottle Solution for hands disinfection Steriland DERMA with HCl 0,025 %; for direct use in DD-MOL-203 disinfection dispenser;...
