Reely DARK WINGS Manual

Rubber Band Powered Ornithopter
Please carefully read instructions before assembling. Any errors in assembly may result in poor flying performance.
Choose a wide-open area with few people to fly the plane.
Do not launch the plane in the direction of other people.
Do not fly the plane near high-voltage electrical lines or crowds of people.
Carbon fiber fuselage

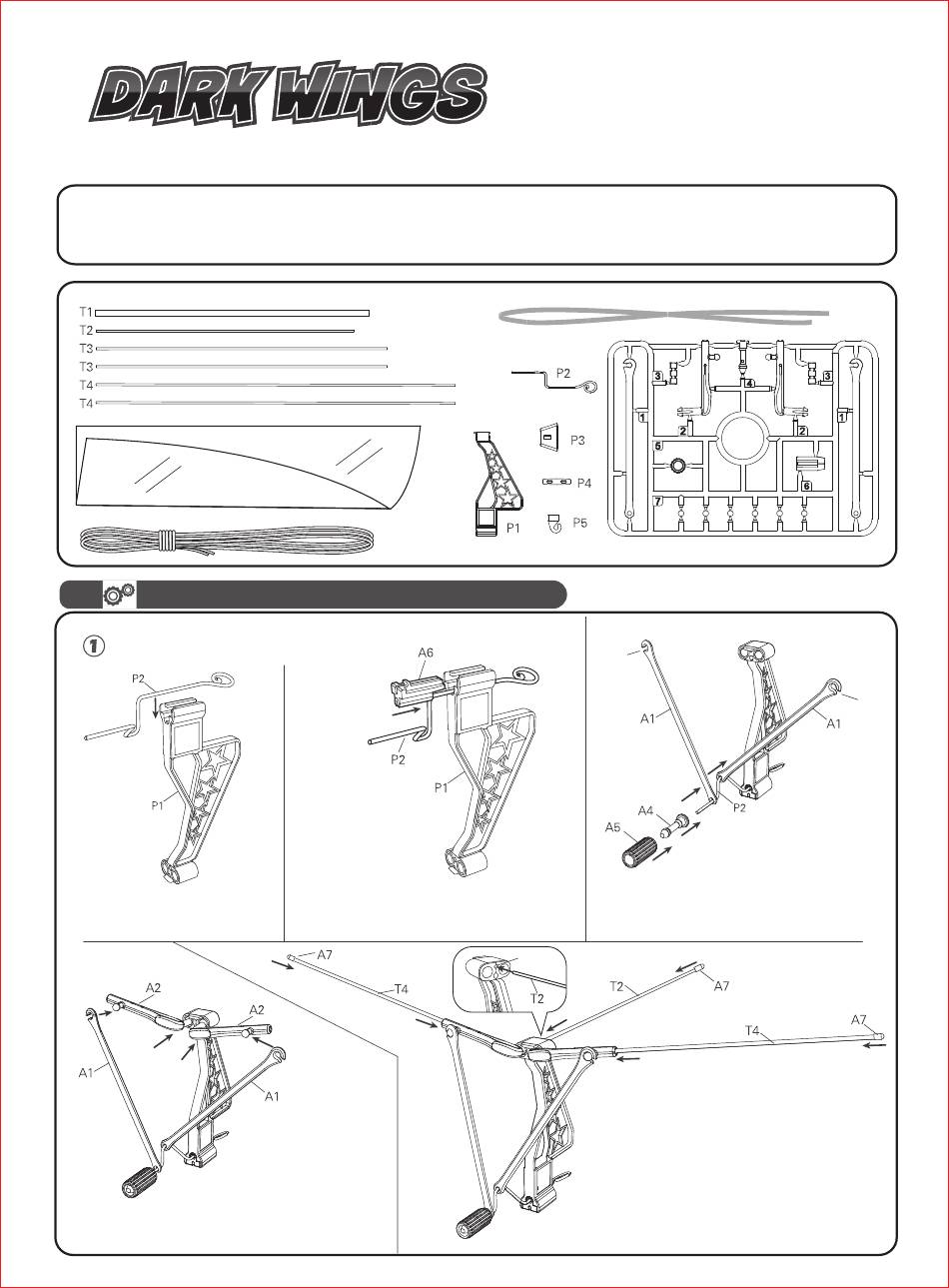

Installation

Assemble the nose
Insert crank P2 from the nose of the plane
into the bottom of slot P1 as shown in the
diagram, with the bend kept vertical and
pointing downward.
As the diagram shows, insert A2 into the notch at the top of
P1, then attach connector head A1 to connector column A2.
3*3*160mm
155mm
170mm
210mm
Sheet
material
Rubber band
*When dismantling A6, push
the bottom bracket of A6
outward.
Insert the bottom of slot A6 into the metal wire of the
nose, then push it horizontally into slot P1 in a
horizontal direction.
Once correctly assembled, P2 can shake smoothly.
Double-sided tape
Hole
As the diagram shows, attach A1 to the bend in crank P2 of
the airplane nose, then install A4 and A5 in that order.
Smaller
hole
Insert T4 into slot A2 and then attach A7 to the
other end. Insert T2 into the smaller slot at the
top of P1 and then attach A7 to the other end.
*After the nose of the plane is fully assembled, turn
the crank several times in a clockwise direction to
check whether the right and left arms can move up
and down symmetrically.
Panel A
Hole
*Pay attention to the direction
of the notch at the top of A1.
