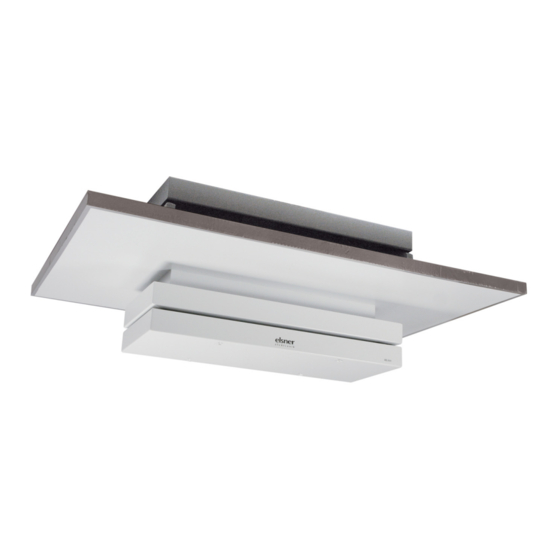

WL800
Ventilation unit for operation in exhaust
and circulating modes
Technical specifications and installation instructions
Item numbers 60461-60466, 60471-60476
Elsner Elektronik GmbH Control and Automation Engineering
Sohlengrund 16
75395 Ostelsheim
Germany
Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de
Fax
+49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de
Technical support: +49 (0) 70 33 / 30 945-250
Advertisement
Table of Contents
Related Manuals for elsner elektronik WL800
Summary of Contents for elsner elektronik WL800
- Page 1 WL800 Ventilation unit for operation in exhaust and circulating modes Technical specifications and installation instructions Item numbers 60461-60466, 60471-60476 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany +49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de...
- Page 2 RF-WL, RF-WL 0-10 V • Manual operation possible with the following radio transmitters: Remo 8 (from version 1.1), RF-B2-UP, Corlo P1 RF, Corlo P2 RF Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice.
-
Page 3: Technical Specification
Comfortable ventilation is achieved with an opening size starting at 38,400 mm² (384 cm²) for each WL800. Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice. - Page 4 751 mm plus the measure needed for mounting on both sides Minimum depth approx. 405 mm plus the measure needed for mounting above and below Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice.
-
Page 5: Installation And Start-Up
VDE regulations and national regulations are to be followed. • Ensure that all lines to be assembled are free of voltage and take precautions against accidental switching on. Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice. -
Page 6: Notes On Wireless Equipment
Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice. - Page 7 (rain, snow, leaves etc.). Air outlet DOWNWARD Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice.
- Page 8 1. Remove the screws on the internal hood and pull the hood down on the air discharge side. 2. Shift the hood approx. 60mm and remove it. Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice.
-
Page 9: Establish Wireless Connection
Note: Radio interference (rarely) may cause the speed to continue changing after the key is released. In this case, briefly press the key again to stop it. Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice. - Page 10 Each time the OFF state is reached, the speed change stops automatically, so that a direct change between exhaust and circulation modes is impossible. Ventilation Unit WL800 • Version: 28.04.2016 • Errors and technical modifications subject to change without notice.
