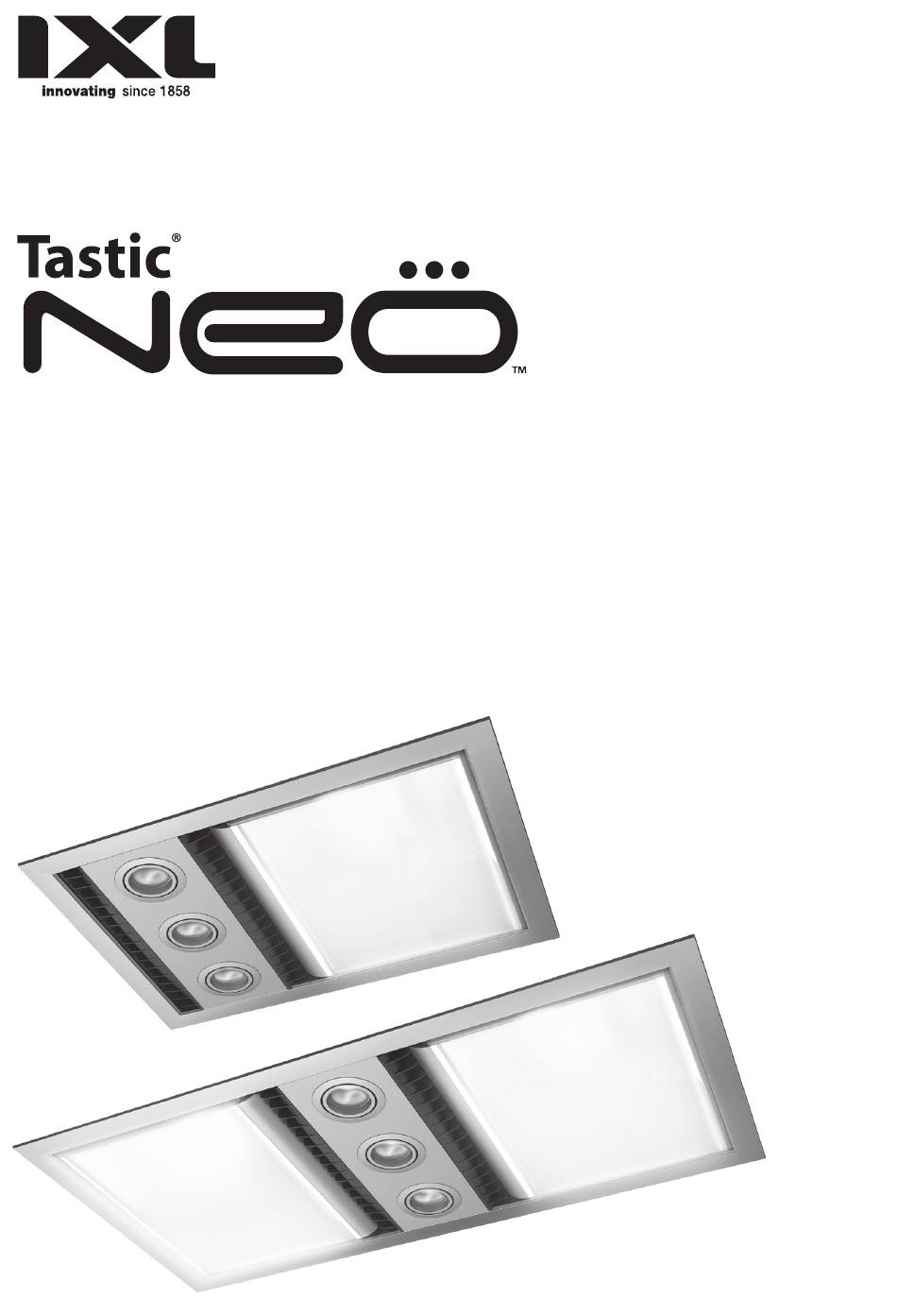

User Guide
Heat • Vent • Light
Model: 31111 Neo Single White - Hardwired
Model: 31112 Neo Single Silver - Hardwired
Model: 31211 Neo Single White - Remote
Model: 31212 Neo Single Silver - Remote
Model: 31311 Neo Single White - Commercial
Model: 31312 Neo Single Silver - Commercial
Electrical Rating: 230~240 V. 50 Hz.
Model: 32111 Neo Dual White - Hardwired
Model: 32112 Neo Dual Silver - Hardwired
Model: 32211 Neo Dual White - Remote
Model: 32212 Neo Dual Silver - Remote
Model: 32311 Neo Dual White - Commercial
Model: 32312 Neo Dual Silver - Commercial
Model : 31111, 31112, 31211, 31212,
31311 and 31312 Neo Si n gl e
Model : 32111, 32112, 32211, 32212,
32311 and 32312 Neo Dual
Advertisement
Table of Contents
Related Manuals for IXL 31111 Tastic Neo Single White
Summary of Contents for IXL 31111 Tastic Neo Single White
- Page 1 User Guide Heat • Vent • Light Model: 31111 Neo Single White - Hardwired Model: 32111 Neo Dual White - Hardwired Model: 31112 Neo Single Silver - Hardwired Model: 32112 Neo Dual Silver - Hardwired Model: 31211 Neo Single White - Remote Model: 32211 Neo Dual White - Remote Model: 31212 Neo Single Silver - Remote Model: 32212 Neo Dual Silver - Remote...
-
Page 2: Table Of Contents
Welcome Thank you for buying this IXL Tastic Neo. Even if you have used a Tastic before, there are very good reasons to read this user guide before using this one: • You and your family, property and home will be safe from harm. -
Page 3: Tastic Neo Range
® Tastic Tastic Neo Range 31211 Neo Single – White 1 x 800 W Tungsten Halogen Heat Lamps 3 x 7 W LED Downlights Remote Control Cutout Template Supplied 170 mm Ducted Blower, 346 m³/hr or 96 l/s 31212 Neo Single – Silver 1 x 800 W Tungsten Halogen Heat Lamps 3 x 7 W LED Downlights Model: 31211 Neo Single –... - Page 4 ® Tastic Tastic Neo Range 32211 Neo Dual – White 2 x 800 W Tungsten Halogen Heat Lamps 3 x 7 W LED Downlights Remote Control Cutout Template Supplied 170 mm Ducted Blower, 346 m³/hr or 96 l/s 32212 Neo Dual – Silver 2 x 800 W Tungsten Halogen Heat Lamps Model: 32211 Neo Dual - White 3 x 7 W LED Downlights...
-
Page 5: Safety
This appliance must be mounted with the lowest point at least 2.3 metres from the foor. If the supply cord is damaged, it should be replaced by the IXL Appliances or its service agent or a similarly qualifed person in order to avoid a hazard. -
Page 6: How It Works
To ensure you get the most from your Tastic there are a few simple points to keep in mind. HEAT LAMPS The IXL Tastic Neo uses 800W tungsten halogen heat lamps in conjunction with reflective elements, for a more efficient dispersion of radiant heat. The tungsten halogen lamps provide instantaneous heat, and are designed to heat you and not your bathroom - that’s the efficient way infra red heat... -
Page 7: Ventilation Requirements
® Tastic Ventilation Requirements For maximum efficiency and fan performance there are a few key points to keep in mind when installing your Tastic. Sufficient air inlet into room Steam will only be removed if there is sufficient flow of air through the room. Ensure generous inlets exist through windows, vents or under the door. -
Page 8: Overview
® Tastic Overview Tastic Neo Models: 31211, 31212, 32211 & 32212 Eaves lining Flexible support Transition Tastic unit Ducted blower Exterior of home Smart Switch remote Ducting Isolating wall switch (not supplied) Air outlet grille positioned in eaves lining Fig. 3: Layout of Tastic Neo Smart Switch Single and Dual. Tastic Neo Models: 31311, 31312, 32311 &... -
Page 9: Smart Switch Operation
® Tastic Smart Switch Operation The Smart Switch system and functions All functions are controlled by the Smart Switch (Fig. 5), a battery powered wall mounted remote unit that sends an Infra red (IR) signal to a receiver mounted in the Tastic Neo fascia. - Page 10 See Fig. 6 for handset switch settings. Fig. 7 Replacement Batteries Smart Switch – 4 x AAA / 1.5 V / UM-4 batteries IXL Cat. No. 626655 Batteries supplied with the Smart Switch are not covered by the manufacturer’s warranty.
-
Page 11: Heat Lamp Replacement
Hold your other hand below the other end of the shield to catch it when it drops. ® If the shield chips, cracks or breaks, do not use the heat lamp without it. Replace it with IXL Tastic Neo Tempered Glass Shield Part 12200, not normal household glass. - Page 12 ® Tastic Heat Lamp Replacement Socket Heat Lamp Air Inlet Shield Fitting New Heat Lamp Natural skin oils and salts damage new halogen lamps and shorten their life. Only handle a new heat lamp with soft, dry, clean, lint-free cloth or paper. You can wear gloves, cover your fingers or wrap the heat lamp until it is installed (so long as you remove all cloth or paper when finished).
-
Page 13: Led Replacement
® Tastic LED Replacement Step 1 – Figure 8 Tilt the lamp ring. Step 2 – Figure 9 Grip the lamp ring and pull lamp fitting away from fascia. Step 3 – Figure 10 Twist the lamp holder to separate from the lamp. Fig. -
Page 14: Replacement Lamps
The IXL Tastic lamps have been specially developed for best performance. R7s, 258mm long, 800W max. IXL Cat No. 113800 NOTE: Replace only with genuine IXL approved infra red halogen heat lamps. Light Bulb GU10 7W LED Cat No. 12253 Light bulb is not covered by manufacturer’s warranty. -
Page 15: Frequently Asked Questions (Faq)
Service NOTE: Do not remove the Tastic Neo from the ceiling. Your Tastic Neo will be serviced in your home. If service is required, please contact IXL’s Service Centre on 1300 727 421. Frequently asked questions – Will my Tastic Neo heat my bathroom? A –... -
Page 16: Products
Products IXL Range: Tastic and Ventilation Within the IXL Tastic and ventilation range there are a number of products and optional accessories available, these include: Tastic 3 in 1: Heat, Light and Fan Tastic 2 in 1: Heat and Light... -
Page 17: Record Your Model
RECORD THE DETAILS OF YOUR MODEL AND KEEP THE FOLLOWING INFORMATION DO NOT SEND THIS TO IXL Installed By ................ -
Page 18: Warranties
Sampford IXL however, all associated reinstallation charges will be borne by the owner. 4. To the fullest extent permitted by law and subject always to Point 1, Sampford IXL will not be liable for: a. - Page 19 Sampford IXL Authorised Service Dealer. 10. Subject to Point 1, in the event you live more than 50 km from a Sampford IXL Authorised Service Dealer you may be subject to travel or transport costs to facilitate the repairing or replacement of your IXL product.
- Page 20 For comments, questions or warranty matters: Sampford IXL Pty Ltd Service Department Phone: 1300 727 421 Fax: 1300 727 425 aftersalesservice@sampfordixl.com.au info@sampfordixl.com.au Approved by the appropriate electrical supply authorities. I N H O M E www.sampfordixl.com.au WARRANTY...
