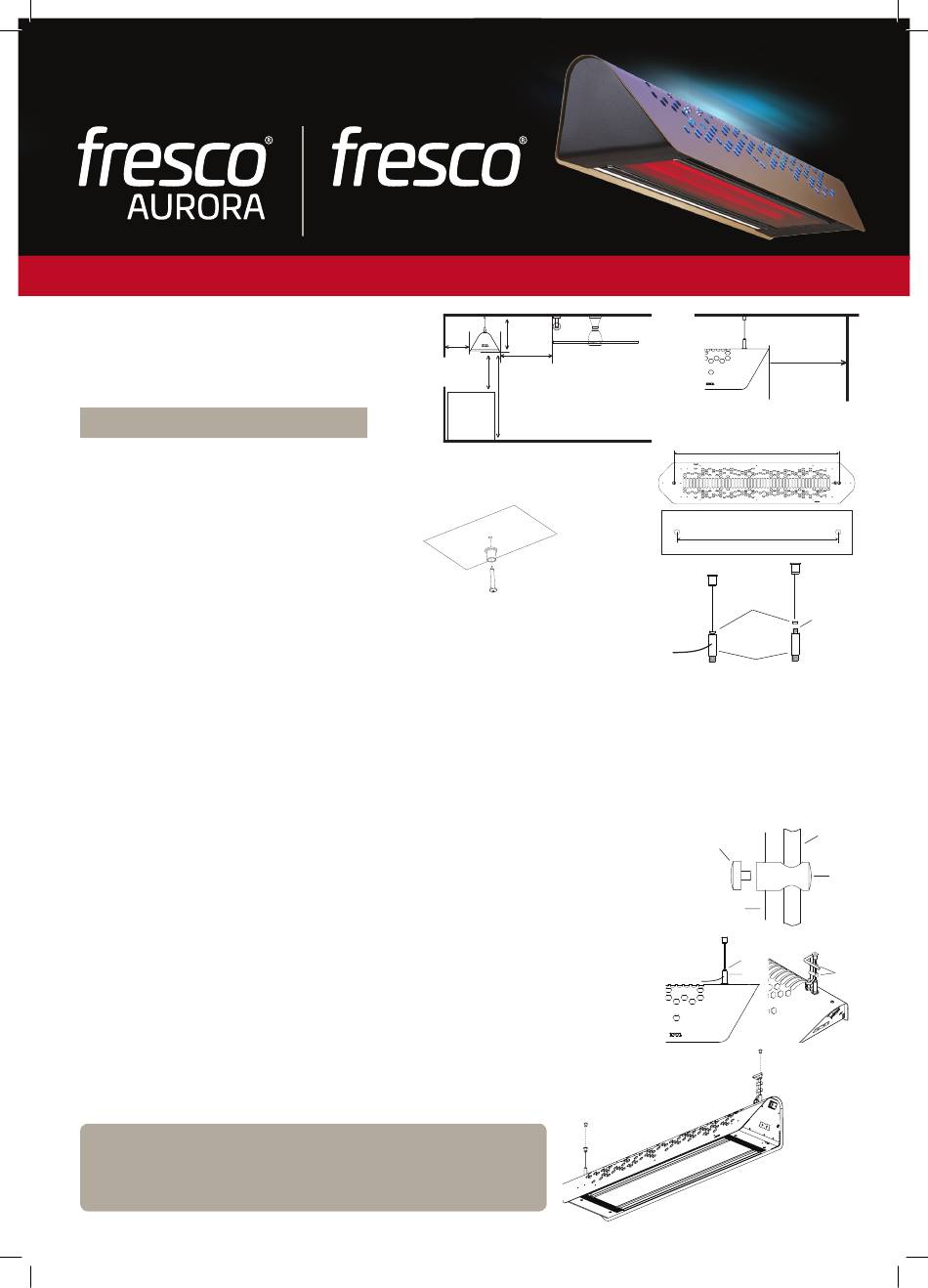

IXL fresco Aurora Quick Setup Manual

Quick set up guide
MODEL No. 23101
NOTE: Before operating the unit, the instructions and detailed safety cautions must be read.
The following clearances are
required, when installing
the Fresco.

Installing Fresco

STEP 1

Measure and mark the mounting holes on the ceiling at a distance of 1025mm. When installing into
a plaster board ceiling, make sure that the unit is hung from the joists, beams or rafters. This Fresco
unit is not suitable for recessed mounting.

STEP 2

Screw the fixing caps to the ceiling with the screws provided.

STEP 3

To remove the cable from the cable gripper assembly, loosen the clamping nut at the top of the gripper
and push down. This loosens the lock and the cable is able to move freely through the gripper. When
the downward pressure is released the gripper will lock onto the cable.

STEP 4

After the cable is removed from the gripper assembly, measure out the required cable length. The cable length required is calculated by
the following formula.
Cable length required = Ceiling height – 2.1m (e.g. 2.4m – 2.1m = 0.3m of cable required)
When cutting the cable, the cut must be clean so that the end is not frayed which could cause the Cable catching on either the cable
guides or the gripper assembly.
Note: This length is based on the lowest surface for the heater being 2.1 metres from the floor.
Note: The lowest point of the heater must be a minimum of 2.1m from the floor. If this is not done, the installation is not complaint.

STEP 5

After the cable is cut and before securing the cable back into the gripper assembly, thread the cable through
the two cable guides (located on power cord). When threading the cable guide ensure the grub screw is
loose to allow the cable to pass through easily. NOTE, do not pull the cable back through the grub without
loosening as this will cause the cable to strip. When the right hight is achieved, tighten and secure the grub
screw in place.

STEP 6

Now thread the mounting Cable through the gripper assembly and use the Clamping Nut to secure
the Cable in place as shown in the picture from Step 3. When this is done screw the gripper assembly
into the Fresco.

STEP 7

Lift the unit up to the ceiling and screw the fixture attachment to the fixing cap mounted in Step 2.
For further installation details refer to the Fresco User Guide.
Installation of any electrical wiring, power outlet or switch is to be carried
out by registered/licensed electrician and must comply with the current
Australian/New Zealand Wiring Rules AS/NZS 3000.
MODEL No. 22001
CEILING
400mm
300mm
min
min
Fans, Lights and
400mm
1000mm min
Sprinkler Fittings
min
from surfaces
below heater
Must Not Be Below
The Heater
2100mm
min
<
400mm min
on both ends
FLOOR
1025mm
1025mm
1025mm
1025mm
Clamping
Nut
Gripper
Assembly
Grub
Screw
Mounting
Cable
Clamping
Nut
Gripper
Assembly
Small
Thread
Section
Power
Cord
Cable
Guide
Cable
Guides
