ENGLISH
INSTRUCTION MANUAL
Toner-Pro
Tone Generator
• TRACE INDIVIDUAL
OR PAIRED WIRES*
• TEST RJ11, RJ12,
AND RJ45 JACKS*
• DETECTS
CONTINUITY AND
POLARITY
• 5 DISTINCT TONES
(3 CONSTANT,
2 ALTERNATING)
• EASY-TO-
UNDERSTAND
STATUS LEDs
* When used with VDV500-123 Probe-Pro
DEUTSCH
Seite 9
VDV500-063
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Toner-Pro VDV500-063 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Klein Tools Toner-Pro VDV500-063

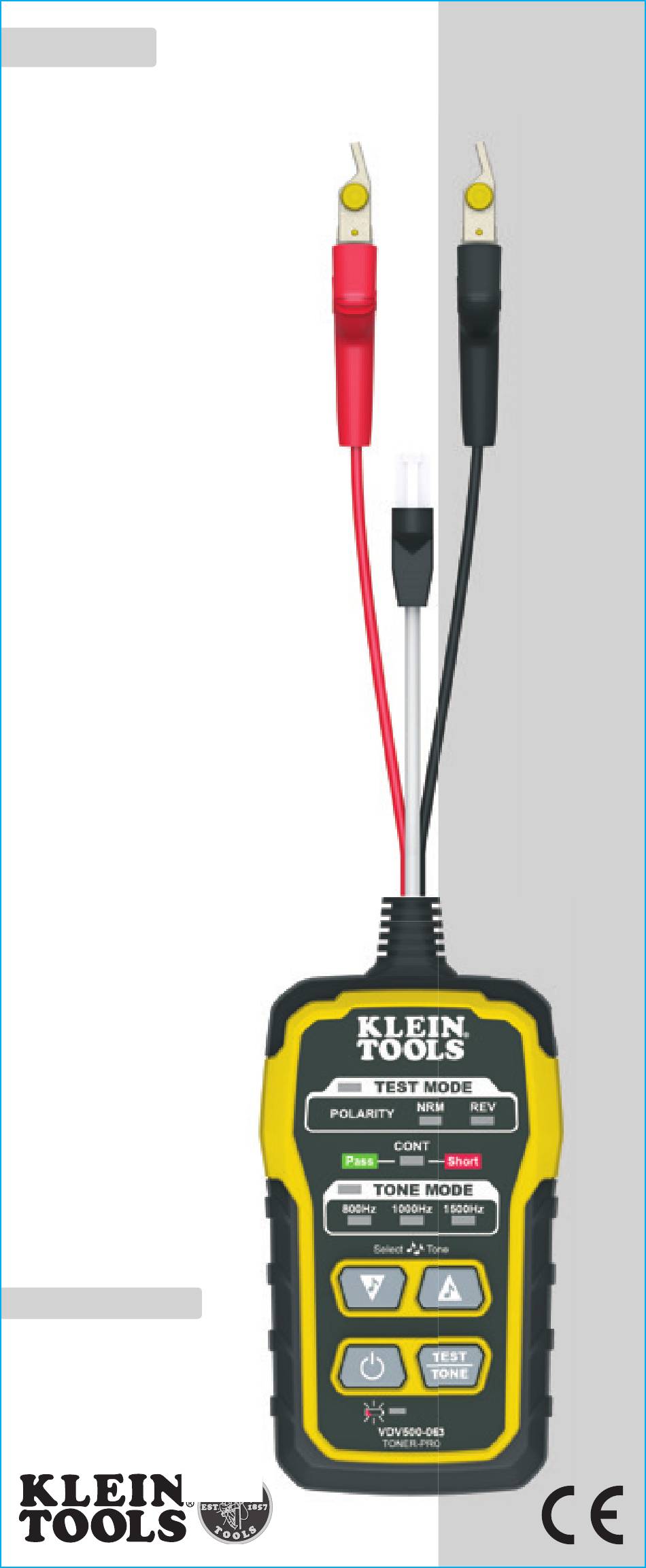

  • Page 1 ENGLISH VDV500-063 INSTRUCTION MANUAL Toner-Pro Tone Generator • TRACE INDIVIDUAL OR PAIRED WIRES* • TEST RJ11, RJ12, AND RJ45 JACKS* • DETECTS CONTINUITY AND POLARITY • 5 DISTINCT TONES (3 CONSTANT, 2 ALTERNATING) • EASY-TO- UNDERSTAND STATUS LEDs * When used with VDV500-123 Probe-Pro DEUTSCH Seite 9...
  • Page 2: General Specifications

    ENGLISH GENERAL SPECIFICATIONS FEATURE DETAILS The Klein Tools VDV500-063 Toner-Pro is a professional-series tone generator for wire identification, wire tracing and wire pair identification. It features several tone frequencies and strong power output for tracing wires. Operating Altitude: 6562 ft. (2000 m) maximum •...
  • Page 3 ENGLISH OPERATING INSTRUCTIONS WARNINGS To ensure safe operations and service of the instruments, follow these FIG. 1 instructions. Failure to observe these warnings can result in re, electric shock, severe injury or death. The Toner-Pro and Probe-Pro (sold seperately) are designed for use on extra-low •...
  • Page 4: Maintenance

    Please (black/positive, red/negative) is the opposite of the multimeter color see www.epa.gov or www.erecycle.org for additional information. code convention (red/positive, black/negative). CUSTOMER SERVICE KLEIN TOOLS, INC. 450 Bond Street Lincolnshire, IL 60069 1-877-775-5346 customerservice@kleintools.com...
  • Page 5 NOTES 1390302 - German...
  • Page 6 DEUTSCH VDV500-063 GEBRAUCHSANLEITUNG Toner-Pro Tongenerator • ORTUNG VON EINZELNEN KABELN ODER KABELPAAREN* • PRÜFUNG VON RJ11-, RJ12- UND RJ45- DATENBUCHSEN* • ANZEIGEN VON DURCHGANG UND POLARITÄT • 5 VERSCHIEDENE TÖNE (3 DAUERTÖNE, 2 ALTERNIERENDE TÖNE) • EINFACH ZU IDENTIFIZIERENDE STATUS-LEDs * Bei Verwendung mit der VDV500-123 Probe-Pro...
  • Page 7: Allgemeine Technische Daten

    DEUTSCH ALLGEMEINE TECHNISCHE DATEN FUNKTIONSDETAILS Bei diesem VDV500-063 Toner-Pro von Klein Tools handelt es sich um einen professionellen Tongenerator zur Kabelidentifikation, Kabelortung und Kabelpaaridentifikation. Das Gerät verfügt über mehrere Tonfrequenzen und eine hohe Ausgangsleistung zur Ortung von Kabeln. Betriebshöhe: max. 2000 m (6562 Fuß) •...
  • Page 8 DEUTSCH BETRIEBSANLEITUNG WARNUNGEN Beachten Sie die folgenden Anweisungen, um einen sicheren Betrieb und eine sichere Wartung der Geräte zu gewährleisten. Bei Nichtbeachtung dieser ABB. 1 Warnungen können Brände, Stromschläge und schwere bis lebensgefährliche Verletzungen verursacht werden. Toner-Pro and Probe-Pro (separat erhältlich) sind zum Testen von Kabelsystemen •...
  • Page 9: Wartung

    DEUTSCH BETRIEBSANLEITUNG WARTUNG RJ11-/RJ12-/RJ45-TESTS BATTERIEWECHSEL Der Toner-Pro verfügt über einen RJ11-Teststecker , der anstelle der Wenn die Anzeige niedriger Batterieladestand blinkt, müssen die ABN-Clips zur Tonübertragung verwendet werden kann. Der RJ11- Batterien ausgetauscht werden. Stecker ist mit RJ11- RJ12- oder RJ45-Datenbuchsen kompatibel. Die roten und schwarzen ABN-Kontakte werden durch die 2 Mittelleiter des 1.
  • Page 10 NOTIZEN 1390302 – Deutsch...
