- Page 1 DESIGNER SERIES INSTALLATION, OPERATION & MAINTENANCE AIRFLOW REINVENTED...

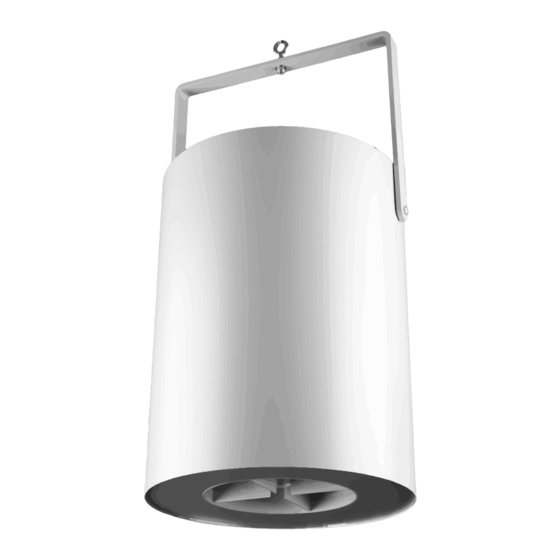

- Page 2 Installation » About the Airius Designer Series Series Operation » The Designer Series unit is an energy-efficient air turbine, designed to continuously move a column Maintenance » of air to the floor for destratification and air circulation purposes. A typical system installation...
- Page 3 Designer Series will be directly bisected by another source of air flow, such as from another Do not carry the Designer Series unit by the cord. fan or from an open supply register. Do not Do not use the cord as a handle. Do not use the position the unit close to other objects that will cord to attach or hang the product.
- Page 4 Safety Precautions Continued Pre-Installation Electrical The Designer Series unit is designed to be used with only the electrical voltage identified on the label located in the nozzle and on the bottom of ELECTRICAL WORK MUST BE PERFORMED the motor. Connecting to any other voltage could...
- Page 5 Branch Circuit Protection cables, carabiners, bridle rings, beam clamps and bolts. Roof structure, building construction, The Designer Series fans do not include fuses for electrical outlets/service and accessibility branch circuit protection. The branch circuit must will define the appropriate hardware for each have a dedicated circuit breaker or similar device.
- Page 6 - if in any doubt seek expert guidance. NOTE: The Designer Series System can be wired directly to a junction box but only by a qualified The power cord is a three-wire 18 AWG (or 16 electrician or similarly qualified person.
- Page 7 10/15/25, capable of supporting a minimum of five times the weight of the Designer Series unit, 60 lb. (27 kg.). Example - 1/4” (7 mm) diameter steel bolt is rated at 60 lb. (27 kg.) load.
- Page 8 After ensuring the Designer Series system is firmly attached, remove your hands from the unit. It is then safe to plug the unit into the power source using the approved plug to confirm function and electrical continuity. NOTE: SECURE the power cord to the ceiling structure as added security.
- Page 9 The Designer Series is an energy-efficient air turbine, designed to continuously move a column Unplug unit from power source first of air to the floor. A typical Designer Series to prevent possible electrical shock and installation includes a series of units mounted prevent injuries from spinning blades.
- Page 10 These include new units or units rebuilt under Airius’ factory refurbish program. Airius will repair or replace such units, at Airius’ sole discretion, if there is any defect in their materials or workmanship caused by Airius during the warranty period. With respect to replacement or repair rendered, Airius warrants that the parts replaced or repaired will operate properly and be free from defects in materials and workmanship for the remainder of the original warranty period.
- Page 11 711 South Lincoln Street Longmont, Colorado 80501 Airius will return the unit(s) freight prepaid. Airius may elect to repair the same unit at customer site or offer replacement parts to facilitate repair and reduce customer down time and expense. Airius is not responsible for misuse of their product.
