Airius 10 Installation Instructions

saving you energy
INSTALLATION INSTRUCTIONS FOR 1 AMP
SPEED CONTROLLERS
Speed controller
controllable motors
1 x 1 AMP CONTROLLER WILL OPERATE THE
FOLLOWING:
PLEASE CONTACT AIRIUS FOR RECOMMENDED
QUANTITY OF FANS PER CONTROLLER FOR
YOUR UNIQUE APPLICATION
Technical Data
Voltage: 230Vac – 50/60Hz
MAX AMPS
STR-1-10L10
Enclosure: Plastic R-ABS, UL94-V0, grey RAL 7035
or sheet steel (RAL 7032, polyester powder coating).
Recommended prim. Fuse: ca 1,5 x trafo.
Max ambient temperature: 35°C
These transformer speed controllers are based on the
principle of voltage control with auto-transformers.
They are applicable to voltage-controllable motors
(230V – 50/60Hz) to control the speed (of fans,
pumps etc.). When choosing a controller it is impor-
tant to know the current intensity consumption on
the taps.
Mounting
The controllers are to be mounted on a smooth
surface. Connect voltage supply, motor(s) and earth
as shown in the scheme with cables of the proper
diameter. On the mains side, a safety switch with
recommend pre-fuses has to be installed.
Transport and Stock Keeping
Avoid shocks and extreme conditions, stock in origi-
nal packaging.
Airius Europe Ltd

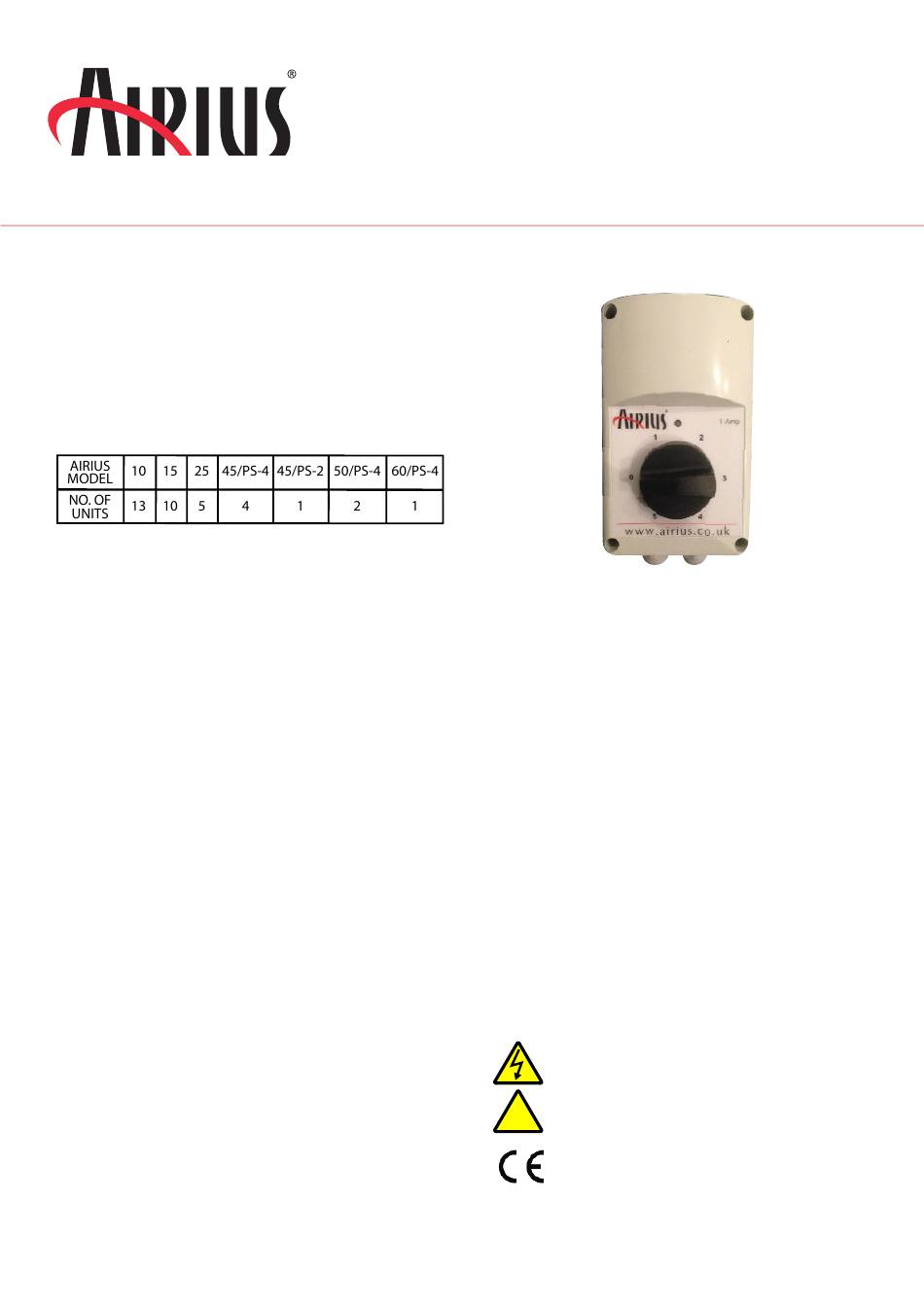

1 AMP controller for Models 10, 15, 25, 45, 50 & 60 - 230v 50/60Hz. 1Ph.
for single phase voltage
FUSE
1.0 FT-1.25 A
Holwell Farm, Cranborne
Dorset BH21 5QP
Airius Speed Controller
Wall Mounted Speed Control Wiring
Warranty
Two years from delivery date against defects in
manufacturing. Any modifications or alterations to
the product relieve the manufacturer of all responsi-
bility. The manufacturer bears no responsibility for
any misprints or mistakes in this data, and modifica-
tions or improvements to the product can be made at
any time after date of publication.
Maintenance
In normal conditions
maintenance-free. If soiled clean with dry or damp-
ish cloth. In case of heavy pollution clean with a
non-aggressive product. In these circumstances the
controller should be disconnected from the mains.
Pay attention that no fluids enter the controller. Only
reconnect the controller to the mains when it is com-
pletely dry.
Motor Protection
It is always recommended to install a proper motor
protection device.
All works may only be carried out by skilled
personnel following the local regulations
and AFTER the controller is completely sepa-
!
rated from the mains. Replace fuse only
with same type and rating.
According to the low voltage directive: 2006/95/EC/
The EMC directive: 2004/108/EC
