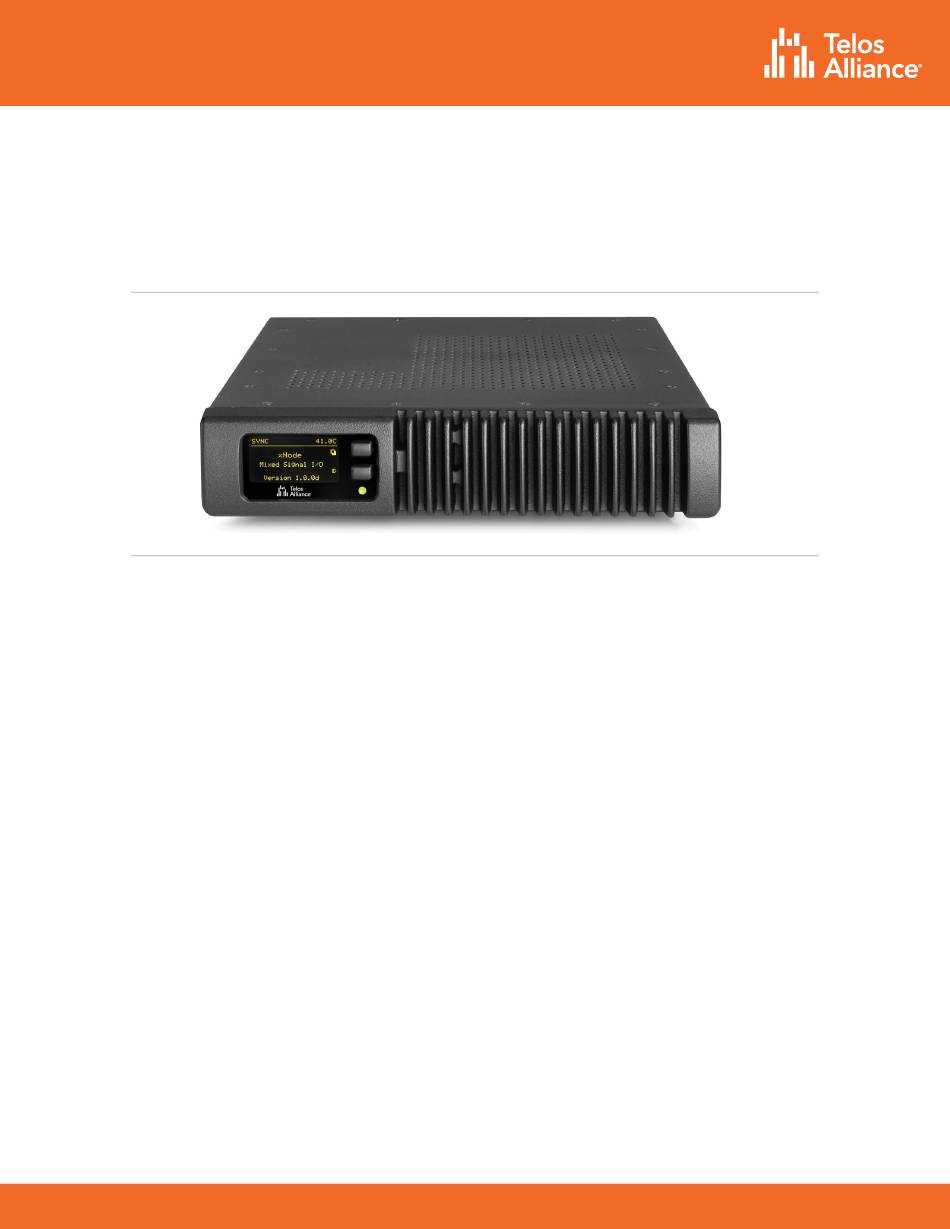

Quick Start Installation Guide

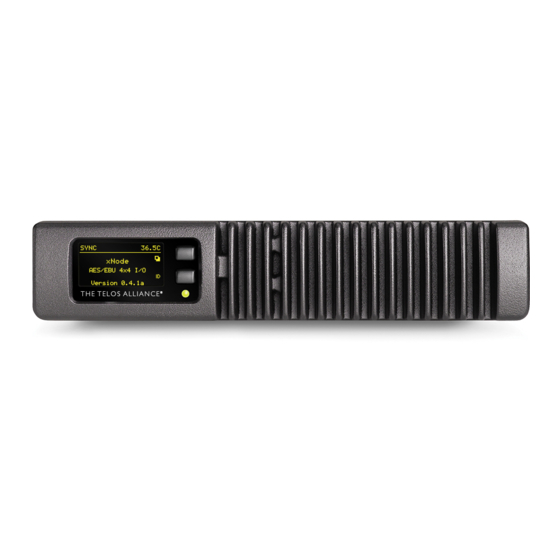

Telos Alliance xNode
The Most Advanced AoIP Interfaces
on the Planet.
THANK YOU FOR PURCHASING THE
TELOS ALLIANCE XNODE
We have made the family of xNode audio and login interfaces easy to set up and
configure. This quick-start installation guide will take you through the basic steps
to configure your new xNode and have you up and running in no time. Before we
get started, let's make sure you have what you need.
Required Equipment, Cables, and Accessories
There are a few additional items required for a successful installation. Check the
list below and make sure you have what you need.
Included items:
• Power Cables
• Rack-mounting* brackets for single- or dual-unit mounting
Items you need to supply:
• PC with network access connected to a monitor and keyboard
• Configured network switch (if configuration will be implemented
over a network)
*Please refer to the full manual located online for detailed instructions to rack-mount your equipment.
2020 TLS Corp. Telos Alliance®. All Rights Reserved. PN: 1490-00149-002 --- QSG xNode
TelosAlliance.com
Advertisement
Table of Contents
Related Manuals for Telos Alliance xNode
Summary of Contents for Telos Alliance xNode
- Page 1 THANK YOU FOR PURCHASING THE TELOS ALLIANCE XNODE We have made the family of xNode audio and login interfaces easy to set up and configure. This quick-start installation guide will take you through the basic steps to configure your new xNode and have you up and running in no time. Before we get started, let’s make sure you have what you need.
- Page 2 ID position then press the top button (C) once to assign an ID value to the xNode. You may assign any number between 1 and 319; each xNode‘s number must be unique. TelosAlliance.com 2020 TLS Corp. Telos Alliance®. All Rights Reserved. PN: 1490-00149-002 --- QSG xNode...
- Page 3 Chapter 2 of the xNode User Manual.) Continue to Source and Destination Configuration The initial set-up of your xNode is complete and ready to be linked to your network and configured to load sources and destinations. Continue to the “Audio Source and Destination Configuration” instructions.
- Page 4 4. Open a web browser and type the automatically assigned IP address of the xNode (10.216.0.101) into the URL field (L). 5. When prompted for authentication (M) enter user name „user“, password is left blank. TelosAlliance.com 2020 TLS Corp. Telos Alliance®. All Rights Reserved. PN: 1490-00149-002 --- QSG xNode...
- Page 5 A popup window (U) will appear listing the sources and their channels that are available on the network. 11. Select the desired source. TelosAlliance.com 2020 TLS Corp. Telos Alliance®. All Rights Reserved. PN: 1490-00149-002 --- QSG xNode...
- Page 6 If you have more questions, call the Telos Alliance 24/7 Support Team at +1 (216) 622-0247, or email us at support@telosalliance.com, we’d be happy to help you out. TelosAlliance.com 2020 TLS Corp. Telos Alliance®. All Rights Reserved. PN: 1490-00149-002 --- QSG xNode...
- Page 7 Quick Start Installation Guide THIS PAGE INTENTIONALLY BLANK TelosAlliance.com 2020 TLS Corp. Telos Alliance®. All Rights Reserved. PN: 1490-00149-002 --- QSG xNode...
- Page 8 TV: support@linearacoustic.com 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com © 2020 TLS Corp. The Telos Alliance®. All Rights Reserved. S20/1/16016 1490-00149-002 --- QUICK START GUIDE: xNode TelosAlliance.com 2020 TLS Corp. Telos Alliance®. All Rights Reserved. PN: 1490-00149-002 --- QSG xNode...
