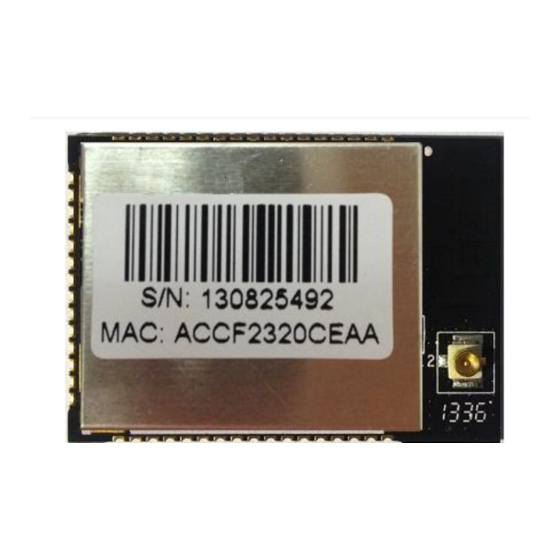

High-Flying HF-LPC100 User Manual

Wi-fi/bluetooth module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

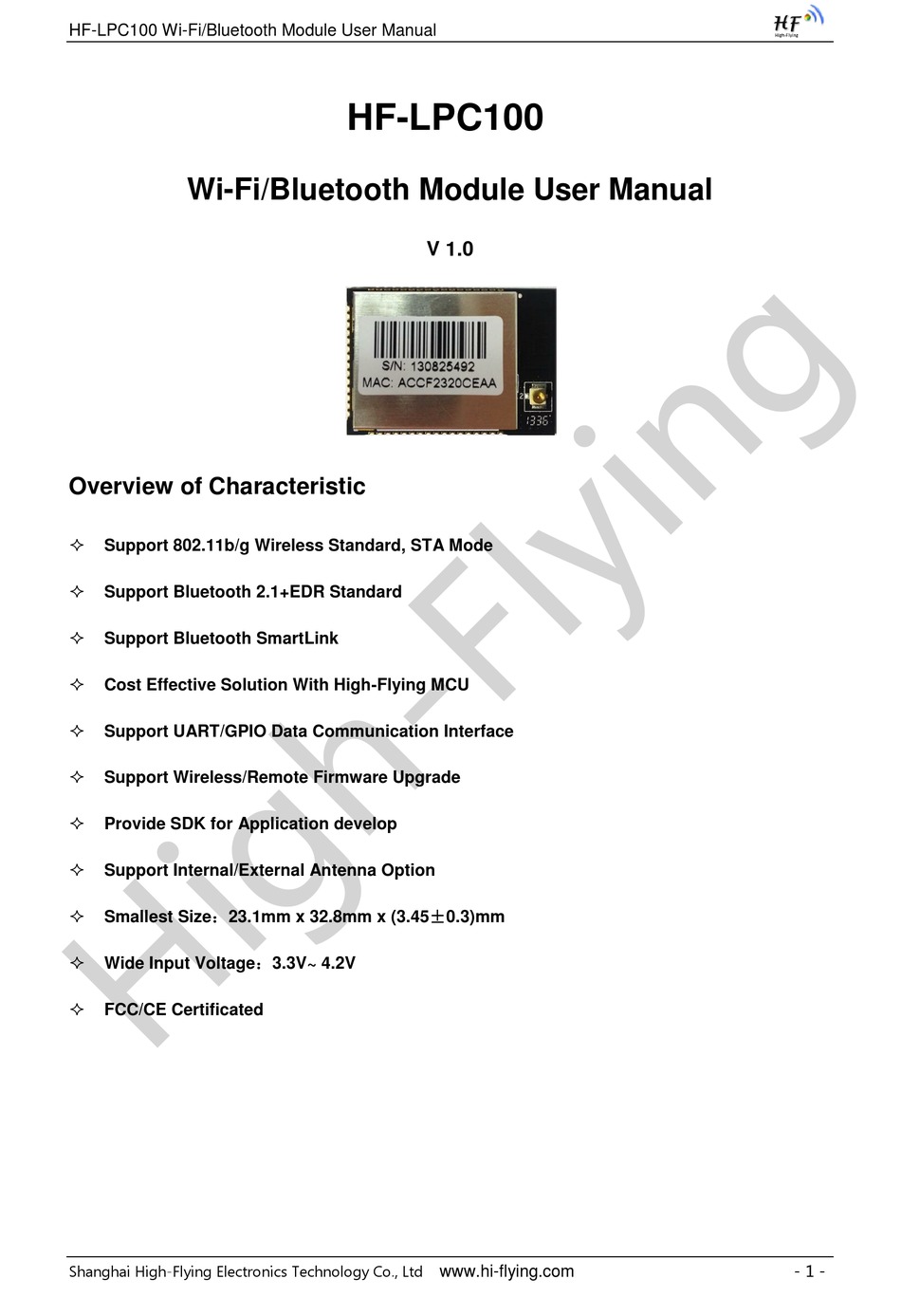

HF-LPC100 Wi-Fi/Bluetooth Module User Manual
Wi-Fi/Bluetooth Module User Manual
Overview of Characteristic
Support 802.11b/g Wireless Standard, STA Mode
Support Bluetooth 2.1+EDR Standard
Support Bluetooth SmartLink
Cost Effective Solution With High-Flying MCU
Support UART/GPIO Data Communication Interface
Support Wireless/Remote Firmware Upgrade
Provide SDK for Application develop
Support Internal/External Antenna Option
Smallest Size：23.1mm x 32.8mm x (3.45±0.3)mm
Wide Input Voltage：3.3V~ 4.2V
FCC/CE Certificated
Shanghai High-Flying Electronics Technology Co., Ltd
HF-LPC100
V 1.0
www.hi-flying.com
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF-LPC100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for High-Flying HF-LPC100

Summary of Contents for High-Flying HF-LPC100

  • Page 1 HF-LPC100 Wi-Fi/Bluetooth Module User Manual HF-LPC100 Wi-Fi/Bluetooth Module User Manual V 1.0 Overview of Characteristic  Support 802.11b/g Wireless Standard, STA Mode  Support Bluetooth 2.1+EDR Standard  Support Bluetooth SmartLink  Cost Effective Solution With High-Flying MCU  Support UART/GPIO Data Communication Interface ...

  • Page 2: Table Of Contents

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual TABLE OF CONTENTS LIST OF FIGURES ........................... 5 LIST OF TABLES ............................ 6 HISTORY ..............................7 PRODUCT OVERVIEW ........................8 1.1. General Description ......................... 8 1.2. Device Features ........................8 1.3. Device Parameters ........................9 1.4.
  • Page 3 HF-LPC100 Wi-Fi/Bluetooth Module User Manual 3.2.2.6. AT+LVER ........................31 3.2.2.7. AT+RELD ........................31 3.2.2.8. AT+FCLR ........................31 3.2.2.9. AT+Z..........................31 3.2.2.10. AT+H .........................31 3.2.2.11. AT+CFGRD .......................31 3.2.2.12. AT+CFGWR ......................32 3.2.2.13. AT+CFGFR ........................32 3.2.2.15. AT+UART ........................32 3.2.2.16. AT+UARTF ........................33 3.2.2.17. AT+UARTFT ......................33 3.2.2.18. AT+UARTFL ......................33 3.2.2.19.
  • Page 4 HF-LPC100 Wi-Fi/Bluetooth Module User Manual 3.2.2.51. AT+NTPEN ........................44 3.2.2.52. AT+NTPTM ........................44 3.2.2.53. AT+NTPSER ......................45 3.2.2.54. AT+WRMID .......................45 3.2.2.55. AT+RLDEN ........................45 3.2.2.56. AT+ASWD .........................45 3.2.2.57. AT+MDCH .........................46 3.2.2.58. AT+TXPWR .......................46 3.2.2.59. AT+SMTLK ........................46 3.2.2.60. AT+LPTIO ........................47 PACKGAE INFORMATION ......................48 4.1. Recommend Reflow Profile ....................48 4.2.

  • Page 5: List Of Figures

    HF-LPC100 Evaluation Kit(TBD) ..................15 Figure 6. Figure 7. HF-LPC100 order information ....................16 HF-LPC100 hardware typical application ................17 Figure 8. Basic HF-LPC100 wireless networking structure ..............19 Figure 9. Figure 10. Double Socket setting view ....................24 HF-LPC100 Default UART parameter ................25 Figure 11.

  • Page 6: List Of Tables

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual LIST OF TABLES Table 1 HF-LPC100 Module Technical Specifications ................ 9 Table 2 HF-LPC100 Pins Definition ....................10 Table 3 Electrical Characteristic ......................12 Table 4 Power Supply & Power Consumption ..................12 Table 5 HF-LPC100 External Antenna Parameter ................14 Table 6 HF-LPC100 Evaluation kit interface description ..............15...

  • Page 7: History

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual HISTORY V 1.0 12-05-2014. First version - 7 - Shanghai High-Flying Electronics Technology Co., Ltd www.hi-flying.com...

  • Page 8: Product Overview

    PRODUCT OVERVIEW 1.1. General Description HF-LPC100 is a embedded Wi-Fi /BT module ,which provide wireless interface to any equipment with a UART or other interface to data transmission. It integrated MAC, baseband processor, RF transceiver with power amplifier in hardware and Wi-Fi/BT protocol and configuration functionality and network TCP/IP stack, in embedded firmware to make a fully self-contained 802.11b/g Wi-Fi solution...

  • Page 9: Device Parameters

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 1.3. Device Parameters Table 1 HF-LPC100 Module Technical Specifications Class Item Parameters Certification FCC/CE Wireless standard 802.11 b/g, 802.15.2 Frequency range 2.412GHz-2.484GHz 802.11b: +16 +/-2dBm (@11Mbps) Wireless Transmit Power 802.11g: +14 +/-2dBm (@54Mbps) Parameters 802.11b: -93 dBm (@11Mbps ,CCK) Receiver Sensitivity 802.11g: -85 dBm (@54Mbps, OFDM)

  • Page 10: Hardware Introduction

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 1.5. Hardware Introduction HF-LPC100 View Figure 1. 1.5.1. Pin Definition Figure 2. HF-LPC100 Pins map Table 2 HF-LPC100 Pins Definition Describtion Net Name Signal Type Comments 1,17,32,48 Ground Power Debug Pin SWCLK I, PD Debug functional pin, No connect if not use.
  • Page 11 HF-LPC100 Wi-Fi/Bluetooth Module User Manual Describtion Net Name Signal Type Comments No connect No connect No connect +3.3V Power DVDD Power No connect No connect No connect No connect No connect No connect No connect No connect No connect No connect...

  • Page 12: Electrical Characteristic

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual Describtion Net Name Signal Type Comments GPIO44,No connect if not use.; Multi-Function nReload I,PU No connect ―Low‖ effective reset input. Module Reset EXT_RESETn I,PU <Remark>: I — input；O — output PU—pull up；PD—pull down； I/O: digital I/O； Power—power supply 1.5.2.

  • Page 13: Mechanical Size

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 1.5.3. Mechanical Size HF-LPC100 physical size （unit: mm）as below: HF-LPC100 Mechanical Dimension Figure 3. HF-LPC100 module PCB symbol size (unit :mm) as below: Figure 4. HF-LPC100 PCB symbol size - 13 Shanghai High-Flying Electronics Technology Co., Ltd...

  • Page 14: On-Board Chip Antenna

    1.5.5. External Antenna HF-LPC100 module supports internal antenna and external antenna(I-PEX) option for user dedicated application. If user select external antenna, HF-LPC100 modules must be connected to the 2.4G antenna according to IEEE 802.11b/g/n standards. The antenna parameter required as table 5...

  • Page 15: Evaluation Kit

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 1.5.6. Evaluation Kit High-Flying provides the evaluation kit to promote user to familiar the product and develop the detailed application. The evaluation kit shown as below, user can connect to HF-LPC100 module with the RS-232 UART, RS485, USB (Internal USB to UART convertor) or Wireless port to configure the parameters, manage the module or do the some functional tests.

  • Page 16: Order Information

    Reset button Press the button over 3 seconds to restore factory nReload setting 1.5.7. Order Information Based on customer requirement, HF-LPC100 can support difference variants and physical type ,detail as below: HF-LPC100 order information Figure 7. - 16 Shanghai High-Flying Electronics Technology Co., Ltd...

  • Page 17: Typical Application

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 1.6. Typical Application 1.6.1. Hardware Typical Application HF-LPC100 hardware typical application Figure 8. <Notes>: nReset- module reset signal. Input, low level effective. There is pull-up resister internal and no external pull-up required. When module power up or some issue happened, MCU need assert nRST signal ―0‖...

  • Page 18: Bluetooth Sonic Configuration

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual User can de-assert nReload signal ―0‖ more than 3s through button or MCU pin, then release, module will restore to factory default configuration and re-start boot up process.. If nReload function not required, can leave this pin open.

  • Page 19: Function Description

    Basic HF-LPC100 wireless networking structure 2.2. Work mode：Transparent Transmission Mode HF-LPC100 module support serial interface transparent transmission mode. The benefit of this mode is achieves a plug and play serial data port, and reduces user complexity furthest. In this mode, user should only configure the necessary parameters. After power on, module can automatically connect to the default wireless network and server.

  • Page 20: Uart Frame Scheme

    Module will check the intervals between any two bytes when receiving UART data. If this interval time exceeds defined value (50ms default), module will think it as the end of one frame and transfer this free-frame to Wi-Fi port, or HF-LPC100 will receive UART data until 1000 bytes, then transfer 1000 bytes frame to Wi-Fi port.

  • Page 21: Bluetooth Function

    Compared to traditional UART upgrade, HF-LPC100 support more flexible and convenient method to realize the update of firmware and application. HF-LPC100 module also support upgrade from remote HTTP server, keep module connects to AP router before execute remote HTTP upgrade. Remote upgrade have two methods: Direct Download and Upgrade, Configure File Based Upgrade.
  • Page 22 HF-LPC100 Wi-Fi/Bluetooth Module User Manual Notes: please contact with high-flying technical people before upgrade firmware, or maybe damage the module and can‘t work again. - 22 Shanghai High-Flying Electronics Technology Co., Ltd www.hi-flying.com...

  • Page 23: Gpio/Pwm Function(Tbd)

    Notes: Please refer to Appendix B for details. 2.7. Double SOCKET Communication Function HF-LPC100 WI-FI module support double socket communication, the Socket B function is disabled by default. After the module boot-up, send command ―AT+SOCKB‖ to set the connection parameter, send command ―AT+TCPDISB=on‖...

  • Page 24: Figure 10. Double Socket Setting View

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual Double Socket setting view Figure 10. - 24 Shanghai High-Flying Electronics Technology Co., Ltd www.hi-flying.com...

  • Page 25: At Instruction Introduction

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 3. AT INSTRUCTION INTRODUCTION 3.1. Configuration Mode When HF-LPC100 power up, it will default works as transparent transmission mode, then user can switch to configuration mode by serial port command. The UART default parameters setting as below figure:...

  • Page 26: At+ Instruction Set Overview

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual When user input ―+++‖ (No ―Enter‖ key required), the UART port will display feedback information ―a‖, and not display input information‖+++‖ as above UART display. ―+++‖ and ―a‖ should be input in a certain period of time to make the module switch to configuration mode.

  • Page 27: At+ Instruction Set

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  < >: Means the parts must be included  [ ]: Means the optional part  Command Message AT+<CMD>[op][para-1,para-2,para-3,para-4…]<CR>  AT+: Prefix of command message;  CMD: Command string;  [op]: Symbol of command operator, ―=‖...
  • Page 28 HF-LPC100 Wi-Fi/Bluetooth Module User Manual instruction Description WMODE Set/Query Wi-Fi work mode (AP/STA/APSTA) ENTM Set module into transparent transition mode TMODE Set/Query module data transfer mode Query module ID information Query module software version information LVER Query module detailed software version...

  • Page 29: At+E

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual instruction Description WSKEY Set/Query STA security parameters WSSSID Set/Query associated AP SSID parameters Set/Query STA‘s network parameters WANN Set/Query STA‘s MAC address WSMAC BTMAC Set/Query Bluetooth Mac address parameter WSKEY Set/Query STA security parameters WSSSID Set/Query associated AP SSID parameters Set/Query STA‘s network parameters...

  • Page 30: At+Entm

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  on：open echo  off：close echo When module firstly switch from transparent transmission to configuration mode, show back status is open, input ―AT+E‖ to close show back function, input ―AT+E‖ again to open show back function.

  • Page 31: At+Lver

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual +ok=<ver><CR><LF><CR><LF>  Parameter :  ver: module software version information 3.2.2.6. AT+LVER  Function: Query module detailed software version information  Format : AT+LVER<CR> +ok=<ver><CR><LF><CR><LF>  Parameter  ver: module software details version information 3.2.2.7. AT+RELD ...

  • Page 32: At+Cfgwr

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual +ok=<config><CR><LF><CR><LF>  Parameter  config： the first two bytes means the length of read configure parameter. 3.2.2.12. AT+CFGWR  Function : bulk write user configure parameter  Format  Set operation AT+CFGWR=<config><CR> +ok<CR><LF><CR><LF>  Parameter ...

  • Page 33: At+Uartf

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  data_bits：   stop_bits：   parity：  NONE  EVEN   flowctrl：（CTSRTS）  NFC：no hard ware flow control  FC：hard ware flow control 3.2.2.16. AT+UARTF  Function :open/close UART auto-frame function ...

  • Page 34: At+Uartte

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  Set operation AT+UARTFL=<len ><CR> +ok<CR><LF><CR><LF>  Parameter  len：Range 8 ~1000; Unit: Byte. Auto-frame trigger length; 3.2.2.19. AT+UARTTE  Function: Set/Query UART free-frame trigger time between two bytes;  format  query operation AT+UARTTE<CR>...

  • Page 35: At+Netp

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  Setting AT+PING=<IP_address><CR> +ok=<sta><CR><LF><CR><LF>  Parameter  sta：feedback result  Success  Timeout  Unknown host 3.2.2.23. AT+NETP  Function :set/query network protocol parameter. The change of TCP port and address of TCP clients valid immediately, the other changes is valid after reset ...

  • Page 36: At+Tcplk

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual Any data received by each socket will send to serial directly, the data received from serial will send out by each socket in sequence. 3.2.2.25. AT+TCPLK  Function : query if TCP link already build-up ...

  • Page 37: At+Sockb

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  On, TCP link close  off，TCP link on When setting, ―off‖ means close TCP link. After finish this command, module disconnect TCP link and not connect again. ―On‖ means open TCP link. After finish this command, module re- connect TCP server right away.

  • Page 38: At+Tcptob

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 3.2.2.30. AT+TCPTOB  Function: set/query SOCKB timeout, setting is valid after reset  Format  Query operation AT+TCPTOB<CR> +ok=<time><CR><LF><CR><LF>  Set operation AT+TCPTOB=<time ><CR> +ok<CR><LF><CR><LF>  Parameter:  Time： TCP timeout time  <= 600：600s ...

  • Page 39: At+Rcvb

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual AT+SNDB=<data_lenth ><CR> +ok<CR><LF><CR><LF>  Parameter  data_lenth：the length of send data, range :1~1000 byte The UART port will wait 3 seconds for input after this command is succeed and feedback ‖>‖. The data received from UART port is sent to SOCKB. If the interval of two bytes is more than 10ms, the data will be sent instantly.

  • Page 40: At+Wann

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  WPA2PSK  encry： encryption algorithm  NONE: ―auth=OPEN‖ effective  WEP-H:―auth=OPEN‖ or ―SHARED‖ effective ，HEX type  WEP-A:―auth=OPEN‖ or ―SHARED‖ effective ，ASCII type  TKIP: ‖auth= WPAPSK or WPA2PSK‖ effective  AES: ‖auth= WPAPSK or WPA2PSK‖ effective ...

  • Page 41: At+Wslk

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  Query operation AT+BTMAC<CR> +ok=<mac_address><CR><LF><CR><LF>  Set operation AT+BTMAC=<code,mac_address><CR> +ok<CR><LF><CR><LF>  Parameter  code：security code  8888 （default value）。  mac_address： Bluetooth MAC address e.g.: ACCF23FF1234 3.2.2.40. AT+WSLK  Function :query STA wireless link status ...

  • Page 42: At+Wsdns

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 3.2.2.43. AT+WSDNS  Function: set/query STA static DNS server address  Format ：  Query operation AT+WSDNS<CR> +ok=<address><CR><LF><CR><LF>  Set operation AT+WSDNS =<address><CR> +ok<CR><LF><CR><LF>  Parameter  address：STA‘s DNS server address, effective immediately 3.2.2.44. AT+UPURL ...

  • Page 43: At+Logport

     log: feedback the status of remote upgrade Note: After execute this command, the HF-LPC100 will automatic start upgrade base on the setting of UPURL, UPFILE like URL address and configure file name. after upgrade succeeded , module will restart automatically 3.2.2.49.

  • Page 44: At+Ntprf

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual +ok<CR><LF><CR><LF>  parameter  ret:  normal：normal work  mode:  normal：normal mode  standby：Wi-Fi shutdown mode (reserved function) 3.2.2.50. AT+NTPRF  Function: set/query time calibration interval  format  query operation AT+NTPRF<CR> +ok=<num><CR><LF><CR><LF> ...

  • Page 45: At+Ntpser

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  time：network time, for example: 2013-10-9 16:10:42 Wed，if it shows Not Available means that the time calibration function is not enabled or the module doesn‘t connect to the internet. 3.2.2.53. AT+NTPSER  Function： set /query NTP server IP address ...

  • Page 46: At+Mdch

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual +ok=<aswd><CR><LF><CR><LF>  set operation AT+ASWD =<aswd><CR><LF><CR><LF>  Parameter  aswd: Wi-Fi Configuration Password (within 20 characters).，default is HF- A11ASSISTHREAD 3.2.2.57. AT+MDCH  Function: set Wi-Fi auto switch function. Setting is valid after reset.  Format ...

  • Page 47: At+Lptio

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual AT+SMTLK<CR> SmartLink is a One-Key config function. Config the module connecting to router easily. After start SmartLink function , the module work in SmartLink status and nLink LED is fast flashing waiting for APP to push information. See the Appendix for more details.

  • Page 48: Packgae Information

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 4. PACKGAE INFORMATION 4.1. Recommend Reflow Profile Reflow soldering profile Figure 14. Table 12 reflow soldering parameter item Temp (℃) time(sec) 220 ℃ above Reflow time 35~55sec Peak temp Max 260℃ Note: 1. Recommend to supply N2 for reflow oven.

  • Page 49: Shipping Information

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual 4.3. Shipping Information TAPE SIZE:340*340*70 mm SIZE :340*340*350 mm（inside） Shipping information Figure 15. Note : 1 tape = 500pcs 1 box= 5 tape = 5 * 500pcs= 2500pcs - 49 Shanghai High-Flying Electronics Technology Co., Ltd...

  • Page 50: Apeendix A: Hard Reference Design

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual APEENDIX A: HARD REFERENCE DESIGN Detailed HF-LPC100 Evluation Board design source files, pls access High-Flying web download page or contact with High-Flying technical support people to acquire. - 50 Shanghai High-Flying Electronics Technology Co., Ltd...

  • Page 51: Appendix B: Control Gpio、Pwm Function With Network Command(Tbd)

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual APPENDIX B: CONTROL GPIO、PWM FUNCTION WITH NETWORK COMMAND(TBD) Send command data to control module‘s GPIO, PWM port after make network connection with TCP or UDP protocol.(module must at PWM mode) The status of GPIO won‘t be changed if the module is reset B.1 Network Command...
  • Page 52 HF-LPC100 Wi-Fi/Bluetooth Module User Manual  value：GPIO channel value  GPIO NOK： command failed B.1.3 GPIO <channel> SET  Function : save GPIO channel value  Parameter ：  channel：GPIO channel number, can be 11、12、15、18、20、23(GPIO pin umber)  return data ...
  • Page 53 HF-LPC100 Wi-Fi/Bluetooth Module User Manual B.1.5 PWM <channel> GET  Function: query PWM channel output value  Parameter  channel：PWM channel number, can be11、12、18、20(GPIO pin number)  return data  +ok=<frequency duty>  frequency：PWM channel frequency  duty：PWM channel duty ...

  • Page 54: Hexadecimal Network Command

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual B.1.6 PWM <channel> SET  Function : save PWM channel output value  Parameter  channel：PWM channel number, can be 11、12、18、20(GPIO pin number)  return data  PWM OK：command succeed  PWM NOK：command failed B.2 Hexadecimal Network Command Send hexadecimal data to quickly read module‘s I/O status, send area and receive area must send...
  • Page 55 HF-LPC100 Wi-Fi/Bluetooth Module User Manual B.2.3 Read All PWM Channel Frequency  Send Data:【30】:  Return Data:【b0 <value1 value2 value3 value4 value5 value6 value7 value8>】  value1: High byte of PWM Channel 0(GPIO11) frequency  value2: Low byte of PWM Channel 0(GPIO11) frequency ...
  • Page 56 HF-LPC100 Wi-Fi/Bluetooth Module User Manual  value4: Duty of PWM Channel 3 B.2.6 Write All PWM Channel Duty  Send Data:【24 <value1 value2 value3>】:  Return Data:【a4 <value1 value2 value3>】  value1: Duty of PWM Channel 0  value2: Duty of PWM Channel 1 ...

  • Page 57: Appendix C: Http Protocol Transfer

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual APPENDIX C: HTTP PROTOCOL TRANSFER HF-LPB100 module support http data transfer in command mode. If any detailed HTTP protocol, contact us and we may support customization. C.1. HTTP AT Command C.1.1. AT+HTTPURL  Function:Set /Query HTTP server IP address and Port Number.

  • Page 58: At+Httpcn

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual  Parameters:  Path：Max length is 50 bytes. C.1.4. AT+HTTPCN  Function:Set/Query Connection of HTTP protocol header  Format:  Query Operation AT+HTTPCN<CR> +ok=<Connection><CR><LF><CR><LF>  Set Operation AT+HTTPCN=<Connection><CR> +ok<CR><LF><CR><LF>  Parameters:  Connection：Max length is 20 bytes.
  • Page 59 HF-LPC100 Wi-Fi/Bluetooth Module User Manual If send ―AT+HTTPDT‖, the data packet will be sent as the following instance including the two new line: POST /abcd HTTP/1.1 Connection:keep-alive User-Agent:lwip1.3.2 Content-Length:0 Host:192.168.0.127:8999 If send AT+HTTPDT=abcd, the data packet will be sent as the following instance: POST /abcd HTTP/1.1...

  • Page 60: Appendix D: Bluetooh One-Key Configuration

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual APPENDIX D: BLUETOOH ONE-KEY CONFIGURATION  APP download IOS /Android IOS APP download address: http://www.pgyer.com/bNwD Android APP download address: http://www.pgyer.com/5zg5 Step 1：after installation, user can find below icon shows on smart terminal Step 2： press 【nReload】on LPC100 module to start Bluetooth one-key configuration.
  • Page 61 HF-LPC100 Wi-Fi/Bluetooth Module User Manual Note: module‘s default Bluetooth name is BTFFFF(BT+ last four byte of MAC address)， user can revise MAC address via AT+BTMAC=8888,XXXXXXXXXXXX. Step 4：click APP icon and enter the main page SSID: the mobile connected router’s SSDI Password : router’s password...
  • Page 62 HF-LPC100 Wi-Fi/Bluetooth Module User Manual Step 5： press APP【开始连接】(start connect) button ，sending the configuration information to module. After configuration, module will restart automatically and switch to STA module to connect router .  nLink light stays on, indicate the module already connected to router ...
  • Page 63 HF-LPC100 Wi-Fi/Bluetooth Module User Manual 3、High Flying Wi-Fi module recommended hardware connection  nReload：press this button when use smart configure  nLink： link status indicator Shanghai High-Flying Electronics Technology Co., Ltd www.hi-flying.com - 63 -...

  • Page 64: Appendix E: Hf-Lpx Series Module Pin Compatible Table

    HF-LPC100 Wi-Fi/Bluetooth Module User Manual APPENDIX E: HF-LPX SERIES MODULE PIN COMPATIBLE TABLE Shanghai High-Flying Electronics Technology Co., Ltd www.hi-flying.com - 64 -...

  • Page 65: Appendix F: Contact Information

    <END> © Copyright High-Flying, May, 2011 The information disclosed herein is proprietary to High-Flying and is not to be used by or disclosed to unauthorized persons without the written consent of High-Flying. The recipient of this document shall respect the security status of the information.
