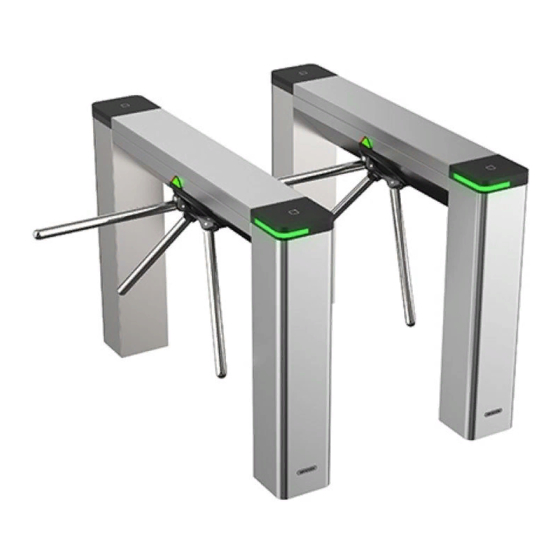

DS-K3G501 Series Tripod Turnstile
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K3G501 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K3G501 Series

Summary of Contents for HIKVISION DS-K3G501 Series

  • Page 1 DS-K3G501 Series Tripod Turnstile Quick Start Guide...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K3G501 Series Tripod Turnstile Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-K3G501 Series Tripod Turnstile Quick Start Guide under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 6 DS-K3G501 Series Tripod Turnstile Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 7 DS-K3G501 Series Tripod Turnstile Quick Start Guide Cautions: • Stainless steel may be corroded in some circumstances. You need to clean and care the device by using the stainless steel cleaner. It is suggested to clean the device every month.
  • Page 8 DS-K3G501 Series Tripod Turnstile Quick Start Guide Available Models Product Name Model Tripod Turnstile DS-K3G501 Scan the QR code to get User Manual of Tripod Turnstile. Note that mobile data charges may apply if Wi-Fi is unavailable. Figure 1-1 QR Code...

  • Page 9: Table Of Contents

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Contents Chapter 1 Overview ........................1 1.1 Introduction ........................... 1 1.2 Main Features ........................1 Chapter 2 Installation ......................... 3 2.1 Disassemble Pedestals ......................3 2.2 Install Pedestals ........................3 Chapter 3 Wiring ........................6 3.1 Components Introduction ......................
  • Page 10 DS-K3G501 Series Tripod Turnstile Quick Start Guide 5.2 Activate Device via Client Software ..................23 Appendix A. Tips for Scanning Fingerprint ................25 Appendix B. DIP Switch ......................27 B.1 DIP Switch Description ......................27 B.2 DIP Switch Corresponded Functions ..................27 Appendix C.

  • Page 11: Chapter 1 Overview

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Chapter 1 Overview 1.1 Introduction The tripod turnstile is designed to detect unauthorized entrance or exit. By adopting the turnstile integratedly with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc.
  • Page 12 DS-K3G501 Series Tripod Turnstile Quick Start Guide • Barrier is in free status when powered down. People can pass through the lane along single/both singe and double directions • Fire alarm passing When the fire alarm is triggered, the barrier will be dropped down automatically for emergency evacuation •...

  • Page 13: Chapter 2 Installation

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Chapter 2 Installation 2.1 Disassemble Pedestals Before installation, you should use the key to open the pedestals. View the pictures below to find the lock holes. Figure 2-1 Lock Holes 2.2 Install Pedestals...
  • Page 14 DS-K3G501 Series Tripod Turnstile Quick Start Guide Face recognition terminal installed: If the installation area is too close to the wall, make sure the distance between the pedestal and the wall should be more than 130 mm, or you cannot open the pedestal's top panel.
  • Page 15 DS-K3G501 Series Tripod Turnstile Quick Start Guide 1. Prepare for the installation tools, check the components, and prepare for the installation base. 2. Draw a central line on the installation surface of the left or right pedestal. 3. Draw other parallel lines for installing the other pedestals.

  • Page 16: Chapter 3 Wiring

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Chapter 3 Wiring 3.1 Components Introduction By default, basic components of the turnstile are connected well. The turnstile supports wiring the AC electric supply for the whole system's power supply. Note The voltage fluctuation of the electric supply is between 100 VAC and 220 VAC, 50 to 60 Hz.

  • Page 17: General Wiring

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Note • The cable bare part should be no more than 8 mm. If possible, wear an insulation cap at the end of the bare cable. Make sure there’s no bare copper or cable after the wiring.

  • Page 18: Terminal Description

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Figure 3-2 Wire General Device Note • The suggested inner diameter of the low voltage conduit is larger than 30 mm. • If the face recognition module are required to be connected on the left lane, you should increase the conduit diameter or bury another conduit for the external cables.
  • Page 19 DS-K3G501 Series Tripod Turnstile Quick Start Guide Figure 3-3 Main Control Board Diagram Table 3-1 Table of Main Control Board Terminal Description Main Control Board Terminal Description 24 V Power Input +24 V Power Input Grounding Wiegand Card Indicator of Card Reader Control Output (Invalid Card...
  • Page 20 DS-K3G501 Series Tripod Turnstile Quick Start Guide Main Control Board Terminal Description Wiegand Head Read Data Input Data0 Grounding RS-485 Interface (In Grounding the BUS) RS-485 B- Connect to Card Reader RS485- RS-485 B+ Connect to Card Reader RS485+ Grounding...
  • Page 21 DS-K3G501 Series Tripod Turnstile Quick Start Guide Main Control Board Terminal Description Alarm Output1/ NO/NC1 Alarm Output Relay 1 (Dry Contact) Alarm Output 2 COM1 NO/NC2 Alarm Output Relay 2 (Dry Contact) COM2 Network Interface Network Accessing Note • The alarm input hardware interface is normally open by default. So only the normally open signal is allowed.

  • Page 22: Main Control Board Serial Port Id Description

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Terminal Group Terminal Name Color Description Fan Power Terminal 12_FS Connect to Fan Group (Connected) Black Grounding Card Reader Terminal 12 V Power Terminal Group (Entrance) 485/232+ Yellow Connect to Card Reader RS-485+...
  • Page 23 DS-K3G501 Series Tripod Turnstile Quick Start Guide Figure 3-4 Main Control Board According to the picture above, the serial port 1 to 6 refers to the RS-485/RS-232 interface. You can use the jumper cap to change the communication type. The main control board descriptions are as follows: Serial Port 1 RS-485 communication interface.

  • Page 24: Rs-485 Wiring

    DS-K3G501 Series Tripod Turnstile Quick Start Guide The serial port has a fixed RS-232 communication mode. It has no jumper cap and cannot change the communication mode. It can connect QR code scanner. 3.4.3 RS-485 Wiring Note • There are four RS-485 interfaces, which are for connecting ID card reader, IC card reader, QR code scanner, fingerprint and card reader, card recycler, text screen, fingerprint reader, and face recognition terminal.

  • Page 25: Rs-232 Wiring

    DS-K3G501 Series Tripod Turnstile Quick Start Guide 3.4.4 RS-232 Wiring Note • The RS-232 interfaces can connect QR code scanner, card recycler, and text screen. • For details about text screen, see Configuring Screen Parameters in User Manual of iVMS-4200 AC Client Software.

  • Page 26: Wiegand Wiring

    DS-K3G501 Series Tripod Turnstile Quick Start Guide 3.4.5 Wiegand Wiring Note Connect the OK/ERR/BZ if the access controller should control the LED and buzzer of the Wiegand card reader. 3.4.6 Barrier Control Wiring By default, the barrier has connected with the main control board. If possible, the device can connect with a third party control board to control the third party barriers.
  • Page 27 DS-K3G501 Series Tripod Turnstile Quick Start Guide Entering Wiring Exiting Wiring...

  • Page 28: Alarm Output Wiring

    DS-K3G501 Series Tripod Turnstile Quick Start Guide 3.4.7 Alarm Output Wiring Note For details about changing the relay output status via the jumper cap, see Alarm Relay Output Mode (NO/NC) . 3.4.8 Fire Alarm Module Wiring You can view the fire alarm module wiring diagram.

  • Page 29: Chapter 4 Device Settings

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Chapter 4 Device Settings You can also set the turnstile to passing mode and memory mode, pair the keyfob, initialize the hardware, switching between RS-485 communication mode and RS-232 communication mode, and view relay output NO/NC diagram by setting the DIP switch on the main control board.

  • Page 30: Initialize Device

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Note • You can also pair the keyfob via the client software. For details, see Managing Keyfob in User Manual of iVMS-4200 AC Client Software. • Only one turnstile can pair the keyfob. If multiple turnstiles are in the pairing mode, the keyfob will select only one of them to pair.

  • Page 31: Switch To Rs-485/Rs-232 Mode

    DS-K3G501 Series Tripod Turnstile Quick Start Guide 4.3 Switch to RS-485/RS-232 Mode Take the Serial Port 4 and on the main control board as an example. If the Jumper cap's position is like the picture displayed below. (The black part is the jumper cap.) The serial port is in RS-485 communication mode.

  • Page 32: Chapter 5 Activation

    • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/en/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 33: Activate Device Via Client Software

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 34 DS-K3G501 Series Tripod Turnstile Quick Start Guide three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 35: Appendix A. Tips For Scanning Fingerprint

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 36 DS-K3G501 Series Tripod Turnstile Quick Start Guide Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another...

  • Page 37: Appendix B. Dip Switch

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Appendix B. DIP Switch B.1 DIP Switch Description The DIP switch is on the master lane control board. No.1 to No 8 is from the low bit to the high bit. When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off. If you set the DIP switch like the figure displayed below, its binary value is 00001100, and its decimal value is 12.
  • Page 38 DS-K3G501 Series Tripod Turnstile Quick Start Guide Device Mode Function Decimal Value Binary Value Free Bi-​ d irection 0011 Free Entrance and 0100 Controlled Exit Free Entrance and 0101 Prohibit Exit Prohibited Bi- 0110 direction Prohibit Entrance 0111 and Controlled...

  • Page 39: Appendix C. Event And Alarm Type

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Appendix C. Event and Alarm Type Event Alarm Type Passing Timeout None...

  • Page 40: Appendix D. Table Of Audio Index Related Content

    DS-K3G501 Series Tripod Turnstile Quick Start Guide Appendix D. Table of Audio Index Related Content Index Content Authenticated. Card No. does not exist. Card No. and fingerprint mismatch. Passing timeout. No permissions. Authentication time out. Authentication failed. Expired card.

  • Page 41: Appendix E. Communication Matrix And Device Command

    Figure E-1 QR Code of Communication Matrix Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices.
  • Page 42 DS-K3G501 Series Tripod Turnstile Quick Start Guide Figure E-2 Device Command...
  • Page 43 UD18732B...
