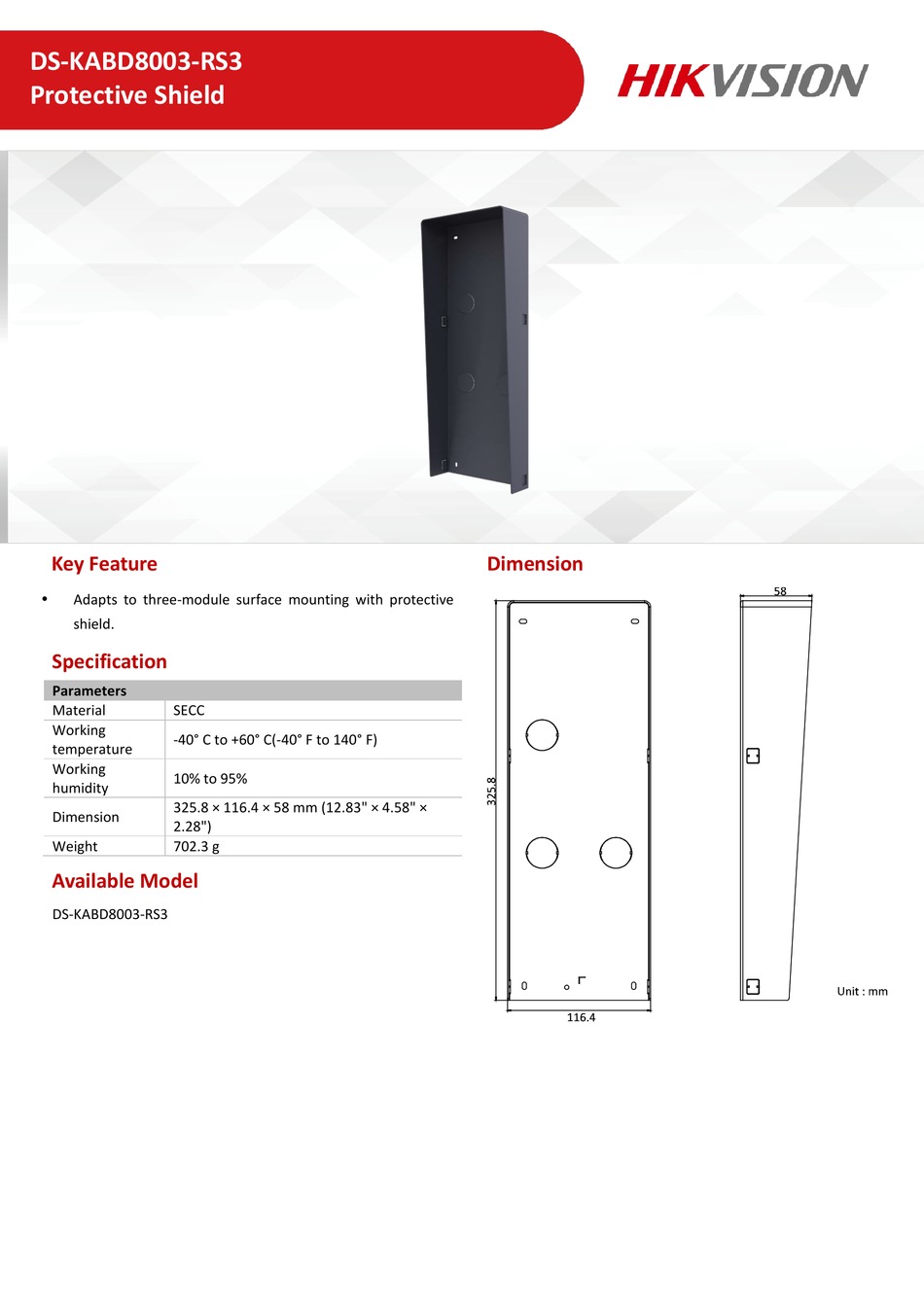

DS-KABD8003-RS3
Protective Shield

Key Feature

Adapts to three-module surface mounting with protective
shield.

Specification

Parameters
Material
SECC
Working
-40° C to +60° C(-40° F to 140° F)
temperature
Working
10% to 95%
humidity
325.8 × 116.4 × 58 mm (12.83" × 4.58" ×
Dimension
2.28")
Weight
702.3 g
Available Model
DS-KABD8003-RS3
Dimension

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KABD8003-RS3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIKVISION DS-KABD8003-RS3

  • Page 1 DS-KABD8003-RS3 Protective Shield Key Feature Dimension  Adapts to three-module surface mounting with protective shield. Specification Parameters Material SECC Working -40° C to +60° C(-40° F to 140° F) temperature Working 10% to 95% humidity 325.8 × 116.4 × 58 mm (12.83" × 4.58" ×...
  • Page 2 Installation 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm. 2.
