Doc No.:DH/QP-03-13-DH-EPC- □
Please read this
instruction manual
before use!

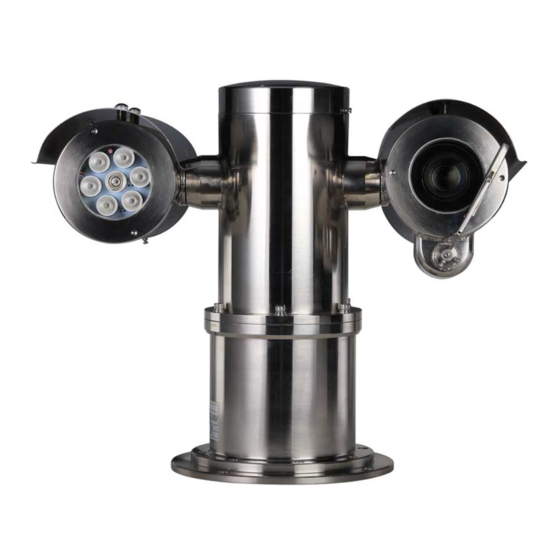

Explosion-Proof Integrated PTZ & Camera
ZHEJIANG DAHUA SYSTEM ENGINEERING CO.,LTD.
Explosion-proof Integrated PTZ & Camera Ver: 1.1 2018.1.10
Ex marking:
Reference standards:
DH-EPC□-PTZ-□
Instruction Manual
Ⅱ2G Ex db op is ⅡC T6 Gb
2614
Ⅱ2D
Ex tb op is ⅢC T80ºC Db(DH-EPC□-PTZ-IR)
2614
Ⅱ2G Ex db ⅡC T6 Gb
Ⅱ2D Ex tb ⅢC T80ºC Db(
EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-28: 2015,
EN60079-31:2014
IEC60079-0:2011, IEC60079-1:2014, IEC60079-28: 2015,
IEC60079-31:2013
)
DH-EPC
-PTZ
□
Advertisement
Table of Contents
Related Manuals for Dahua DH-EPC PTZ Series
Summary of Contents for Dahua DH-EPC PTZ Series
- Page 1 Ⅱ2G Ex db ⅡC T6 Gb before use! Ⅱ2D Ex tb ⅢC T80ºC Db( DH-EPC -PTZ □ Reference standards: EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-28: 2015, EN60079-31:2014 IEC60079-0:2011, IEC60079-1:2014, IEC60079-28: 2015, IEC60079-31:2013 DH-EPC□-PTZ-□ Explosion-Proof Integrated PTZ & Camera Instruction Manual ZHEJIANG DAHUA SYSTEM ENGINEERING CO.,LTD.
- Page 2 Thank you for choosing our Ex products！ Please read this Instruction Manual carefully before installation and operation of this product, following the instructions and keep this instruction manual properly. Copyright © 2017 Zhejiang Dahua System Engineering Co., LTD. All right reserved.
-
Page 3: Quality Guarantee
Dahua. Dahua remains the right to modify the content and technical specifications of the product in this Instruction Manual without any form of notification, to provide the newest and most advanced product. - Page 4 Explosion-proof Integrated PTZ & Camera-Instruction Manual or creepage. Please operate the product according to the requirements in this Instruction Manual; Ensure this product is always used in environment with atmosphere pressure, ambient temperature and relative humidity specified in Chapter 1.6; ...
- Page 5 Explosion-proof Integrated PTZ & Camera-Instruction Manual Please read this Instruction Manual carefully before installation and operation of this product. The safe service period is 5 years after date of manufacture, see nameplate of the date of manufacture. Please read and understand associate knowledge, safety notices and cautions before put into service.
- Page 6 Explosion-proof Integrated PTZ & Camera-Instruction Manual for the plug, socket and joint out from devices. 4. Service condition requirements Please do not focus the camera to hard light (such as lamp or sunlight), which will cause too bright of the image, it’s not malfunction but it does will affect the duration of the CCD (or CMOS).
- Page 7 Explosion-proof Integrated PTZ & Camera-Instruction Manual to avoid the camera suffering radiation of laser beam. 6. Environmental protection For components of the products made by our company may pollute the environment, such as PCB, electrical elements, plastic and lubricant, collection and control measurement shall be taken in maintenance and scrapping of the products.
- Page 8 Explosion-proof Integrated PTZ & Camera-Instruction Manual Ex structure instruction We have made adequate consideration in flameproof enclosure design of the explosion-proof camera to prevent explosive gases getting into the inner volume, the explosion inside the enclosure cannot cause the explosion of the external explosive gases. We ensure the explosion-proof performance by strengthen enclosure the strength, adjust the length and gap of the joint of associate components and limit the maximum surface temperature.
- Page 9 Explosion-proof Integrated PTZ & Camera-Instruction Manual De-energize the product, holding the bottom part to move it, no force on the sunshade, screen wiper, base; no dragging or knocking allowed. DH-EPC□-PTZ-IR DH-EPC□-PTZ When the product is energized: it’s NOT allowed to open, move, knock or drag this product.
-
Page 10: Table Of Contents
Explosion-proof Integrated PTZ & Camera-Instruction Manual Content Copyright Statement......................I Quality Guarantee......................I Security Assurance......................I Notice..........................I 1. General......................... 1 1.1. Specification......................1 1.2. Characters........................ 2 1.3. Scope.........................2 1.4. Mechanical parameters..................2 1.5. Electrical parameters....................3 1.6. Service condition..................... 4 1.7. Electrical safety (in normal atmosphere)............. 4 1.8. -
Page 11: General
Explosion-proof Integrated PTZ & Camera-Instruction Manual 1. General DH-EPC□-PTZ-□ Explosion-proof Integrated PTZ & Camera (hereinafter referred to as camera) is a new generation of explosion-proof monitoring device, it adopts advanced manufacturing process, with a mature quality management system as a guarantee, the product quality, performance and appearance are in leading position. -
Page 12: Characters
Explosion-proof Integrated PTZ & Camera-Instruction Manual Ⅱ2D Ex tb op is ⅢC T80℃ Db(DH-EPC□-PTZ-IR) 2614 Ⅱ2G Ex db ⅡC T6 Gb Ⅱ2D Ex tb ⅢC T80℃ Db(DH-EPC□-PTZ) Camera type: HD network Camera 1.2. Characters This camera consists of HD camera and universal pan and tile, it is integrated a variety of communication protocols and speed, it plays an important role in security systems. -
Page 13: Electrical Parameters
Explosion-proof Integrated PTZ & Camera-Instruction Manual Figure 1.4.1 Dimension Figure 1.4.2 Distribution of installation holes 1.5. Electrical parameters Voltage and current: 100~240V AC or 24V AC; Max. 3.0A Consumption: ≤75W Electrical connection: Comprehensive cable Communication type RS-485 Control communication speed: 2400~19200bps adjustable Control communication Protocol: PELCO-D/PELCO-P... -
Page 14: Service Condition
Explosion-proof Integrated PTZ & Camera-Instruction Manual Screen wiper (30±10) times/min Lightning distance 50~100m (fill light will turn on automatically if illuminance<19Lux) Fast Ethernet electrical signal interface(optional): full duplex TCP/IP Protocol Ethernet interface transmission Video signal): 1-way video output Audio: 1-way input, 1-way output Alarm: 2-way alarm input, 1-way alarm output Address code:... -
Page 15: Cable Entry
Explosion-proof Integrated PTZ & Camera-Instruction Manual transportation; Users are not allowed to dismantle the camera, otherwise hazards may arise; Check if there is a certificate of conformity number; Check if the application area indicated in the Ex making is suitable for the intend location;... -
Page 16: Wall-Mounted Installation
2.3. Wall-mounted Installation The debugging is done before package, only installation in the intended location is required. We strongly suggest you select supports from Dahua, it will ease your installation process significantly. It’s the user’s responsibility to ensure the support for the camera is strong enough, and the fasteners comply with associate load and anti-rust requirements. - Page 17 Explosion-proof Integrated PTZ & Camera-Instruction Manual Wall-mounted Bracket Figure 2.3.1.2 Dimension of Wall-mounted Bracket Figure 2.3.1.3 Front view of Wall-mounted Bracket Figure 2.3.1.4 Side view of...
-
Page 18: On-Spot Installation And Fixing
Explosion-proof Integrated PTZ & Camera-Instruction Manual 2.4. On-spot installation and fixing Since Ex product is very special, adjust with power indoors before installation in the intended locations if available. 2.4.1. Instruction for installation See Figure 2.3.1.2 for distribution of installations holes under the camera, take DH-EPC□ -PTZ-IR as example: pass the reserved cable of the camera through the cable in the support, the cable connected from camera to junction box could be protected by explosion-proof flexible pipes (or armored cable);... -
Page 19: Adjusting And Operation
Explosion-proof Integrated PTZ & Camera-Instruction Manual 2.5. Adjusting and operation 2.5.1. System connection Figure 2.5.1 System connection Take DH-EPC□-PTZ-IR as example, network model device adopts cable network or wireless network as the main network for digital video signal transmission, it’s available for users to monitor or record the videos at any time by network, no matter in local area network (LAN) or wide area network (WAN), such as internet. -
Page 20: Cable Specification
Explosion-proof Integrated PTZ & Camera-Instruction Manual 2.5.2. Cable specification A comprehensive cable is provided on packaged product (see Table 2.5.2 for cable specification), the cable is lead out from the side of the base bottom with minimum length of 2m; connect the comprehensive cable to the system bus in the junction box before operation. Table 2.5.2 Cable specification Part name Color... - Page 21 Explosion-proof Integrated PTZ & Camera-Instruction Manual Figure 2.5.3.1 Toggle switch Address setting of toggle switch, total 255 addresses in maximum by binary system, see Table 2.5.3.1 for address setting from 1 to 65. Table 2.5.3.1 Address setting Digit Address Baud rate setting: toggle switch SW2, digit 1-2, see Table 2.5.3.2. Table 2.5.3.2 Baud rate setting Digits of SW2 Baud rate (bps)
-
Page 22: Inspection And Examination Before Power On
Explosion-proof Integrated PTZ & Camera-Instruction Manual Protocol setting: toggle switch SW2, digit 3-5, see Table 2.5.3.3. Table 2.5.3.3 Protocol setting Digits of SW2 Protocol PELCO-D PELCO-P USER Note: USER protocol is based on customers’ demands. 2.5.4. Inspection and examination before power on Check if the power and network cable are connected correctly, if the toggle switch settings are correct before power on. -
Page 23: Transportation, Storage And Maintenance
Explosion-proof Integrated PTZ & Camera-Instruction Manual Short-circuit the 120-jumper wire of the farthest camera Signal reflection communication PCB, add 120Ω to eliminate the reflection Incorrect address Incorrect protocol Set according to Incorrect baud rate instruction manual of camera Incorrect model of camera Uncontrolled camera Incorrect setting of control model (SW1) 4. -
Page 24: Camera/Optical Parameters
Explosion-proof Integrated PTZ & Camera-Instruction Manual 5. Camera/optical parameters * the following model are typical options, other models are available after confirmation. ------------------------------------------------------------------------------------------------------- Model CA-HZ2030U Image transmitter 1/2.8″ CMOS Pixel 24.2 mega pixels 1/1~1/30000s Electronic shutter Focal length 4.5mm~135mm Day-night switch model Automatic ICR optical filter colorized to monochrome Focus model Automatic/manual/semi-automatic... - Page 25 Explosion-proof Integrated PTZ & Camera-Instruction Manual Annex: Table of poisonous and harmful substances or elements 《Measures for the Administration of Pollution Control of Electronic Information Products》Substances or restriction element identification table Part name Polybrominated Lead Mercury cadmium chromium VI Polybromide diphenyl ethers (Pb) (Hg)
- Page 26 Out of guarantee period. If you have any dissent on technical service provided by distributor, please lodge a complaint to the customer’s service center of Dahua. The quality guarantee card will be validated only after it’s stamped by the after-service provider.
- Page 27 Explosion-proof Integrated PTZ & Camera-Instruction Manual Client： ________________________________ ________ Address: ____________________ __________________________ TEL: _________ FAX: ____________ ZIP CODE: ____________ E-mail： ___________ ___________________________________ Model: ____________________________ ________ S/N: ________________________ ______________ Date of manufacture: __________(YYYY)________(MM)________(DD) Date of purchase: __________(YYYY)________(MM)________(DD) If you have any other suggestions or requirements please write down： ________________________________________________________ ________________________________________________________ ________________________________________________________...
- Page 28 Explosion-proof Integrated PTZ & Camera-Instruction Manual Zhejiang Dahua System Engineering Co., LTD. No.1187 Binan Road, Binjiang District, Hangzhou, Zhejiang, P.R. China TEL: +86-0571-28179192 Zip code: 310053 Website: http://www.dahuasystem.cn January, 2018...
