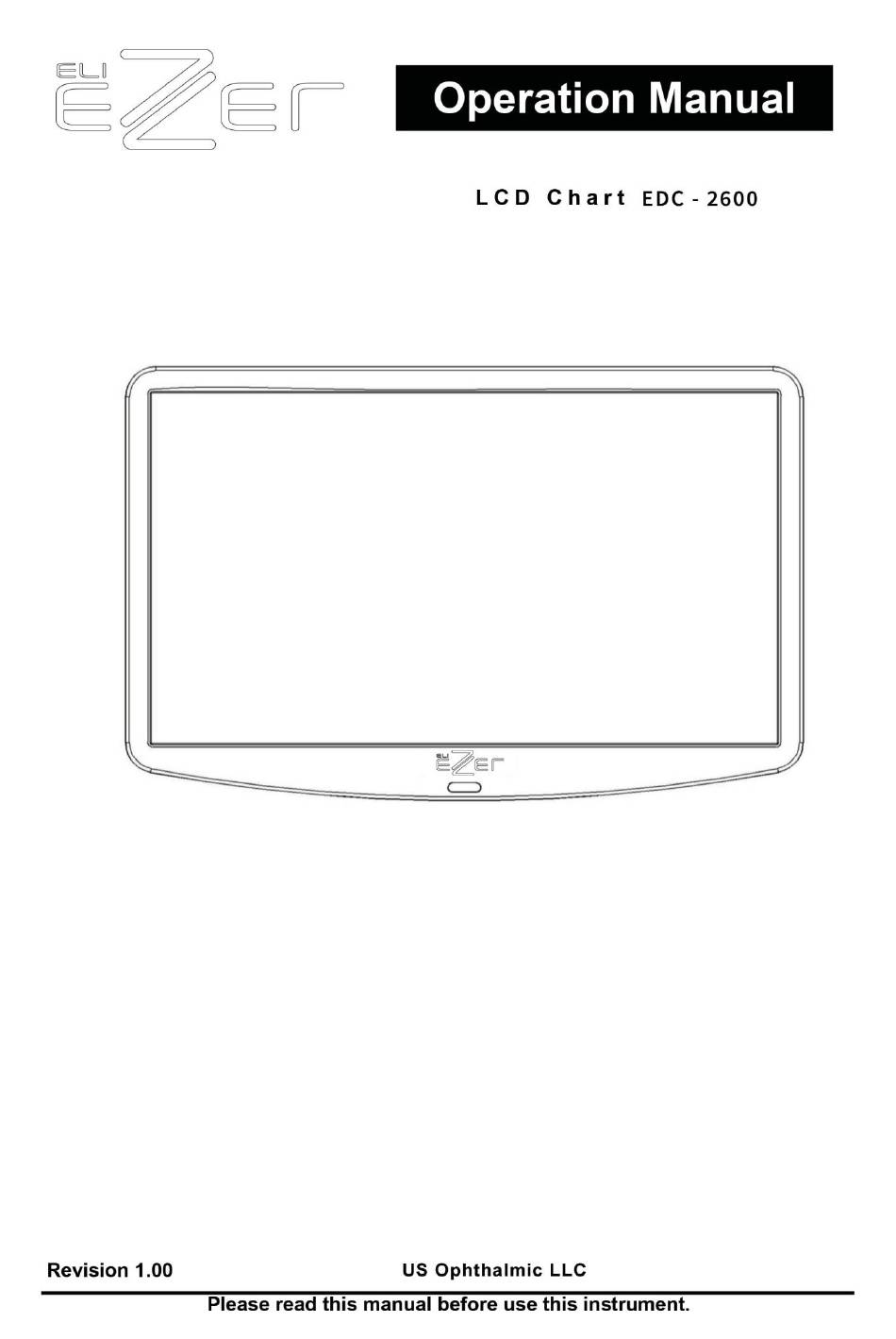

Eli Ezer EDC-2600 Operation Manual

Lcd chart
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDC-2600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eli Ezer EDC-2600

Summary of Contents for Eli Ezer EDC-2600

  • Page 2: Important Notice

    [Degree of protection against ingress of liquids] IPX0 The EDC-2600 is classified as IPX0 [Degree of protection against flammability] The EDC-2600 is classified as a device not suitable to be used in a potentially flammable environment. Do not use near flammable materials [Mode of operation]...
  • Page 3 No use of the information contained herein. EDC-2600 reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.

  • Page 4: Safety Information

    SAFETY INFORMATION Accessory equipment connected to the analog and digital interfaces must be certificated according to the respective IEC/EN standards (e.g. IEC/EN 60950 for data processing equipment and IEC/EN 60601-1 for medical equipment). Furthermore all configurations shall comply with the system standard EN 60601-1-2:2007. Everybody who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore responsible that the system complies with the requirements of the system standard EN 60601-1-1:2001.
  • Page 5 SYMBOLS Symbol Description Alternating current General warning (find the Annex) DO NOT dispose waste Manufacturer Manufacturing date Authorized Europe representative...

  • Page 6: General Safety Information

    General Safety Information Follow the safety instructions on this manual when WARNING or CAUTION appears from the warning labels under. Ignoring the warning labels during the operation may cause injury or accident. Be sure to read and understand fully this manual before using the product. Keep this manual in easy-to-access place.

  • Page 7: Table Of Contents

    Table of Contents ……………………………… IMPORTANT NOTICE ……………………………… SAFETY INFORMATION ……………………………… GENERAL SAFETY INFORMATION ……………………………… 1. Features ……………………………… 2. Introductions for use ……………………………… 3. Functions of each parts ……………………………… 4. Installation ……………………………… 5. Operation ……………………………… 6. Operation mode ……………………………… 7. Menu mode ………………………………...

  • Page 8: Features

     Black-white reversal feature offers convenient test patients who had Lasik surgery.  For prompt and accurate test, EDC-2600 is usable alone with remote control, and linkable to use with EDR.  The latest program is available to update easily by using USB flash drive....
  • Page 9  EDC-2600  Avoid excessive shock or vibrate on the  In case of connecting EDC-2600 with another or moving, please follow the guides of  technician or service agent. Please place it flat floor.   Exterior lighting affects the test. Use the instrument in an appropriate optometry room.

  • Page 10: Functions Of Each Parts

    EDC-2600 is consisted of main body, cradle for wall mount, remote control, and accessories. Explanations and functions of each component are as followings. 2.1. Main body The main body of EDC-2600 is the most significant part, and installed on the cradle. ②State LED ①Remote control receiver [Figure 1] Front ③Wall mount holes...
  • Page 11 ④Serial cable port ⑤Power switch ⑥USB port ⑦Adapter connector [Figure 3] Side I/O...
  • Page 12 Descriptions Function Receives signal from remote control.. ① Remote control signal receiver ② State LED Shows power state in LED. Green: power is on. ③ Wall bracket hole Place bracket on it, and tight the bolts to assemble the cradle and main body.
  • Page 13 3.1. Remote control Turns LCD chart on and off with remote control, and changes display for test. 1. IR Sensor 2. Power button 3. Set up button 4. Program button 5. Slide button 6. Mask button 7. Arrows [ Figure 4 ] Remote control...
  • Page 14 Descriptions Function 1. IR Sensor Sends signal from the remote control to the main body. Turns power on or off 2. Power button Do turn off main switch on backside when don‟ t use unit for a long time 3. Set-up button Set the menu for user‟...
  • Page 15 2.2. Accessories Accessories of EDC-2600 are composed standard products and optional products. ① ② ③ ⑤ ④ ⑥ ⑦ (Optional) (Optional) [ Figure 5 ] Accessories Q’ty Descriptions Function 1.5V AA size batteries ① Batteries ② Adapter A power supplier to the main body ③...

  • Page 16: Installation

    4. Installation 3.1 Parts list Q‟ t y Descriptions Wall plate Adapter bracket Safety bolt M4x8mm bolt M4x12mm bolt M5x8mm bolt M5x12mm bolt M5 washer Long bolt Wall anchor Long bolt washer...
  • Page 17 3.2 Installation guide Stage 1 A) Wood stud mounting 1) Place wall plate on a wood stud to mark two mounting holes. 2) Use long bolts (B1) and long bolt washers (B3) to tight wall plate on the wood stud. *<CAUTION>...
  • Page 18 Stage 2 1) Align the mounting holes after placing adapter bracket behind the monitor closely. 2) Attach M5 Washer (A3) by tighten bolts (A1-A2) *<CAUTION> DO NOT tight bolts excessively. Stage 3 1) Slide the adapter bracket (2) into wall plate (1). 2) Tight safety bolt (3) to fix the monitor.

  • Page 19: Operation

     Power control feature Use switch on the bottom of the main body, or remote control to turn on or off EDC-2600. Do turn off main switch on backside when don‟ t use unit for a long time ...
  • Page 20  Additional chart Chart Function Invert colors of character and background at character chart Test contrast sensitivity at character chart. Astigmatoscopy chart Detailed astigmatoscopy chart with cross cylinder lens. Balance test chart Binocular balance test chart Red/green background at character chart Worth 4 Dot chart Shober chart ETDRS chart...
  • Page 21 Retinal abnormality test chart  Program mode EDC-2600 supports two programs. Each program can have 28 charts, and allows using them in order. It is easy to edit and use on visual acuity test. Detailed information is on Chapter 8 “Program mode.”...

  • Page 22: Operation Mode

    6. Operation mode EDC-2600 offers „REMOCON MODE‟ to use the product alone and „EDC-2600 MODE‟ t o link digital refractor for use. Select mode to use at „RS-232-Protocol‟ under Set-up menu. [ Figure 3 ] Set-up – RS-232 Protocol Other slides such as color blindness test are offered separately from above mode.
  • Page 23 7 Set up mode Configuration of EDC-2600 is available at Set up mode. [ Figure 4 ] Set-up mode  Running Set up mode Press „Set-up‟ on the remote control at test mode  Selecting menu Press „Next‟ or „Prev‟ on the remote control to select menu.
  • Page 24  Chart categories Distance Set installation distance from 1.5m to 7.5m. Chart size will change depending on the distance. Contrast Adjust contrast at the Contrast test mode in four stages – 5%, 10%, 25%, 50%. Unit of Index Set unit of sight: Decimal, Feet, Meter ETDRS Chart...
  • Page 25 Mask Position Original : Masks at the original location during Mask mode Center : Masks the center of the screen during Mask mode. Mirror Set Mirror mode when to install a mirror for half shorten the distance to the chart. All charts are mirrored.
  • Page 26 S/W Update It’d be updated with the latest version with USB ※ How to update ? (1) Do format USB as FAT32(File System) (2) Copy the latest version(EDC-2600, No extension) into USB (3) Move Cursor to and then press button, S/W Update would be begun automatically If File System in USB is not proper or the file for updating does not exist, it shows “The Update...
  • Page 27  Red/Green category Set this category at standard model and polarizing model. Red Value (0 ~255) Brightness of red value changes in 5 units. Green Value (0 ~255) Brightness of green value changes in 5 units Background (0 ~255) Background brightness value changes in 5 units ※...
  • Page 28  Program categories There are two types of program (A/B). Convenient test is available by registering test chart by the frequency. Program A / Program B Other charts can be applied as type A or B. Move the cursor to the test chart, and press „Set-Up‟ on the remote control to register. Press „Clear‟...
  • Page 29  Image categories Registered images appear as slide. Update button Copy and register images by inserting the USB flash drive. Delete button Delete all images Default button Delete all images and default. ※ We recommend to modify the values on Menu mode after the system becomes familiar.

  • Page 30: Program Mode

    8 Program mode EDC-2600 offers two program modes (A/B) based on patient‟s test purpose and preference, for prompt and convenient visual acuity test. 28 charts are available in one program. 8.1 Running Program mode  Select Program  Press [PROGRAM A/B] to select program either A or B...
  • Page 31 Contact technician or service agent if the light is off.  If the EDC-2600 is off still though power cable is connected and green light is on, unplug the power cable and wait until light is off. Re-connect the power cable, and press the power switch.

  • Page 32: Maintenance

    9.4 Service information 9.4.1 Maintenance  Contact service agent if EDC-2600 has problem.  Inform followings based on product information label. • Model name : EDC-2600 • Serial number (Polarized) : 10 characteristics on product information label. • Serial number(Non-polarized) :...

  • Page 33: Specifications

    10 Specifications Monitor 24” TFT, LED backlight Type Resolution 1920(H) x 1080(V) pixel Display area 531.36(H) x 298.89(V) mm Features 1. Landolt Ring / Snellen Chart 2. Numbers / Letters / Korean 3. Children 1. Single character / Horizontal Line / Vertical Line Masking 2.
  • Page 34 The Electromagnetic Compatibility Directive sets the essential requirements for electrical and electronic equipment that may disturb or even be disturbed by other equipment. The EDC-2600 complies with these requirements as tabled below. Follow the guidance on the tables for use of the device in the electromagnetic environment.
  • Page 35 EMC Information Basic EMC Port Phenomenon standard or test Test leve/requirement tested method Mains terminal CISPR11:2015 AC Mains Group1, Class B disturbance voltage Radiated disturbance CISPR11:2015 Enclosure Group1, Class B IEC 61000-3-2:2005 Harmonic Current Emission AC Mains Class A A1:2008 A2:2009 Pst: 1 Plt: 0.65 Voltage change,...
  • Page 36 11 . Disposal of product /Customer Service Please contact us with the below when dispose of product COMPANY : US Ophthalmic LLC. ADD: 9990 NW 14 ST STE 105 Doral FL 33172 Tel : +1-888-881-1122 Fax : +786-621-1842 This instrument has alkaline battery that may pollute environment by disposal or negligence.
