Equipment
The Pipe Hook Premium (figure 1.) is available
with a WLL of 5 ton/set up to 60 ton/set.

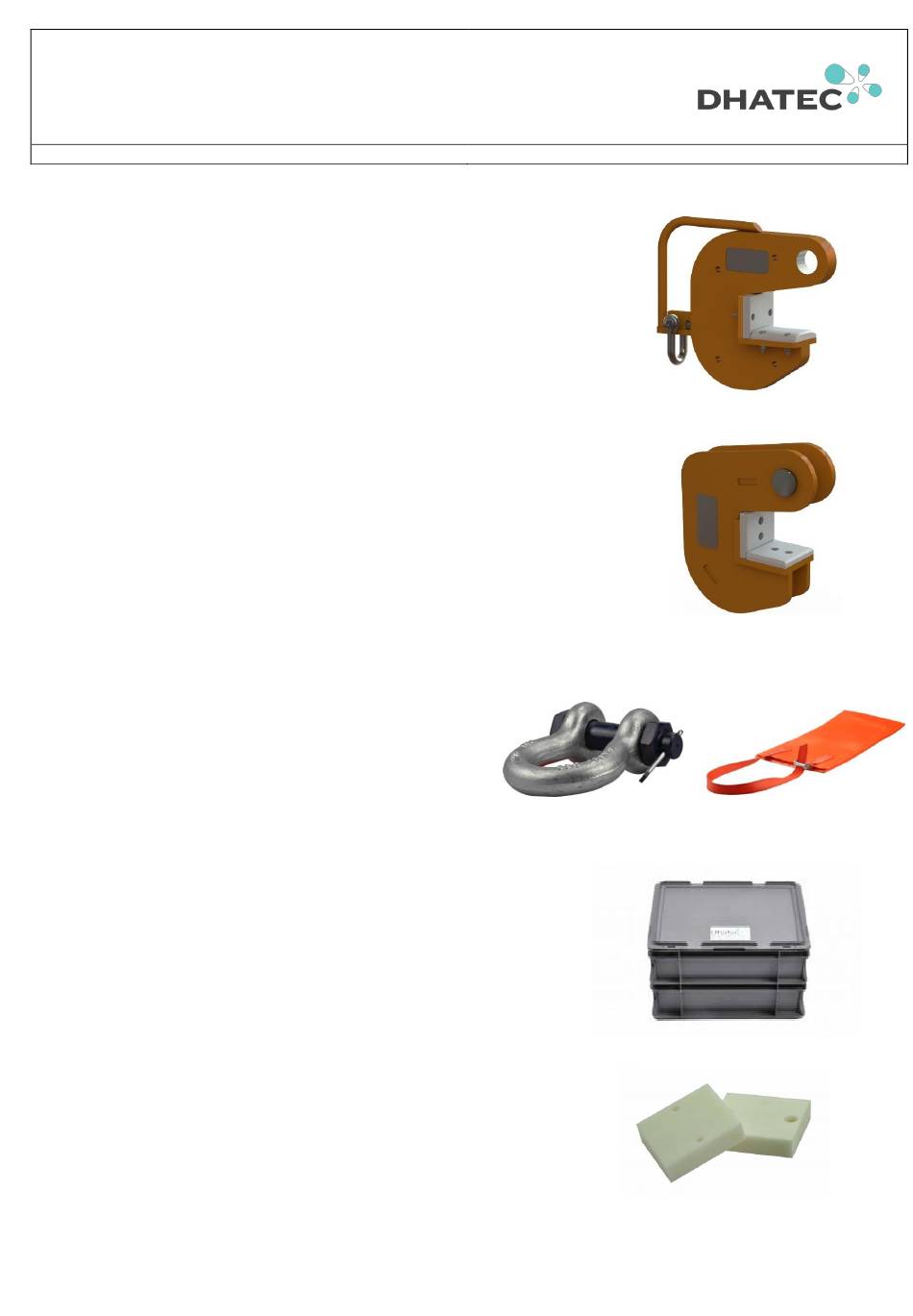

Figure 1. Pipe Hook Premium
The Pipe Hook Standard (figure 2) is available
with a WLL of 4 ton/set up to 20 ton/set.
Figure 2. Pipe Hook Standard
The Main Shackle (figure 3) is used to connect the Premium
Pipe Hook to the chain or sling of the crane. A Shackle
Protector (figure 4) is used to prevent damage to the pipe or
coating that can be caused by the shackle.
Figure 4. Shackle Protector
Figure 3. Main Shackle
To extend the lifetime of the Pipe Hooks, they must be stored in a dry and
clean environment. The Pipe Hook Box (figure 5) can be used to store the
Pipe Hook in a proper way.
Figure 5. Pipe Hook Box
If the plastic covers of the Pipe Hooks are damaged, they can be replaced
with the Replacement Cover Set (figure 6). For replacement, use only
original Dhatec parts. The cover sets are available for the Pipe Hook
Premium and Pipe Hook Standard.
Figure 6. Replacement Cover Set
