Application Procedure Specification Dhatec Pipe Hook
Rev.
Date
00
08.04.2015
01
20.01.2016
02
29.01.2018
©Dhatec BV. The following document shall be considered as copyright and the design right reserved. Copying and/or disclosure of
the information contained within the following document to any third-party, other than specifically for the purpose of the project is
forbidden without prior written permission of the proprietor.
Dhatec Document No.: DHA415-APS-PH
Status
For Construction
For Construction
For Construction
Elskensakker 8, NL-5571 SK
Bergeijk, The Netherlands
Tel
+31 497 542 527
Fax
+31 497 555 399
Email info@dhatec.nl
Web
www.dhatec.nl
Prepared by
Reviewed by
M.Hol
A.S.Sridharan
M.Hol
D.Neutkens
M.Voets
M. Bayens
Approved by
A.S.Sridharan
I.v.Assema
M. Bayens
Page 1 of 7
Advertisement

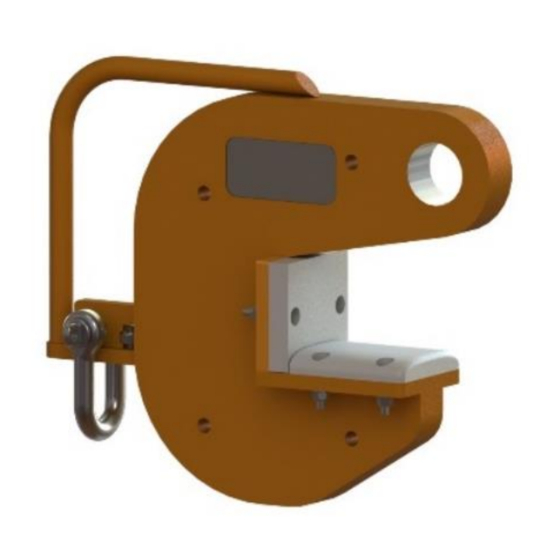

Summary of Contents for Dhatec Pipe Hook Premium
- Page 1 M. Bayens ©Dhatec BV. The following document shall be considered as copyright and the design right reserved. Copying and/or disclosure of the information contained within the following document to any third-party, other than specifically for the purpose of the project is forbidden without prior written permission of the proprietor.
- Page 2 Elskensakker 8, NL-5571 SK Bergeijk, The Netherlands +31 497 542 527 +31 497 555 399 Email info@dhatec.nl www.dhatec.nl Change Record Rev. Description of Revision First Issue General update + layout Font style Page 2 of 7...
- Page 3 Disclaimer of liability: Every effort has been made to ensure that the information in this document is accurate and correct to the best of our knowledge, correct at the date of publication. However, Dhatec B.V. cannot be held responsible for consequences that follow from the claims that were made in this document.
-
Page 4: Safety Requirements
Never use a Pipe Hook or Shackle without these registration marks or when there is no valid test certificate available. The operating temperature of the Dhatec Pipe Hooks is between -30 ⁰C (-22 ⁰F) and +80 ⁰C (176 ⁰F). For other ambient temperatures, contact Dhatec. - Page 5 If the plastic covers of the Pipe Hooks are damaged, they can be replaced with the Replacement Cover Set (figure 6). For replacement, use only original Dhatec parts. The cover sets are available for the Pipe Hook Premium and Pipe Hook Standard.
- Page 6 Before lifting check if the working load limit of the Pipe Hook and main Shackle is sufficient for the weight of the pipe. The Pipe Hook Standard comes with a shackle pin whereas Pipe Hook Premium is to be used together with a main shackle provided by Dhatec.
- Page 7 Document Ref: DHA415-APS-PH Revision: 02 Guidelines to check if the Pipe Hook is applied properly The Pipe Hook should be positioned leveled in the pipe end before starting lifting: The Pipe Hook should be leveled in the pipe end. The horizontal part must be in full contact with the internal surface of the pipe.
