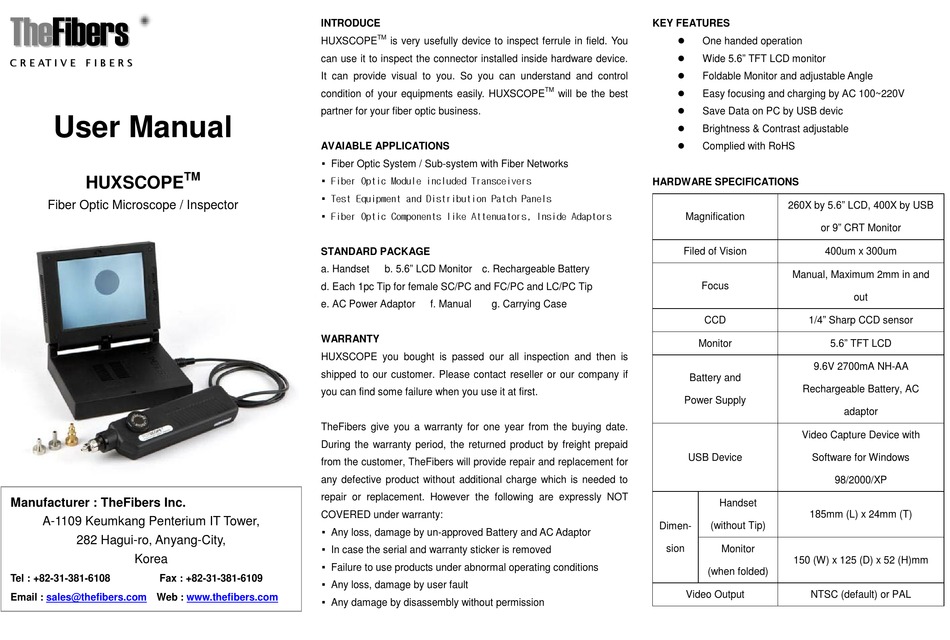

TheFibers HUXSCOPE User Manual

T h e F i b e r s
T h e F i b e r s
C C R R E E A A T T I I V V E E F F I I B B E E R R S S
User Manual
TM
HUXSCOPE
Fiber Optic Microscope / Inspector
Manufacturer : TheFibers Inc.
A-1109 Keumkang Penterium IT Tower,
282 Hagui-ro, Anyang-City,
Korea
Tel : +82-31-381-6108 Fax : +82-31-381-6109
Email : sales@thefibers.com Web : www.thefibers.com

INTRODUCE

TM
HUXSCOPE is very usefully device to inspect ferrule in field. You
can use it to inspect the connector installed inside hardware device.
It can provide visual to you. So you can understand and control
condition of your equipments easily. HUXSCOPE
partner for your fiber optic business.

AVAIABLE APPLICATIONS

▪ Fiber Optic System / Sub-system with Fiber Networks
▪ Fiber Optic Module included Transceivers
▪ Test Equipment and Distribution Patch Panels
▪ Fiber Optic Components like Attenuators, Inside Adaptors

STANDARD PACKAGE

a. Handset b. 5.6" LCD Monitor c. Rechargeable Battery
d. Each 1pc Tip for female SC/PC and FC/PC and LC/PC Tip
e. AC Power Adaptor f. Manual g. Carrying Case

WARRANTY

HUXSCOPE you bought is passed our all inspection and then is
shipped to our customer. Please contact reseller or our company if
you can find some failure when you use it at first.
TheFibers give you a warranty for one year from the buying date.
During the warranty period, the returned product by freight prepaid
from the customer, TheFibers will provide repair and replacement for
any defective product without additional charge which is needed to
repair or replacement. However the following are expressly NOT
COVERED under warranty:
▪ Any loss, damage by un-approved Battery and AC Adaptor
▪ In case the serial and warranty sticker is removed
▪ Failure to use products under abnormal operating conditions
▪ Any loss, damage by user fault
▪ Any damage by disassembly without permission

KEY FEATURES


One handed operation

Wide 5.6" TFT LCD monitor

Foldable Monitor and adjustable Angle
TM

Easy focusing and charging by AC 100~220V
will be the best

Save Data on PC by USB devic

Brightness & Contrast adjustable

Complied with RoHS

HARDWARE SPECIFICATIONS

Magnification
Filed of Vision
Focus
CCD
Monitor
Battery and
Power Supply
USB Device
Handset
Dimen- (without Tip)
sion Monitor
(when folded)
Video Output
260X by 5.6" LCD, 400X by USB
or 9" CRT Monitor
400um x 300um
Manual, Maximum 2mm in and
out
1/4" Sharp CCD sensor
5.6" TFT LCD
9.6V 2700mA NH-AA
Rechargeable Battery, AC
adaptor
Video Capture Device with
Software for Windows
98/2000/XP
185mm (L) x 24mm (T)
150 (W) x 125 (D) x 52 (H)mm
NTSC (default) or PAL
