User Manual
HUXSCOPE-WiFi
Fiber Optic Microscope / Inspector
INTRODUCE
TM
HUXSCOPE-WiFi is communicated with Apple iOS and Android
Smartphone (WiFi) as well as PC/Laptop (USB) and it is very usefully
device to inspect fiber optic ferrule in field. HUXScope-WiFi has
Pass/Fail Analysis Software and it is no need exterior Wireless AP or
Module.
AVAIABLE APPLICATIONS
▪ Fiber Optic System / Sub-system with Fiber Networks
▪ Fiber Optic Module included Transceivers, SFP, etc.
▪ Test Equipment and Distribution Patch Panels
▪ Fiber Optic Components like Attenuators, Inside Adaptors
STANDARD PACKAGE
a. Handset (included WiFi)
b. AC Battery Charger incl. USB to mini 5-pin cable
b. Software (Pass/Fail Analysis)
c. Tip for female SC/PC and FC/PC
d. Tip for female LC/PC
e. Manual
TM
[Female Tip is to inspect ferrule inside of adaptor and Male Tip is to
inspect patchcord ferrule.]
WARRANTY
HUXSCOPE you bought is passed our all inspection and then is
shipped to our customer. TheFibers give you a warranty for one year
from the buying date. During the warranty period, for the returned
product by freight prepaid from the customer, TheFibers will provide
repair and replacement for any defective product without additional
charge which is needed to repair or replacement.
However the followings are NOT COVERED under warranty:
▪ In case the serial and warranty sticker is removed
▪ Failure to use products under abnormal operating conditions
▪ Any loss, damage by user fault
▪ Any damage by disassembly without permission
KEY FEATURES
• WiFi and USB connection to Smartphone and PC
• Android App and iOS (Apple) App both
• Pass/Fail Analysis to IEC 61300-3-35
• Available several connector & adaptor types Tips
(Both Female / Male Tip)
• External Interface : mini 5-pin type
• Save inspected images and reports
• Real-time report in field through smartphone
• Built-in rechargeable battery
• No need exterior Wireless AP or Module
HARDWARE SPECIFICATIONS
Brand Name
Magnification
Field of Vision
Focus Manual, Maximum 2mm in and out
WiFi 2.4GHz WiFi IEEE 802.11b/g/n
Power 110/220V@50/60Hz Charger or USB Cable with PC
Battery 3.7V 1300mA Rechargeable Lithium Polymer Battery
Battery Running Time Approx. 4 hours (continuous usage)
USB Cable mini 5-pin to USB 2.0 for Windows XP, WIN7/8
For PC Pass/Fail Analysis to IEC 61300-3-35
Software
For Smartphone Android App and iOS (Apple) App
Handset (without Tip) 185mm (L) x 24mm (T)
Dimension
Weight

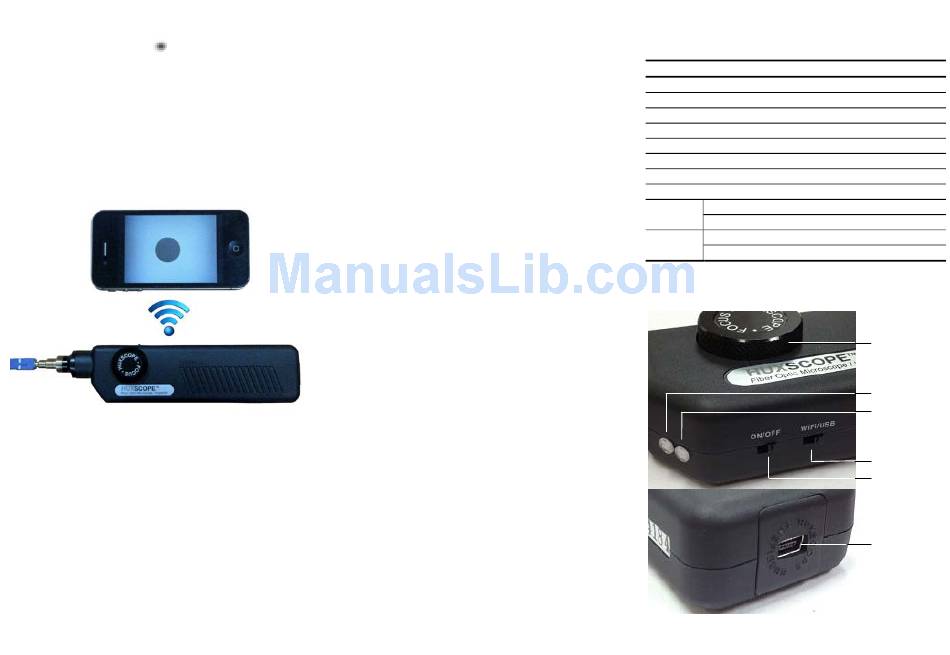

PRODUCT EXTERIOR OVERVIEW
HUXScope-WiFi
260X - 400X
400um x 300um
170g
Focus
Charging LED
WiFi LED
S/W WiFi/USB
S/W ON/OFF
Mini 5-pin
