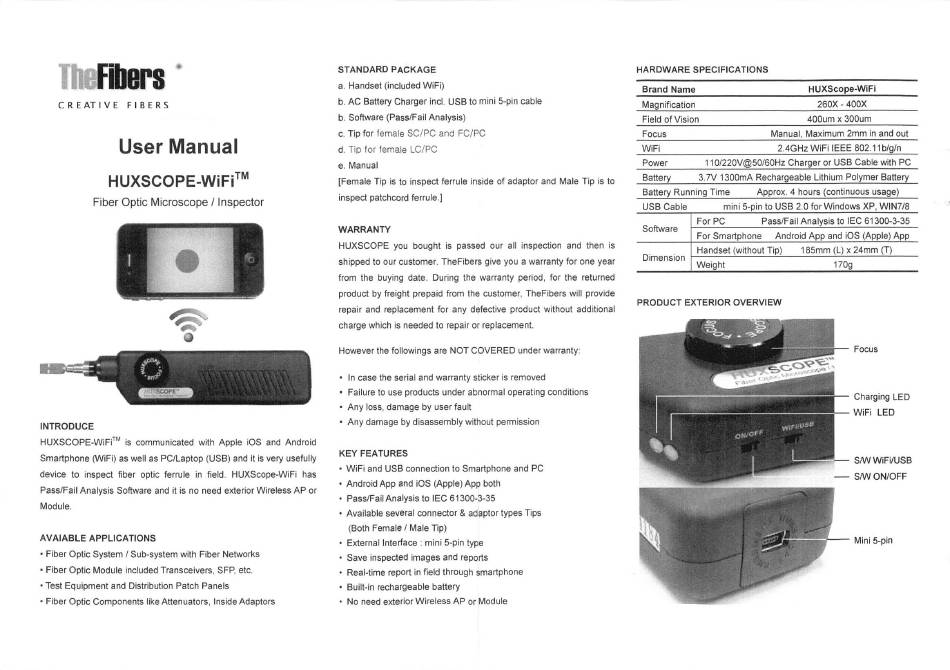

TheFibers HUXScope-WiFi User Manual

TheFibers
CREATIVE FIBERS
User Manual
HUXSCOPE-WiFi™
Fiber Optic Microscope / Inspector
INTRODUCE
HUXSCOPE-WiFi™ is communicated with Apple iOS and Android
Smartphone (WiFi) as well as PC/Laptop (USB) and it is very usefully
device to inspect fiber optic ferrule in field. HUXScope-WiFi has
Pass/Fail Analysis Software and it is no need exterior Wireiess AP or
Module.
AVAIABLE APPLICATIONS
• Fiber Optic System / Sub-system with Fiber Networks
• Fiber Optic Module included Transceivers, SFP, etc.
• Test Equipment and Distribution Patch Panels
• Fiber Optic Components like Attenuators, Inside Adaptors
STANDARD PACKAGE
a. Handset (included WiFi)
b. AC Battery Charger incl. USB to mini 5-pin cable
b. Software (Pass/Fail Analysis)
c. Tip for female SC/PC and FC/PC
d. Tip for female LC/PC
e. Manual
[Female Tip is to inspect ferrule inside of adaptor and Male Tip is to
inspect patchcord ferrule.]
WARRANTY
HUXSCOPE you bought is passed our all inspection and then is
shipped to our customer. TheFibers give you a warranty for one year
from the buying date. During the warranty period, for the returned
product by freight prepaid from the customer, TheFibers will provide
repair and replacement for any defective product without additional
Charge which is needed to repair or replacement.
However the followings are NOT COVERED under warranty:
• In case the serial and warranty sticker is removed
• Failure to use products under abnormal operating conditions
• Any loss, damage by user fault
• Any damage by disassembly without permission
KEY FEATURES
• WiFi and USB connection to Smartphone and PC
• Android App and iOS (Apple) App both
• Pass/Fail Analysis to IEC 61300-3-35
• Available several connector & adaptor types Tips
(Both Female / Male Tip)
• Extemal Interface : mini 5-pin type
• Save inspected images and reports
• Real-time report in field through smartphone
• Built-in rechargeable battery
• No need exterior Wireiess AP or Module
HARDWARE SPECIFICATIONS
Brand Name
HUXScope-WiFi
Magnification
260X - 400X
Field of Vision 400um x 300um
Focus
Manual, Maximum 2mm in and out
WiFi
2.4GHz WiFi IEEE 802.11b/g/n
Power
110/220V@50/60Hz Charger or USB Cable with PC
Battery 3.7V 1300mA Rechargeable Lithium Polymer Battery
Battery Running Time Approx. 4 hours (continuous usage)
USB Cable mini 5-pin to USB 2.0 for Windows XP, WIN7/8
Software
For PC
Pass/Fail Analysis to IEC 61300-3-35
For Smartphone Android App and iOS (Apple) App
Dimension
Handset (without Tip) 185mm (L) x 24mm (T)
Weight 170g
PRODUCT EXTERIOR OVERVIEW
Focus
Charging LED
WiFi LED
S/W WiFi/USB
S/W ON/OFF
Mini 5-pin
