CR3500 Wireless Setup
If you purchased a CodeXML Bluetooth Modem or a Belkin® Bluetooth adapter from Code or from
an authorized distributor, a QuickConnect Code was included. If you bought a Bluetooth adapter
separately and wish to create a QuickConnect Code, please visit Code's web site at:
http://www.codecorp.com/bdaddr.php.
To connect your reader, use the following steps:
1. Power on the CR3500 reader by pressing one of the red buttons for one second to power on
the reader.
2. Scan the Reset to RF Factory Defaults code on Page 3 (M684_01).
3. Scan the QuickConnect Code you received or created from Code's website (see Sample on
Page 3).
4. The CR3500 will automatically connect to the computer. By default, the CR3500 will beep once
after it connects and beep four times in a row if it did not connect.
5. Scan the Save Settings code on Page 3 (M188_02) if you want to save the wireless connection
settings to the CR3500 so that the CR3500 will automatically try to connect wirelessly
the next time it is powered on.
Important Note: You will need to locate the Communications (COM) Port assigned to the Bluetooth
serial port protocol. While installing the Bluetooth Configuration Manager software that was included
with your Bluetooth adapter, make sure to note the Communications (COM) Port number the soft-
ware assigned for the adapter (e.g., COM 10). This is the COM Port through which the CR3500 will
connect.

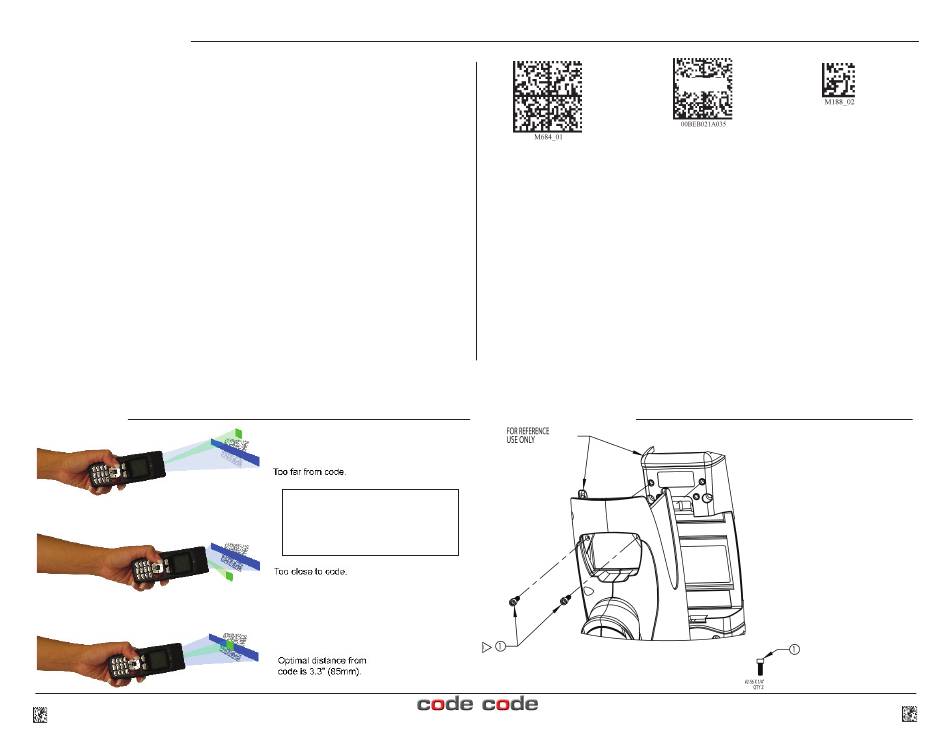

Reading Tips
2 C004419_02_CR3500_Quickstart_Wireless
CR3500's unique targeting
function uses two converging
targeting LEDs to guide the user
to optimal reading range.
Reset to RF Factory Defaults
Radio Range and Transferring Data
The CR3500 radio is a Class 1 device. If connected to another Class 1 device the unit has
roughly a 300 foot line-of-sight operating range. If connecting to a Class 2 or Class 3 device, the
operating range will drop to match the lower range. Once a unit is connected, a serial application
must be opened (HyperTerminal) unless CodeXML Router is installed.
When the CR3500 detects the radio is out of range, the CR3500 will store data on the reader's
non-volatile memory.
For more information about setting up and using the CR3500 with a wireless Bluetooth configu-
ration, please visit www.codecorp.com/manuals.php and download the latest version of the
CR3500 User Manual.
Handle Kit Instructions
QuickConnect Save Settings
Scan the QuickConnect
code that matches the
Sample
Bluetooth address of
your device.
1. Route item 1 (x2) as shown mate
with corresponding inserts in
CR3500 reader
2. Slowly thread both screws
half-way down
3. Continue to tighten screws in
small increments, alternating
between the right and left screw
until fully seated
4. Screws shall be tightened to a
torque setting of 2 inch-lbs
