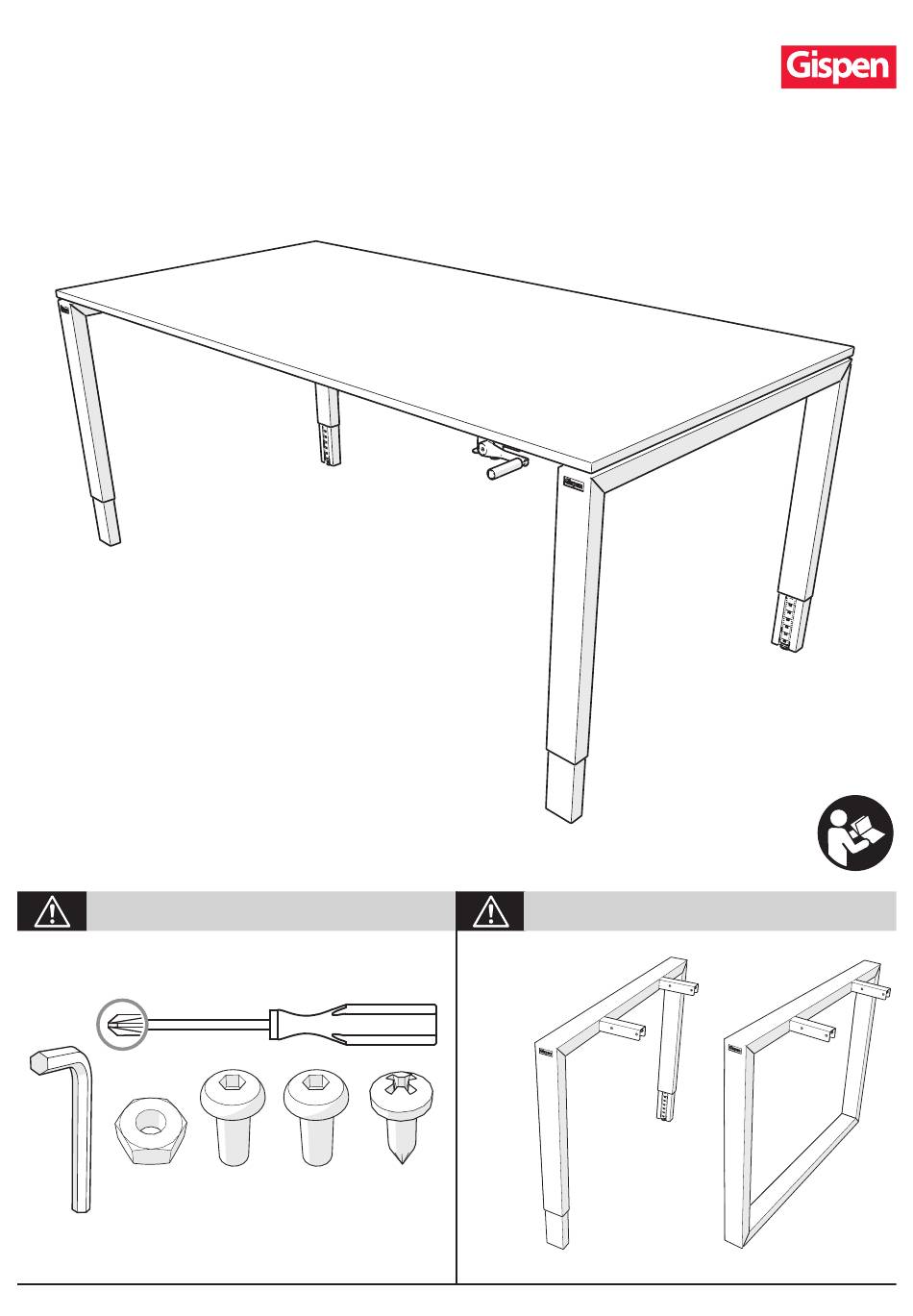

Gispen IC SINGLE WORKSTATION
Gispen IC
单独工作区
Installation manual
安装指南
HVM-
单独
Tools
工具
Nr. 2
M8
Nr. 3
(1x)
Nr. 5
*Depending on the dimensions, there may be more / less screws
根据尺寸，螺丝的数量可能会有变化
M8x10
M8x12
M6x10 or
(17x)
(4x)
Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15
4.8x16
(36x)
=
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gispen IC HVM Series
Summary of Contents for Gispen IC HVM Series
- Page 1 工具 Nr. 2 M8x10 M8x12 M6x10 or Nr. 3 (1x) (17x) (4x) 4.8x16 Nr. 5 (36x) *Depending on the dimensions, there may be more / less screws 根据尺寸，螺丝的数量可能会有变化 Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
- Page 2 Fasten the table legs using the socket-head Place the table legs screws 安放桌脚 用凹头螺丝固定桌脚 M8x10 (16x) Nr. 5 Turn the frame 180 degrees Insert the axis into the frame at the front 将框架旋转180° 在前面，将轴插入到框架内 Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
- Page 3 轴与绿色或蓝色边的左侧连接。 通过轴连接推送轴 Loosen 1 socket-head screw from the frame and Fasten the long axis and short axis place the metal part 固定长轴和短轴 从框架上松开1个凹头螺丝，安放金属部件 Nr. 2 Nr. 5 Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
- Page 4 Positions of the screws 用螺丝将框架固定在桌面上 螺丝的位置 M6x10 or 4.8x16 (24x) Insert the swivel into the frame Fasten the swivel using the screws 将转体插入到框架上 用螺丝固定住转体 M6x10 or 4.8x16 (4x) Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
- Page 5 Fasten the cable tray mounting plates using the and fasten the container ring screws 推动容器环至金属部件，并拧紧容器环 用螺丝固定电缆槽安装板 Nr. 3 M6x10 or 4.8x16 (8x) Insert the cable tray connections 插入电缆槽连接件 Insert the cable tray connections 插入电缆槽连接件 Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
- Page 6 Mount the cable tray onto the table 把电缆槽安装到桌子上 Turn the table 180 degrees Adjust the height of the table legs 将桌子旋转180° 调整桌脚高度 Adjust the height of the table 调整桌子高度 Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
- Page 7 HVM- 单独 Fasten the CPU holder using the socket-head Loosen 4 socket-head screws from the frame screws 从框架上松开4个凹头螺丝 用凹头螺丝固定主机架 Nr. 5 M8x12 (4x) Nr. 5 Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
- Page 8 HVM- 单独 Mount a computer onto the CPU holder 把电脑安装到主机架上 Gispen International BV - www.gispen.com/manuals - All rights reserved - version 07/15...
