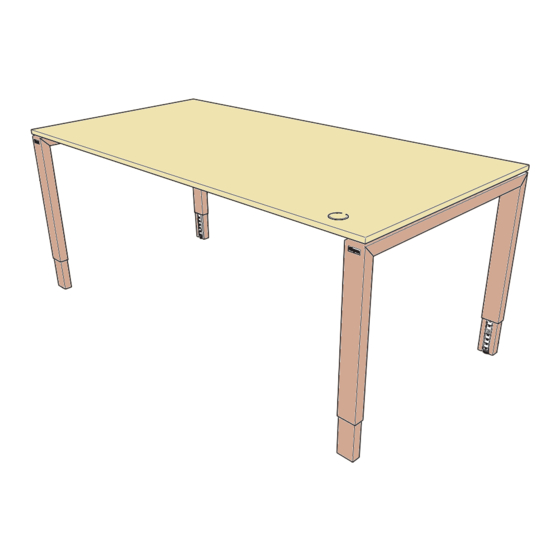

Gispen IC SINGLE WORKSTATION
Gispen IC
单独工作区
Installation manual
安装指南
HVE-
单独
Tools
工具
Nr. 2
M8
Nr. 5
(1x)
*Depending on the dimensions, there may be more / less screws
根据尺寸，螺丝的数量可能会有变化
M8x10
M8x12
M6x10 or
(17x)
(4x)
4.8x16
Gispen - www.gispen.com - All rights reserved - version 07/15
(32x)
=
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gispen IC HVE Series
Summary of Contents for Gispen IC HVE Series
- Page 1 安装指南 HVE- 单独 Tools 工具 Nr. 2 M8x10 M8x12 M6x10 or Nr. 5 (1x) (17x) (4x) 4.8x16 (32x) *Depending on the dimensions, there may be more / less screws 根据尺寸，螺丝的数量可能会有变化 Gispen - www.gispen.com - All rights reserved - version 07/15...
- Page 2 Fasten the table legs using the socket-head Place the table legs screws 安放桌脚 用凹头螺丝固定桌脚 M8x10 (16x) Nr. 5 Turn the frame 180 degrees Insert the axis into the frame at the back 将框架旋转180° 在背面，将轴插入到框架内 Gispen - www.gispen.com - All rights reserved - version 07/15...
- Page 3 Push the axis through the axis connection side to the left 轴与绿色或蓝色边的左侧连接。 通过轴连接推送轴 Fasten the long axis and short axis Loosen 1 socket-head screw from the frame 固定长轴和短轴 从框架上松开1个凹头螺丝 Nr. 2 Nr. 5 Gispen - www.gispen.com - All rights reserved - version 07/15...
- Page 4 1 nut tabletop 使用2个凹头螺丝和1和螺母固定电动机 将框架旋转180°，然后将框架放在桌面上 M8x10 (2x) M8 (1x) Nr. 5 Fasten the frame to the tabletop using the screws Positions of the screws 用螺丝将框架固定在桌面上 螺丝的位置 M6x10 or 4.8x16 (24x) Gispen - www.gispen.com - All rights reserved - version 07/15...
- Page 5 Fasten the cable tray mounting plates using the Fasten the motor using the screws screws 使用螺丝将电动机固定 用螺丝固定电缆槽安装板 M6x10 or M6x10 or 4.8x16 4.8x16 (2x) (8x) Insert the cable tray connections 插入电缆槽连接件 Insert the cable tray connections 插入电缆槽连接件 Gispen - www.gispen.com - All rights reserved - version 07/15...
- Page 6 Mount the cable tray onto the table 把电缆槽安装到桌子上 Turn the table 180 degrees Adjust the height of the table legs 将桌子旋转180° 调整桌脚高度 Place the push buttons Connect the push buttons 安放按钮 将按钮连接 Gispen - www.gispen.com - All rights reserved - version 07/15...
- Page 7 Adjust the height of the table Loosen 4 socket-head screws from the frame 调整桌脚高度 从框架上松开4个凹头螺丝 或 Nr. 5 Fasten the CPU holder using the socket-head screws 用凹头螺丝固定主机架 M8x12 (4x) Nr. 5 Gispen - www.gispen.com - All rights reserved - version 07/15...
- Page 8 HVE- 单独 Mount a computer onto the CPU holder 把电脑安装到主机架上 Gispen - www.gispen.com - All rights reserved - version 07/15...
