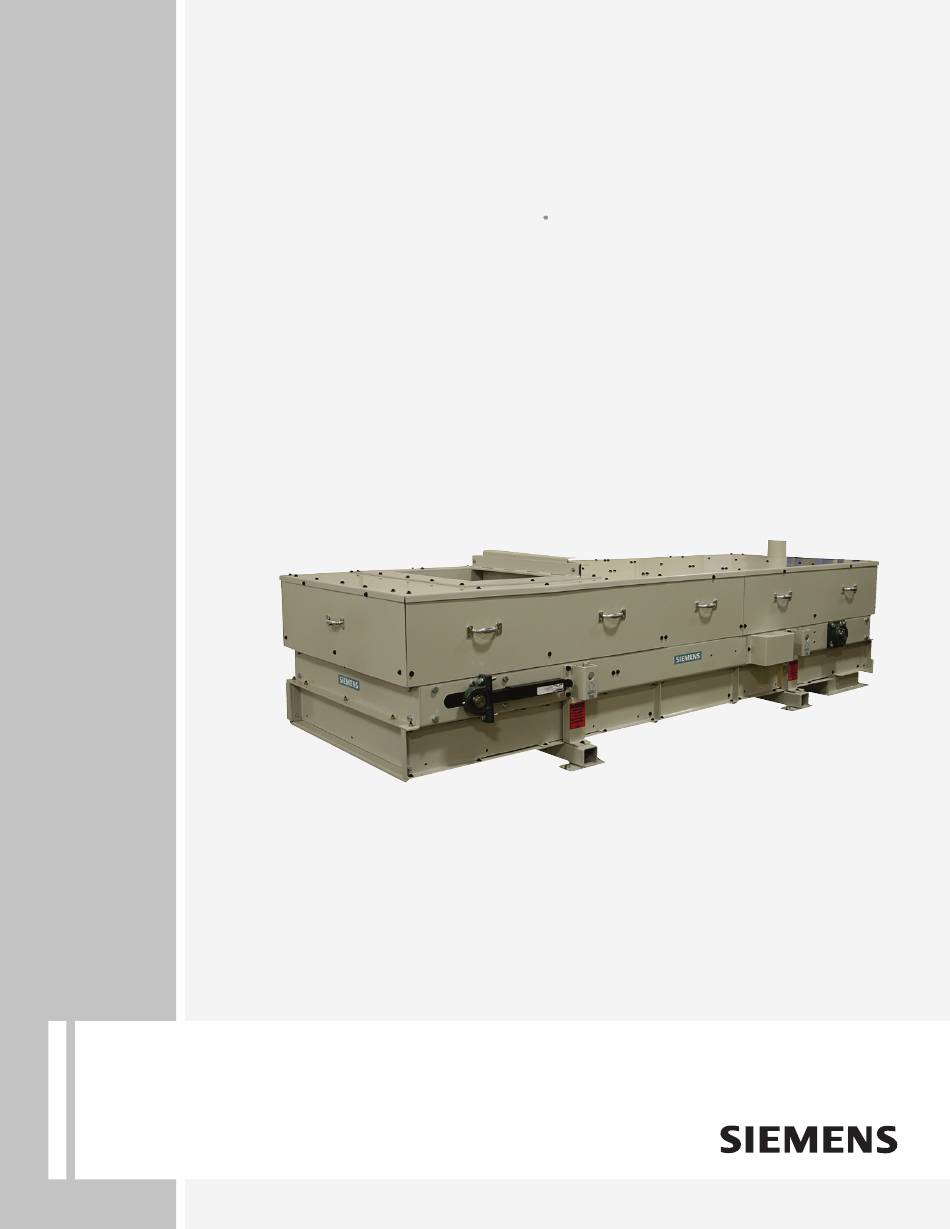

- Page 1 Weighfeeders SITRANS WW310 Operating Instructions 03/2014 SITRANS...
- Page 2 The user is responsible for all changes and repairs made to the device by the user or the user’s agent. All new components are to be provided by Siemens Milltronics Process Instruments. Restrict repair to faulty components only.
- Page 3 ___________________ SITRANS WW310 Introduction ___________________ Safety notes ___________________ Technical data SITRANS ___________________ Operation Weighfeeders ___________________ SITRANS WW310 Mechanical installation ___________________ Calibration Operating Instructions ___________________ Wiring ___________________ Start Up ___________________ Troubleshooting ___________________ Maintenance ___________________ Dimensions 03/2014 A5E33490433-AA...
- Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 5: Table Of Contents
Load cell replacement ........................28 8.7.1 Removing old load cell ......................... 28 8.7.2 Installing new load cell ......................... 30 8.7.3 Calibration ............................ 31 Weighing idler alignment ......................32 Quick start up overview ........................ 32 SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 6 Dimensions ............................39 11.1 8" pulley, open unit ........................39 11.2 8" pulley , enclosed unit ......................40 11.3 12" pulley, open unit ........................41 11.4 12" pulley , enclosed unit ......................42 Index ..............................43 SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 7: Introduction
SITRANS WW310 comes with an integrated weigh bridge and a speed sensor. An integrator and test weights are required to complete the system. Note The SITRANS WW310 Weighfeeder product is to be used only in the manner outlined in this instruction manual. Note For industrial use only This product is intended for use in industrial areas. - Page 8 Introduction 1.1 The Manual SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 9: Safety Notes
WARNING Always follow established safe operating practices when working on or around the SITRANS WW310, especially in wet environments and when adjacent to conductive steel mounting framework. Note A weighfeeder can be dangerous. Pinch points exist along the conveyor belt line. - Page 10 Safety notes 2.1 Safety and General Precautions SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 11: Technical Data
Totally enclosed three phase AC inverter duty rated motor with hollow bore shaft mounted gear reducer Shipping Weight 410 kg (900 lbs) minimum Approvals For use in hazardous rated areas, consult with factory. Note that only electrical components are rated and entire weighfeeder is not. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 12 Technical data 3.1 Specifications SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 13: Operation
Adding the samples provides total throughput weight of product across the scale. With proper scaling and calibration, the total weight can be displayed in kilograms, pounds, short tons, long tons, metric tons, or other appropriate units. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 14 Operation 4.1 Weighfeeders SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 15: Mechanical Installation
Mechanical installation Note When lifting the SITRANS WW310 Weighfeeder, connect to the lifting points at the legs of the unit, and follow local governing code for lifting/hoisting. Perform a thorough and systematic inspection of containers immediately upon receipt of your Siemens weighfeeder. -
Page 16: Installation
Securely fasten the unit to the rigid, level structure constructed in Step 1 (Page 14). Use a level for verification and shim as necessary. Prevent any twisting of the frame that may affect weighfeeder performance. Note The inlet and discharge of the weighfeeder will not support load. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 17 Remove only the tagged shipping bolt that is attached to the load cell. This bolt supports the weighbridge during transport and installation. Note DO NOT loosen or tighten the overload bolt—it has been factory set to minimize the possibility of load cell damage resulting from incidental overload. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
- Page 18 Step 9 Before starting the weighfeeder, make a final check to see that the conveyor belt is free of all tools and foreign objects, and that the infeed/skirtboards are not pinching against the belt. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
- Page 19 Mechanical installation 5.1 Installation SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 21: Calibration
Material tests are recommended to achieve maximum accuracy. Test load The test load value for your SITRANS WW310 Weighfeeder is given on the accompanying test sheet. To calculate the test load or to change it, refer to the integrator instruction manual. - Page 22 Calibration 6.3 Span SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 23: Wiring
Wiring Note Standard wiring, consult wiring diagrams for optional connections. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 24 Wiring SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 25: Start Up
Shear gate The shear gate on the inlet of the weighfeeder needs to be set to allow the maximum feedrate capacity required. Consult your Siemens representative if feed rate changes are required. Skirtboards The skirtboards have been factory set to proper specifications. Note that near the inlet, the skirtboards are very close to the belt. -
Page 26: Changing The Conveyer Belt
From the access side of the feeder at the discharge end, grab the edge of the belt and gently pull it over the side rail, making sure that the leading edge of the belt does not catch on any components. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 27: Belt Tension
Specific belt tension cannot be given because the weighfeeder could be mounted in various applications. As a general guideline, the bottom of the belt should droop 1-2 inches over the SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 28: Belt Tracking
2. Loosen the jam nut. 3. Turn the adjusting screw in the desired direction. Often, only a small amount of adjustment (1 turn or less) will be required. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 29 5. Re-tighten the jam nut located on the telescoper to maintain the new telescoper position after completing the tracking procedure. 6. If you are having problems tracking the belt, consult your Siemens representative. Common causes of belt tracking problems are: uneven or improperly distributed product loading, twisted frame, or product build-up on head or tail pulleys.
-
Page 30: Load Cell Replacement
If a load cell on SITRANS WW310 Weighfeeder has been damaged and is not functioning, or if you are changing the capacity, you will need to replace one or all load cells. - Page 31 Be careful not to move the idler as it is still attached to the load cell on the other side of the weighfeeder. Step 4 Remove the two bottom load cell mount bolts. Step 5 Remove the load cell off the feeder. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 32: Installing New Load Cell
Route the load cell cable to the junction box, and connect the load cell according to the supplied interwiring diagram. Repeat for other load cells if necessary Step 6 Perform a load cell balancing procedure as described in the integrator instruction manual. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 33: Calibration
Step 2 (Page 31). Step 5 Confirm calibration with material test as described in the integrator manual, if possible, before placing the feeder back in operation. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 34: Weighing Idler Alignment
(Page 13). Verify that the belt is tracking and the shear gate (if used) is properly set. 2. Verify that the weighfeeder, integrator/controller, and variable speed drive (AC or DC, if present) are all properly wired. 3. Refer to the supplied integrator/controller information for calibration and configuration information. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 35: Troubleshooting
Note If you have difficulty determining the cause of the problem, contact your Siemens representative. Be sure to have the Model Number and Serial Number of your system and all of the calibration and setup parameters available before calling 9.1.1... - Page 36 Troubleshooting 9.1 Mechanical troubleshooting SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 37: Maintenance
Belt Check for holes, wearing, frays, or Weekly Replace as required other damage Belt side Check for wear and proper belt Weekly Clean and replace as required rollers, contact scraper, plow SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 38: General Maintenance
Subsequent oil changes should be done every 2500 hours. See the gear reducer manual provided for further details. If there is a gear motor (motor and reducer all in one housing) supplied with your unit, it is permanently lubricated. No lubrication is necessary. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 39: Weighfeeder Storage Recommendations
Reduce belt tension to a minimum to prevent belt damage and re-adjust belt tension at re- installation. Note Do NOT store the weighfeeder in direct sunlight, as this will cause premature breakdown of the belt. SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 40 Maintenance 10.4 Weighfeeder storage recommendations SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
-
Page 41: Dimensions
762 mm (30") 1448 mm (57") 558 mm (22") 1118 mm (44") 914 mm (36") 1600 mm (63") 635 mm (25") 1270 mm (50") 1067 mm (42") 1753 mm (69") 711 mm (28") 1423 mm (56") SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 42: 8" Pulley , Enclosed Unit
762 mm (30") 1448 mm (57") 1219 mm (48") 1118 mm (44") 914 mm (36") 1600 mm (63") 1371 mm (54") 1270 mm (50") 1067 mm (42") 1753 mm (69") 711 mm (28") 1423 mm (56") SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 43: 12" Pulley, Open Unit
762 mm (30") 1397 mm (55") 1143 mm (45") 914 mm (36") 1549 mm (61") 1295 mm (51") 1067 mm (42") 1702 mm (67") 1448 mm (57") 1219 mm (48") 1854 mm (73") 1600 mm (63") SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 44: 12" Pulley , Enclosed Unit
762 mm (30") 1397 mm (55") 1143 mm (45") 914 mm (36") 1549 mm (61") 1295 mm (51") 1067 mm (42") 1702 mm (67") 1448 mm (57") 1219 mm (48") 1854 mm (73") 1600 mm (63") SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... -
Page 45: Index
Test Load, 19 Lubrication, 36 Zero, 19 storage, 37 Drive, 9 Materials, 9 Electrical Operating range, 9 storage, 37 Operating temperature, 9 Feedrate, 23 Preventative maintenance, 35 Framework, 9 Preventative maintenance program, 13 Pulleys, 9 SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA... - Page 46 19 Specifications, 9 Speed sensor, 9 Static weighing, 11 Storing a weighfeeder, 37 Test load, 19 Test weights, 5 Units, 11 Weigh bridge, 5 Weighfeeders How they work, 11 zero calibration, 19 SITRANS WW310 Operating Instructions, 03/2014, A5E33490433-AA...
- Page 48 For more information www.siemens.com/level www.siemens.com/weighing Siemens AG Subject to change without prior notice Industry Sector A5E33490433 Rev. AA 1954 Technology Drive © Siemens AG 2014 P.O. Box 4225 *A5E33490433* Peterborough, ON Canada K9J 7B1 email: techpubs.smpi@siemens.com Printed in Canada www.siemens.com/processautomation...
