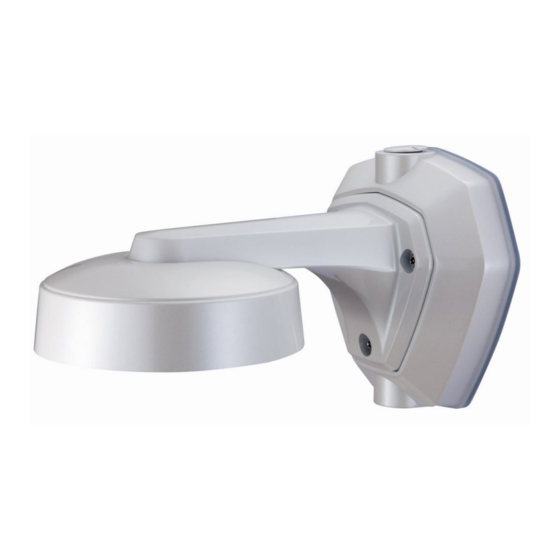

- Page 1 VSS Nederland Video Systems Owner´s Manual Cameras & Domes GBR-WA01 Wall bracket GBR-WA01.9.1.13.10.2010 © ASP AG VSS Nederland B.V. Telfordstraat 11m 8013 RL Zwolle Tel.: +31 38 42 89 420 Fax: +31 38 42 89 429 E-mail: info@vssnederland.nl...
- Page 3 Content: 1. Package Contents 2. Installation 1. Installation Remarks 2. Mounting 1. Package Contents These parts are included: 2. Installation 2.1. Installation Remarks Install the mount onto a strong structure such as a concrete wall, steel beam, etc. Avoid installing the mount onto an unstable structure such as a gypsum wall panel. When installing the mount on to concrete only use specific concrete screws and plugs, all the screw parts must be metallic.
- Page 4 2.2. Mounting 1. Insert the cable into the base mount and then fix it onto the wall. 2. Assemble the base bracket on the fixed base mount. 3. Take out the camera cable through the assembled mount and then assemble the adaptor with a rubber adaptor.
- Page 5 4. Connect the vandal dome camera. (Refer to the vandal dome camera instruction manual for camera connection.) English...
- Page 6 Specifications GBR-WA01 Suitable for GCA-B0322V, GCA-B1323V, GCA-B0325V, GCA-B0323V Body material Die cast aluminium Colour Shiny white Weight 0.9 kg Dimensions (wxhxd) 168.5 x 152 x 252 mm Dimensions English...
