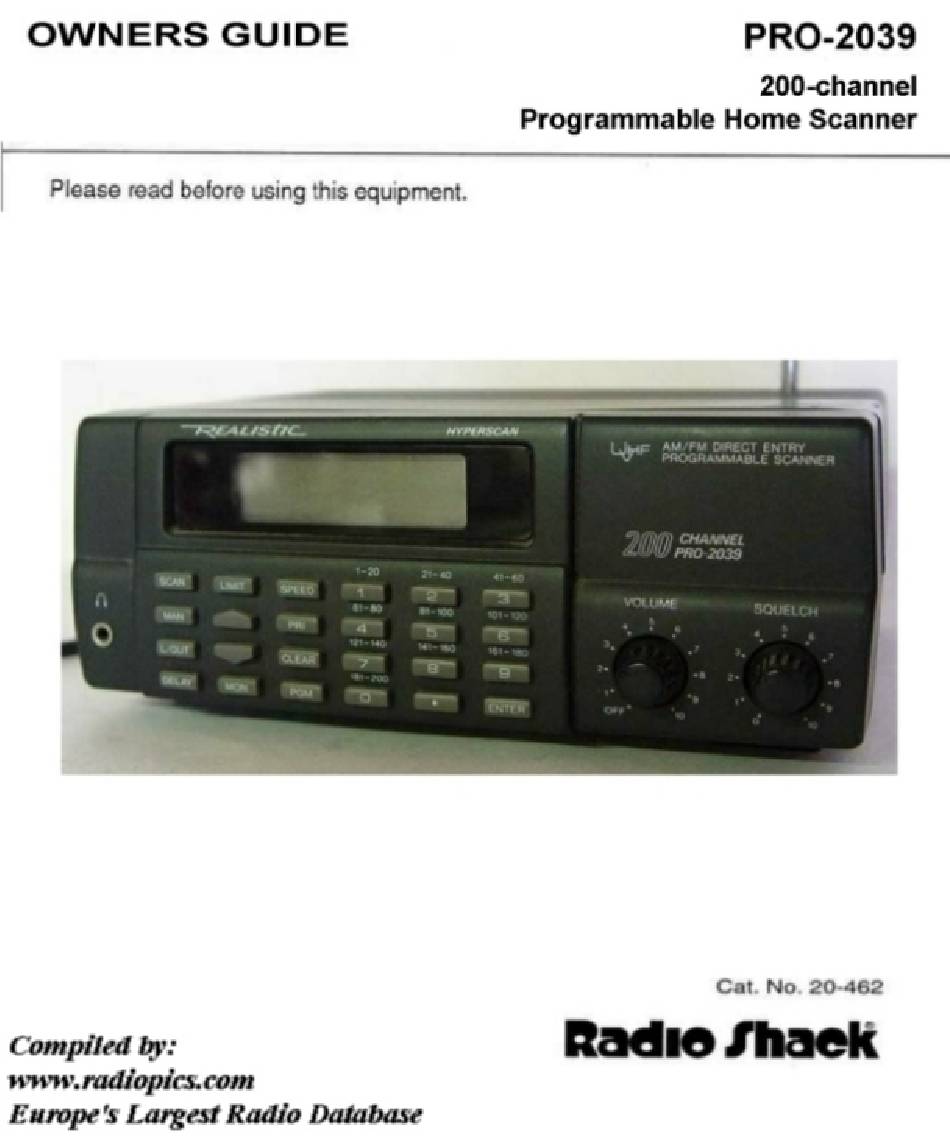

Radio Shack PRO-2039 Owner's Manual

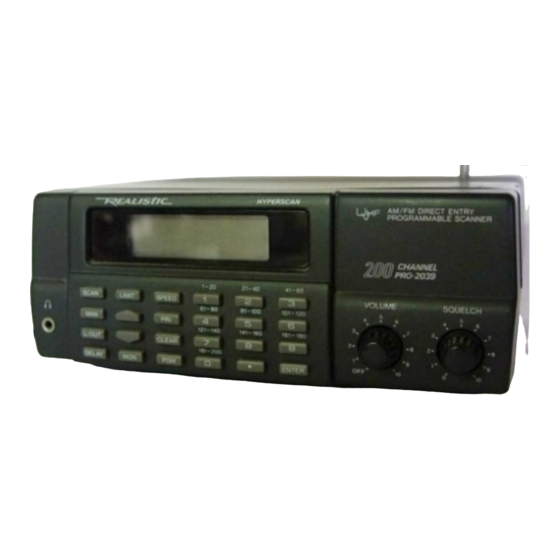

200-channel programmable home scanner
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-2039 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Radio Shack PRO-2039

Summary of Contents for Radio Shack PRO-2039

  • Page 2: Scanning The Channels

    TURINING ON THE SCANNER/SETTING VOLUME AND SQUELCH 1. Turn SQUELCH full counter-clockwise. 2. Turn VOLUME clockwise until you hear a hissing sound. The scanner automatically scans all 10 banks. 3. Slowly turn SQUELCH clockwise, then leave it set to a point just after the hissing stops.

  • Page 3: Searching For And Temporarily Storing Active Frequencies

    STORING FREQUENCIES Good references for active frequencies are Radio Shack's "Police Call Radio Guide Including Fire and Emergency Services," "Official Aeronautical Frequency Directory," and "Maritime Frequency Directory." We update these directories every year, so be sure to get a current copy. See also "Guide to the Action Bands"...
  • Page 4 select, so you can choose which ones you want to store. NOTE: You can use the scanner's delay feature while using limit search (see "Delay"). Follow these steps to search for active frequencies. 1. Press PGM, then LIMIT. LO appears on the display. 2.

  • Page 5: Moving A Frequency From A Monitor Memory To A Channel

    frequency. -d-, SRCH, and UP or DOWN arrows appear on the display. 4. When the scanner finds an active frequency, it stops searching. To save the frequency into a current monitor memory, press MON. The bar under the memory number stops flashing. 5.

  • Page 6: Locking Out A Channel

    the channel and press DELAY until DELAY appears on the display. When the scanner stops on the channel, it waits for 2 seconds after each transmission before it resumes scanning. To program a 2-second delay for any active frequency while searching, press DELAY until DELAY appears on the display.
  • Page 7 To turn off the priority feature, press PRI during scanning until PRI disappears from the display. SPEED Press SPEED while scanning/searching to alternate between low and high speeds. You can scan at either 8 or 25 channels per second, and search at either 8 or 50 frequencies per second.
  • Page 8 Specifications Frequency Coverage:......30 -- 54 MHz (in 5 kHz steps) 108.0000 -- 136.9750 MHz (in 25 kHz steps) 137.0000 -- 174.0000 MHz (in 5 kHz steps) 380.0000 -- 512.0000 MHz (in 12.5 kHz steps) 806.0000 -- 823.9375 MHz (in 12.5 kHz steps) 851.0000 -- 868.9375 MHz (in 12.5 kHz steps) 896.0000 -- 960.0000 MHz (in 12.5 kHz steps) Channels of Operation:...Any 200 Channels in any Band Combinations...

  • Page 9: Troubleshooting

    Troubleshooting The PRO-2039 Programmable Scanner should require very little maintenance. If you have problems, refer to the following for possible solutions. Problem Probable Cause Solution Scanner is totally The AC plug is not Check to see that the scanner is inoperative.
