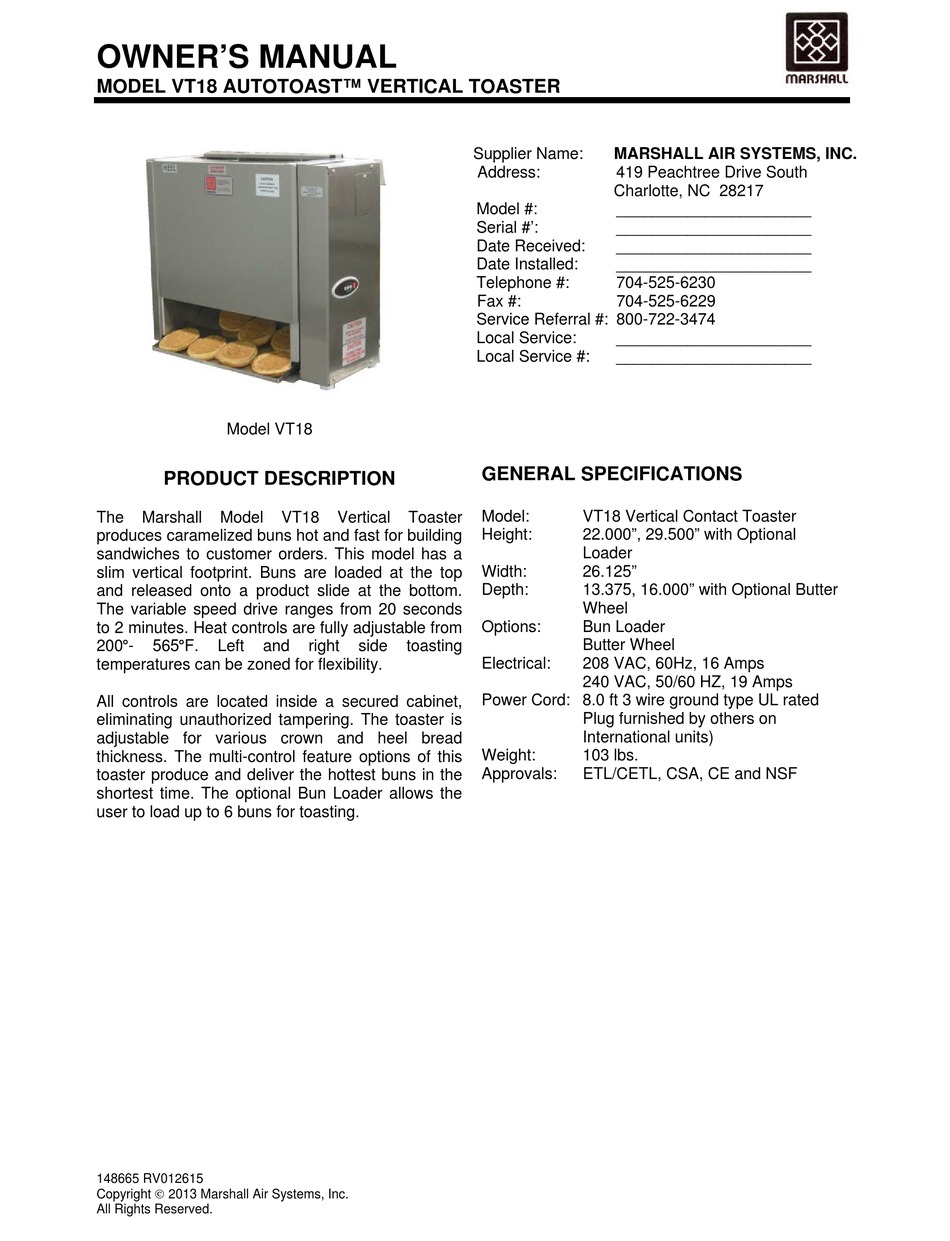

OWNER'S MANUAL
MODEL VT18 AUTOTOAST™ VERTICAL TOASTER
Model VT18
PRODUCT DESCRIPTION
The
Marshall
Model
produces caramelized buns hot and fast for building
sandwiches to customer orders. This model has a
slim vertical footprint. Buns are loaded at the top
and released onto a product slide at the bottom.
The variable speed drive ranges from 20 seconds
to 2 minutes. Heat controls are fully adjustable from
200-
565F.
Left
and
temperatures can be zoned for flexibility.
All controls are located inside a secured cabinet,
eliminating unauthorized tampering. The toaster is
adjustable for various crown and heel bread
thickness. The multi-control feature options of this
toaster produce and deliver the hottest buns in the
shortest time. The optional Bun Loader allows the
user to load up to 6 buns for toasting.
148665 RV012615
Copyright  2013 Marshall Air Systems, Inc.
All Rights Reserved.
VT18
Vertical
Toaster
right
side
toasting
Supplier Name:
MARSHALL AIR SYSTEMS, INC.
Address:
419 Peachtree Drive South
Charlotte, NC 28217
Model #:
______________________
Serial #':
______________________
Date Received:
______________________
Date Installed:
______________________
Telephone #:
704-525-6230
Fax #:
704-525-6229
Service Referral #: 800-722-3474
Local Service:
______________________
Local Service #:
______________________
GENERAL SPECIFICATIONS
Model:
VT18 Vertical Contact Toaster
Height:
22.000", 29.500" with Optional
Loader
Width:
26.125"
Depth:
13.375, 16.000" with Optional Butter
Wheel
Options:
Bun Loader
Butter Wheel
Electrical:
208 VAC, 60Hz, 16 Amps
240 VAC, 50/60 HZ, 19 Amps
Power Cord: 8.0 ft 3 wire ground type UL rated
Plug furnished by others on
International units)
Weight:
103 lbs.
Approvals:
ETL/CETL, CSA, CE and NSF
