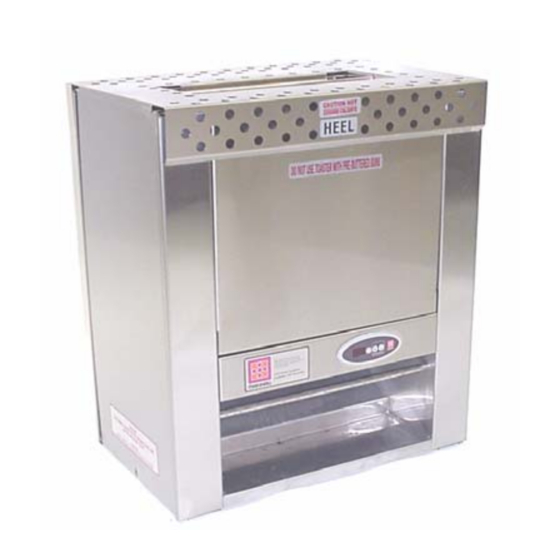

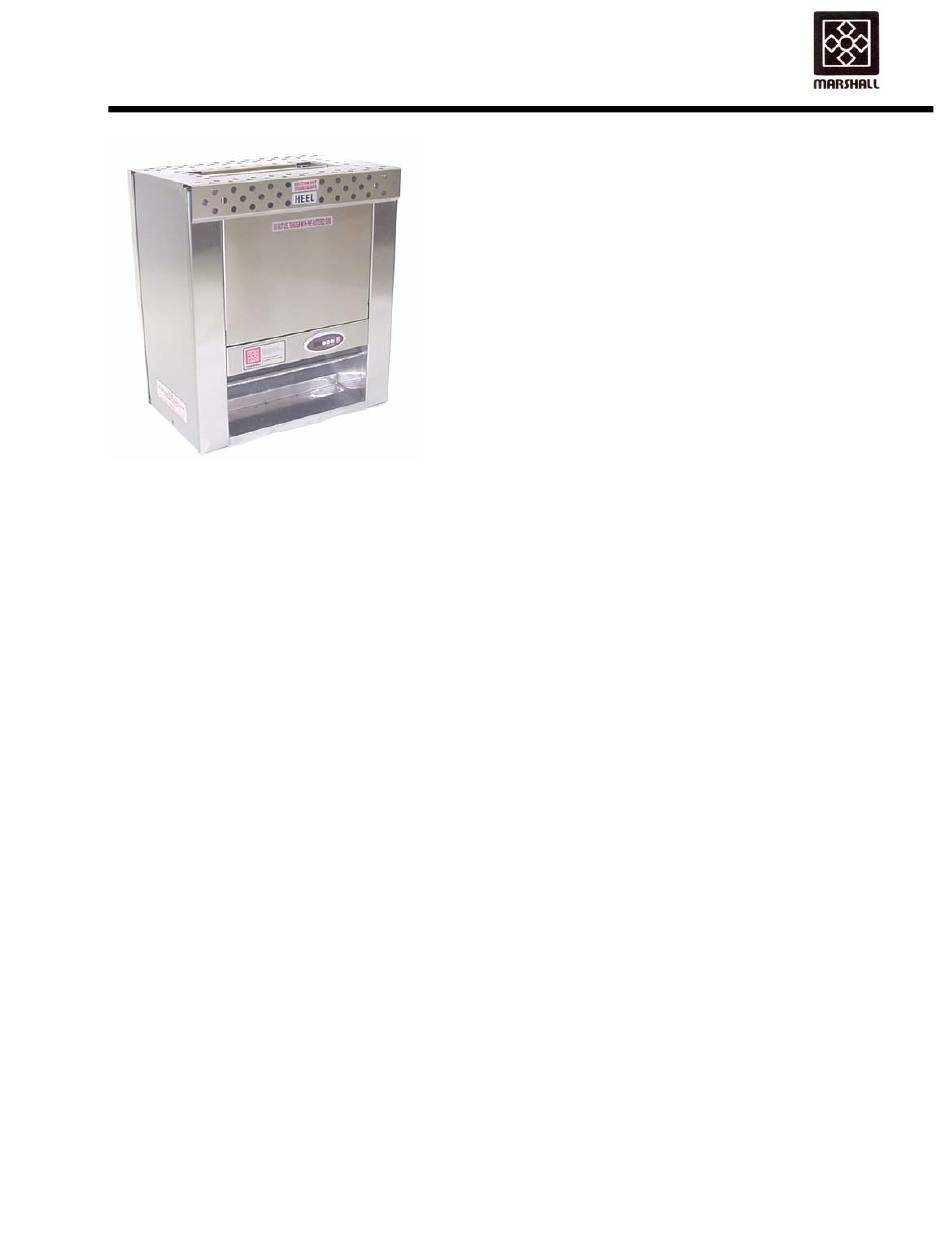

MODEL HST13 – AUTOTOAST™ VERTICAL TOASTER
PRODUCT DESCRIPTION
The Marshall High Speed Vertical Toaster produces
a grilled effect on the cut side of the sandwich buns.
The buns are inserted at the top of the unit and are
pressed against a heated platen surface, which is
covered by a replaceable toaster platen sheet. The
spacing between the heated grill and the conveyor is
adjustable to accommodate different thickness of
buns. The buns are discharged onto a product slide
at the bottom of the unit.
CH7B, have variable speed motor controls. Models
CH7C, CH7D have single speed motors. Toast time
on the CH7C toaster is 8 seconds heel, and 11
seconds crown. The CH7D toaster has a toast time
30p
of 23 seconds on both the crown and heel.
CH7F toaster has a toast time of 9 seconds on both
internationsl
the crown and heel. The CH7F-15 toaster has a
NEMA
toast time of 15 seconds on both the crown and heel.
The CH7G toaster has a toast time of 3.5 minutes.
The CH7H has a 60 second toast time. Additionally,
the heat settings are preset in factory, which
eliminates unauthorized tampering. The flexibility of
this toaster is unmatched allowing operations to
produce the hottest buns in the shortest time.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.
KEEP THIS MANUAL IN A SAFE PLACE AND RETAIN FOR FUTURE USE.
135168CH7 RV042910
Copyright © 2010 Marshall Air Systems, Inc.
All Rights Reserved.
Toaster Models CH7,
The
FOR YOUR SAFETY
Supplier Name: MARSHALL AIR SYSTEMS, INC.
Address: 419 Peachtree Drive South
Charlotte, NC 28217
Serial#: ___________________________
Date Received: ___________________________
Date Installed: ___________________________
Telephone #: 704-525-6230
Fax #: 704-525-6229
Service Referral# 800-722-3474
Local Service Name: ___________________________
Local Service #: ___________________________
Conveyor Speed
Setting: ___________________________
GENERAL SPECIFICATIONS
Height: 23.250"
Width: 19.875"
Depth: Model CH7B-12", CH7-15.250"
Model CH7C-12", CH7D-12", CH7F-12",
CH7G-12", CH7H-12"
Electrical: 208V Single Phase 18.5 Amps
240V Single Phase 21.0 Amps
Power Cord: 6 ft. 3 wire including ground, with NEMA
L6-20Pplug (208V) (CH7C Models L6-
30P)(CH7H Models NEMA 6-20P)
(Plug furnished by others on
International units) (CH7CINTLCE
NEMA L6-30P)
Weight: 116 lbs.
Listing: ETL and NSF
