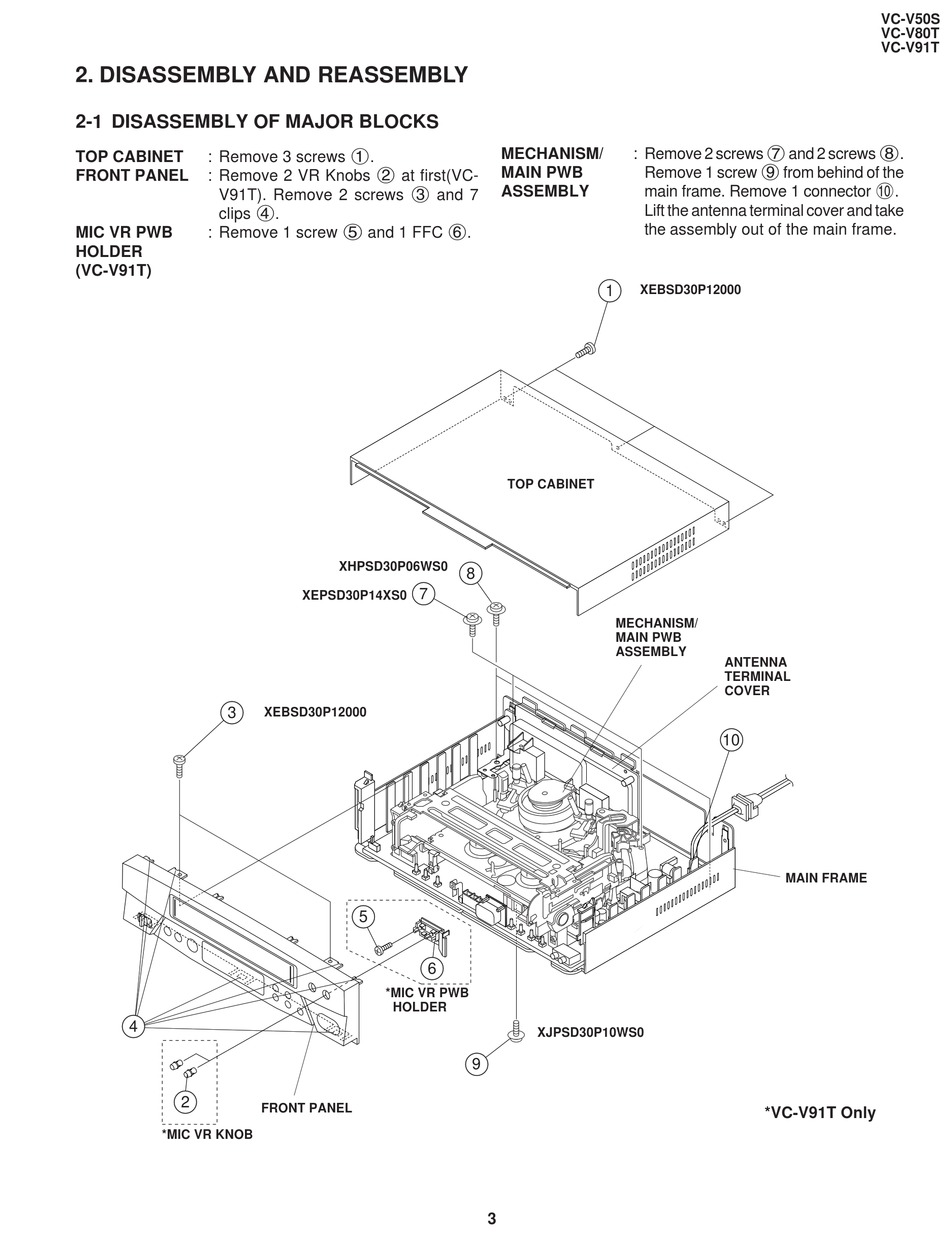

2. DISASSEMBLY AND REASSEMBLY

2-1 DISASSEMBLY OF MAJOR BLOCKS

: Remove 3 screws 1.
TOP CABINET
: Remove 2 VR Knobs 2 at first(VC-
FRONT PANEL
V91T). Remove 2 screws 3 and 7
clips 4.
: Remove 1 screw 5 and 1 FFC 6.
MIC VR PWB
HOLDER
(VC-V91T)
3
4
2
*MIC VR KNOB
XHPSD30P06WS0
7
XEPSD30P14XS0
XEBSD30P12000
5
6
*MIC VR PWB
HOLDER
FRONT PANEL
: Remove 2 screws 7 and 2 screws 8.
MECHANISM/
Remove 1 screw 9 from behind of the
MAIN PWB
main frame. Remove 1 connector 0.
ASSEMBLY
Lift the antenna terminal cover and take
the assembly out of the main frame.
1
XEBSD30P12000
TOP CABINET
8
MECHANISM/
MAIN PWB
ASSEMBLY
XJPSD30P10WS0
9
3
VC-V50S
VC-V80T
VC-V91T
ANTENNA
TERMINAL
COVER
10
MAIN FRAME
*VC-V91T Only
