DCI DigiTrak SE System Quick Start Manual page 5

Basic Locating
1. Find FLP and RLP by centering the target ball in the box.
2. At FLP, hold trigger for predicted depth reading.
3. Find LL by centering the line in the box between FLP and RLP
(see Locate screen on page 4).
4. View depth by holding trigger at LL.

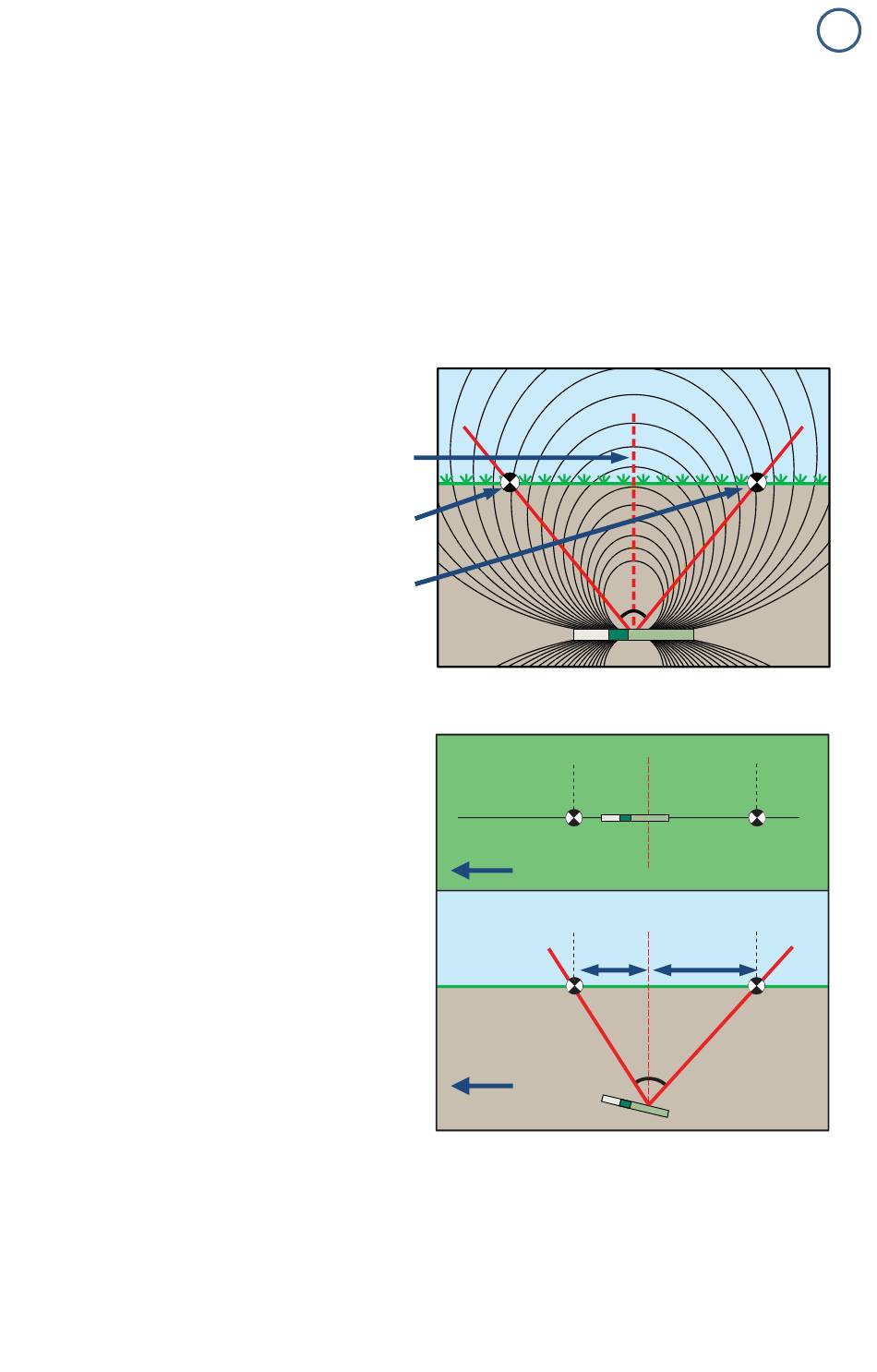

Transmitter Signal Field Geometry
» Level
Transmitter
» Pitched
Transmitter
FLP and RLP are
not equidistant
from the LL when
the transmitter is
pitched.
LL: Locate
Line
RLP: Rear
Locate Point
FLP: Front
Locate Point
Bird's-eye view
Side view
RLP
Drill rig
RLP
Drill rig
Side view
70°
LL
FLP
LL
FLP
30° 40°
5
