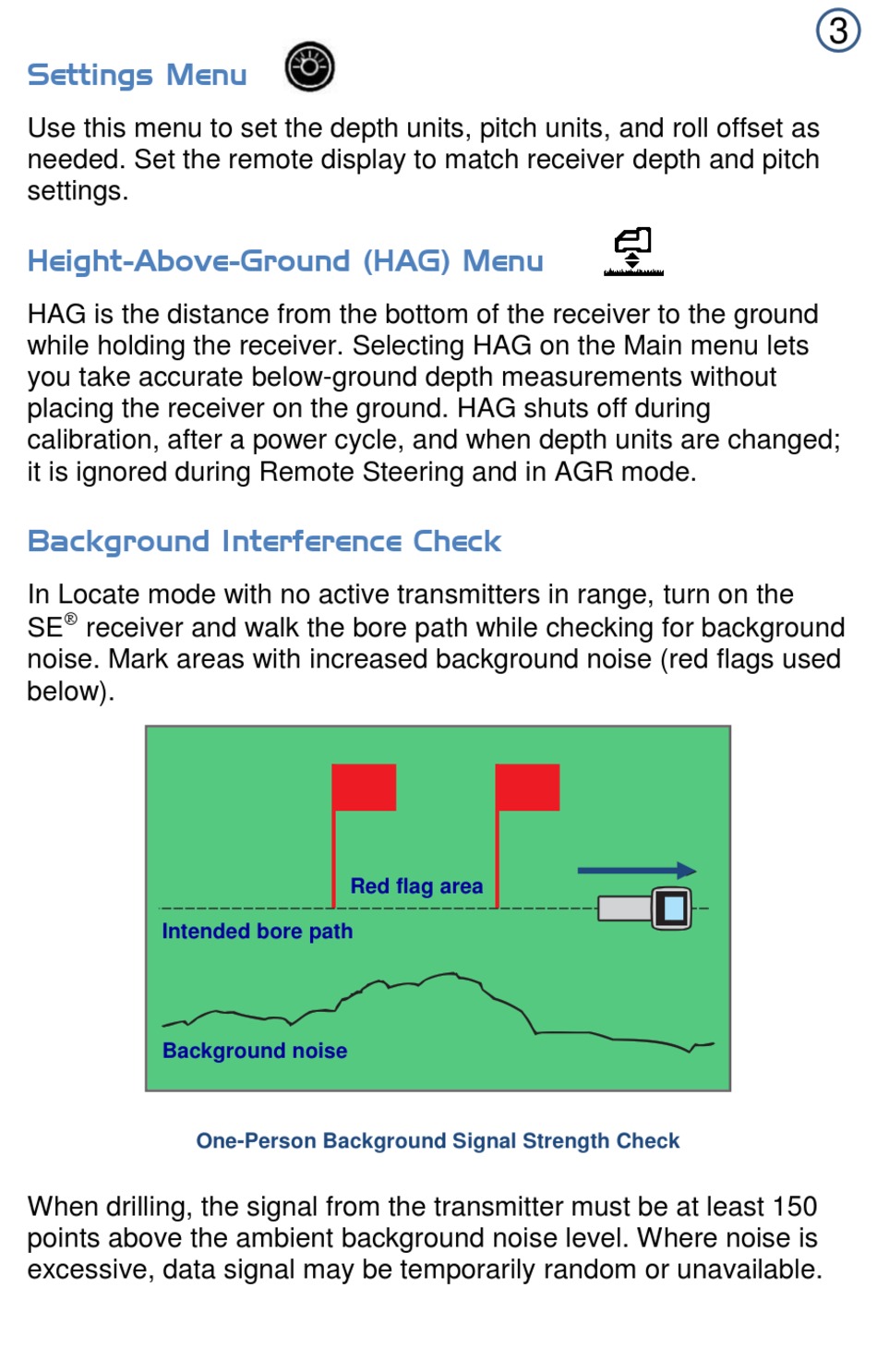

Settings Menu

Use this menu to set the depth units, pitch units, and roll offset as
needed. Set the remote display to match receiver depth and pitch
settings.
Height-Above-Ground (HAG) Menu
HAG is the distance from the bottom of the receiver to the ground
while holding the receiver. Selecting HAG on the Main menu lets
you take accurate below-ground depth measurements without
placing the receiver on the ground. HAG shuts off during
calibration, after a power cycle, and when depth units are changed;
it is ignored during Remote Steering and in AGR mode.
Background Interference Check
In Locate mode with no active transmitters in range, turn on the

SE receiver and walk the bore path while checking for background
noise. Mark areas with increased background noise (red flags used
below).
Intended bore path
Background noise
When drilling, the signal from the transmitter must be at least 150
points above the ambient background noise level. Where noise is
excessive, data signal may be temporarily random or unavailable.
Red flag area
One-Person Background Signal Strength Check
3
