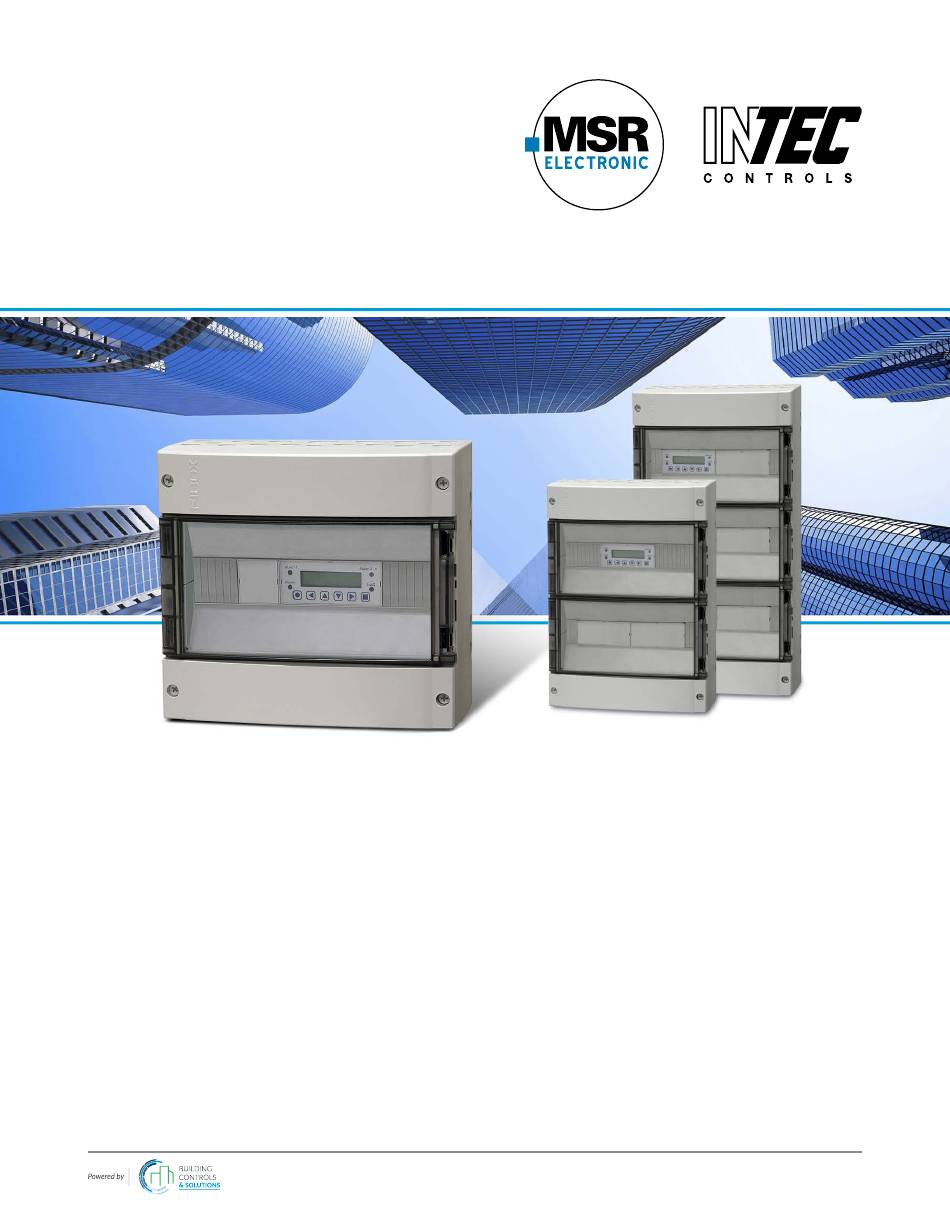

- Page 1 2 DGC6 ® User Manual Software Controller from version 1.01.00 with Display Version 1.00.09 May 2016 March 03, 2020 – Revision INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
-
Page 2: Table Of Contents
4.8.2.8 OR Operation of Fault to Alarm / Signal Relay ................27 4.8.2.9 OR Operation of Maintenance to Alarm / Signal Relay ..............27 INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... - Page 3 5.1 Intended Product Application ........................41 5.2 Installer’s Responsibilities ......................... 41 5.3 Maintenance .............................. 41 5.4 Limited Warranty ............................41 INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
-
Page 4: Application
In latching mode, the alarm must be reset manually at the triggering device after falling below the threshold. This function is required for combustible gases detected by catalytic bead sensors generating a falling signal at too high gas concentrations. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 5: Special Status Mode
At empty battery voltage, the battery is separated from the circuit (function of deep discharge protection). When the power is restored, there will be an automatic return to the charging mode. No settings and therefore no parameters are required for the UPS functionality. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 6: Operating Instruction
Set the desired parameter / setpoint. Save the changed value, confirm storage (ENTER). Cancel storage / close editing / go back to previous higher menu level (ESCAPE function) INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 7: Code Levels
- to acknowledge faults - to set date and time - to configure and to operate the data logger option, after activation of the operation mode “Service Mode” - to read all parameters - to manually operate test INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 8: Menu Overview
Parameters See from 4.7 Reading and change of the relay, measuring point Parameters and system parameters (security-relevant) See from 4.8 INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 9: Fault Management
Example: Communication error DP01 Error 05.02 10:38 DP 1 Error Acknowledge the fault message? Reset? Fault message acknowledged. DP 1 Error Cancelled Fault acknowledged INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 10: System Messages And Errors
These errors can only be transmitted when the connection to the central (or tool) is intact. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... - Page 11 (0x8100) Signal of sensor element at the sensor head is out of range. Cause: Wire break at sensor element input, sensor drift too high, defective. Solution: Recalibrate sensor, replace it. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
- Page 12 Wire break or device defective. Solution: “XXX FC: 0xXXXX” Occurs, if there are several errors from one measuring point. Cause: Several causes. Solution: See the specific errors. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
-
Page 13: Status Alarm
(C) and additionally the average value (A). Main menu Submenu D1 CO D1 CO A! 120.0A 150.0C #! 120.0A 150.0C A1 CO ?! 132.7A 162.7C INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... - Page 14 Communication error, or signal out of the measuring range Locked SP locked SP was temporarily locked by the operator. The information ConfigError has priority to maintenance information. Alarm information is always displayed with “!”, even if ConfigError or maintenance information are active. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
-
Page 15: Maintenance Information
Maintenance date, stored in the display; Maint. date after expiry, only message in the display, XX.XX.XXXX no other external reporting. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 16: Menu Data Logger
CVMMTT.csv, with MM standing for the current month and TT standing for the current day. Every day, a new file with the current date is generated. This makes sure that the files won’t be too big to be still edited by established PC programs. Internal structure of the file INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... - Page 17 0x9000 = Communication error of sensor board of measuring point e.g. 0xB000 = Communication error of head of measuring point Each error is marked by the prefix 0x. In this way the file keeps a fixed structure and can be evaluated with Excel and graphed according to the chronological sequence. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
-
Page 18: Cv Log Rate
All active alarms of the SP are always written if there is any change of an alarm. The reset of an alarm is documented by an empty column. This shows how long the alarm has been active. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 19: Error Status
From the sixth column on, there is the plain text of the error code. If several errors are coded so you can read multiple entries here. Every internal restart of the system (system reset) is also documented in the current day file. Frequent reboots (several times per day) may point to a technical problem. Please consult the installer as soon as possible. Info Date Time DGC06 Reset 30_03_12 13_38_19 INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 20: Display Parameter
Selection of the menu language. Symbol Description Default Function USA English German English Language USA English Dutch English French Swedish (Spanish only on request) INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 21: Mm.dd.yy Number
Currently Address X Bus interface only Modbus available (pay attention to the additional documentation of the protocol) INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 22: Menu Sp Parameter
See 4.8.3 Parameters System Setup See 4.8.4 Alarm Relay See 4.8.5 Test Function Signal Relay See 4.8.5 Test Function Analog Outputs See 4.8.6 Test Function INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 23: Service
OFF = No reading and changing of parameters. Service ON = Controller in Special status mode, parameters can be read and changed. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 24: Menu Relay Parameter
Delay OFF Time See 4.8.2.7 Collective fault OR operation Function Fault See 4.8.2.8 Maintenance OR operation Function Maint. See 4.8.2.9 INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 25: Relay Mode
Enter time for automatic reset function or recurrence function in s Time 0 = no reset function Assignment, which digital input resets the relay. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 26: External Override Of Alarm / Signal Relay Via Di
As long as DI 0 is closed, relay switches to ON DI 0 As long as DI 0 is closed, relay switches to OFF DI 0 External OFF INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 27: Delay Mode Of Alarm / Signal Relay
Symbol Description Default Function Alarm and/or signal relay isn’t affected if a maintenance message assignment occurs. Activated Alarm and/or signal relay turns on if a maintenance message assignment occurs. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 28: Menu Sp Parameters
C 100 ppm See 4.8.3.5 Hysteresis Hysteresis 10 ppm See 4.8.3.5 Delay time for alarm ON CV time ON delay See 4.8.3.6 INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 29: Activate - Deactivate Sp
Function unlocked = SP free, normal operation unlocked Lock mode unlocked locked = SP locked, SSM (collective fault message) active INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 30: Selection Gas Type With Unit
Methanol CH3OH 0-100 % LEL 3458 Methyl ethyl ketone MEK C4H8O 0-100 % LEL 3470 n-Octane C8H18 0-100 % LEL INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... - Page 31 20-2000 2060 2064 R123 R123 20-300 2077 R134a R134a 20-300 2063 R1234yf R1234yf 2065 R125 R125 2071 R401a R401a 20-2000 INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
-
Page 32: Measuring Range Definition
The range also affects the display of the measured values, alarm thresholds and hysteresis. For measuring ranges <10 three decimals places, <100 two decimal places, <1000 one decimal place are displayed. For measuring ranges => 1000, the display is without decimal place. The resolution and accuracy of the calculation is not affected by the different measuring ranges. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 33: Stage Setpoint / Hysteresis
Alarm - 1 2 3 4 0 = No latching Latching SP 0 0 0 0 SBH - 0 0 0 0 1 = Latching INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 34: Sp Fault Assigned To Alarm
0 = SP Signal isn’t assigned to any analog output or no release in the System Setup (means also: no active output control) INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 35: Menu System Setup
See 4.8.4.9 4.8.4.1 System Information Symbol Description Default Function XXXX Serial Number Serial number XX.XX.XX Date of Manufacture Date of manufacture INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 36: Service Interval
BI : 1-96 DI address via MSB 4.8.4.7 GC Address As yet no function is assigned, no display of GC address the current menu! INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 37: Analog Output
There is a maximum of 20 entries for IN relays and OUT relays. Thus it is possible, for example, to expand one relay to 19 others or to double max. 20 relays. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... - Page 38 This means that relay AR7 switches with AR12; AR8 with AR13; AR9 with AR14. IN OUT 1: AR 7 AR 12. IN OUT 2: AR 8 AR 13. IN OUT 3: AR 9 AR 14. The two examples can be mixed up, too. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
-
Page 39: Test Function Of The Alarm And Signal Relays
Relay Status Manual OFF = Relay manual OFF Manual ON = Relay manual ON Automatic = Relay in automatic mode INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 40: Test Function Of The Analog Outputs
As the current set point is AO 1 Preset transmitted again and again, the 12.00mA 12.00mA confirmation appears in the display at the left. INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com... -
Page 41: Notes And General Information
2 DGC6. ® If the PolyGard 2 DGC6 needs to be returned, an authorized RMA number issued by INTEC Controls is required. ® INTEC Controls | 12700 Stowe Drive, Suite 100, Poway, CA 92064 | Ph: (858) 578.7887 & (888) GO.INTEC | inteccontrols.com...
