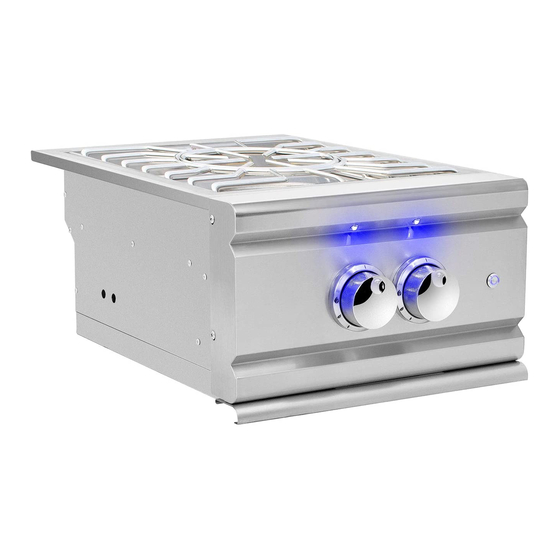

- Page 1 PO W ER B UR N ER M A N UA L...
- Page 3 TH A NK YOU Thank you for your purchase. We’d like to welcome you to the Summerset family of luxury outdoor kitchen products and look forward to being a part your home for years to come. As a family business with over 30 years of industry experience, we aim to deliver exceptional quality and personal service.
- Page 4 S A F ET Y A N D I N S TA L L AT ION INSTRUC TIO NS IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION WARNING! WARNING! Improper installation, adjustment, IF YOU SMELL GAS alteration,service, maintenance Shut off the gas to the appliance. cause injury or property damage.
- Page 5 Do not repair or replace any part of the Power Burner unless specifically recommended by this manual. A qualified technician should perform all other necessary service. • The Summerset Power Burner is not designed/certified for and cannot be installed in or on recreational vehicles, portable trailers, boats or any other mobile vehicle. •...
-
Page 7: Table Of Contents
TA BLE O F CON TE N TS Replacement Parts List Exploded View Before Operating Installation Gas Requirements Maintenance Tips Lighting The Power Burner Liquid Propane Installation Warranty... - Page 8 RE PL AC E ME N T PA R TS L I ST PART DESCRIPTION Handle Hood plate Rubber block Inner grate Outer grate Body assembly Fire cover Fire cover base Φ Mid burner orifice 1.5(LP) Φ Mid burner orifice 2.35(NG) Burner base Right angle fitting...
- Page 9 R EPL ACE M E N T PA R TS L IS T / ME A SUR E M E NTS 27 28 29 30 37 38 39 40 33 34 22.013 559.13 18.504 3.346 13.504 15.748 1.307 1.307 33.20 33.20...
-
Page 10: Before Operating
B E F ORE OPER AT IN G SHIPMENT ARRIVING DAMAGED: CONSTRUCTION ZONES Keep all stainless steel products away from VISIBLE DAMAGE construction zones. Construction debris such as If your shipment arrives with visible damage to (but not limited to) stone dust, stucco, and lime the box/carton, be sure the damage is noted on dust could damage or permanently discolor the bill of freight or express receipt and signed... -
Page 11: Installation
B E F O RE OPE R ATI NG / IN STA LL ATION ENSURING PROPER COMBUSTION AIR AND MINIMUM PRESSURE REQUIREMENTS COOLING AIR FLOW Ensure the gas supplied meets the minimum You must maintain proper air flow for your power pressure requirements. -
Page 12: Gas Requirements
G A S R EQU IR EM EN TS of local codes, with either the national Fuel Gas sealants that are approved for use with natural Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, and LP gases. An installer-supplied Natural Gas Installation Code or CAN/CGA-B149.2, gas shutoff valve must be installed in an accessible Propane Installation Code. - Page 13 Do not use any replacement regulator other not have any cuts and wear that may affect the than that specified by Summerset. Use only pipe safety before each use. Only the factory supplied sealants that are approved for use with natural regulator must be used.
-
Page 14: Maintenance Tips
G A S RE QU I RE ME NTS / M A IN TE N A N C E Be extra careful when cleaning around the highlights. Metal polisher or mild chrome cleaner can be used to bring back the luster on highlights. To touch-up minor scratches in the stainless steel, sand the affected surface very lightly, with 100-dry grit emery sandpaper in the direction of the grain. -
Page 15: Lighting The Power Burner
LI G H T I N G PO W E R BU RN E R Inspect the gas supply piping or hose prior to Important: If burner fails to light within 5 seconds, turning the gas ON. If there is evidence of cuts, turn off gas and wait 5 minutes before repeating wear, or abrasion, it must be replaced prior to the process. -
Page 16: Liquid Propane Installation
L IQ U I D PROPA NE IN S TA L L ATI ON LIQUID PROPANE INSTALLATION A dented or rusty LP cylinder may be hazardous and should be avoided. If in doubt, have it NOTE: Ventilation is require in the enclosure checked by your LP supplier. -
Page 17: Warranty
One year warranty on all other parts, components and electrical Summerset Professional Grills Warranty is valid for original purchaser at original site of delivery with proof of purchase and photo documentation only. Registration form must be submitted within 30 days of the purchase date to validate the warranty. - Page 18 Summerset line of barbecue Power Burners, components, and more. With over 20 years of leadership in branding and manufacturing, our core focus is to provide exceptional customer service with an unparalleled...
