Quick Installation Guide

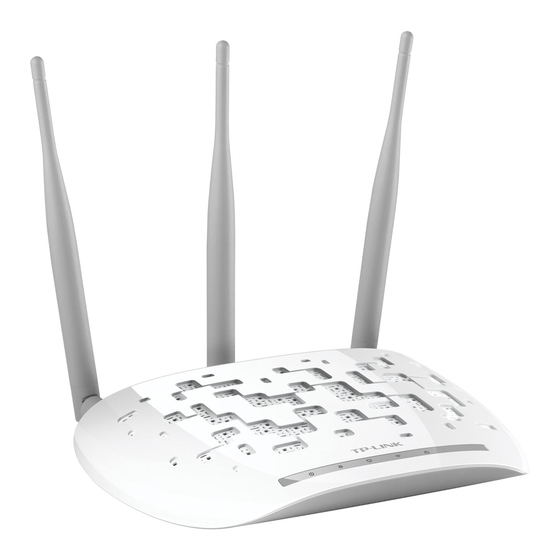

TL-WA901N is used for demonstration in this guide.
Images may differ from actual product.
Setup with videos
Scan QR code or visit
www.tp-link.com/support/setup-video/

Configure the Access Point

Access Point Mode (Default)

Internet
Existing Router
1. Connect the access point according to Step A to D in the diagram.
2. Turn on the power, and wait until the Power (
and stable.
3. Use the default SSID and Password printed on the label of the access point to
join its Wi-Fi network.
Note: You can surf the internet now. For your wireless network security, it is recommended to change the default SSID
(network name) and the password of your Wi-Fi network. To do so, perform the following steps.
Range Extender Mode
Internet
1. Connect the access point according to Step A and B in the diagram.
2. Turn on the power, and wait until the Power (
and stable.
3. Use the default SSID and Password printed on the label of the access point to
join its Wi-Fi network.
4. Launch a web browser and enter http://tplinkap.net. Create a password to log in.
• Halfway is the best way.
Generally, the ideal location for a repeater is about halfway between your wireless router and your
wireless clients and make sure that the location you choose is within the range of the host router. If
that is not possible, place it closer to your wireless router to ensure stable performance.
• Less obstacles ensure better performance.
Choose a location with less obstacles around that may block the signal between the access point and
the host network. An open corridor or a spacious location is ideal.
• Less interference provides more stability.
Choose a location away from Bluetooth devices and other household electronics, such as cordless
phones, microwaves, and baby monitors to minimize signal interference.
Transforms your existing wired network to a wireless one.
B D
) and Wireless ( ) LEDs are lit
Extends the range of an existing Wi-Fi network.
Host AP's SSID
B
) and Wireless ( ) LEDs are lit
Tips for Optimal Wireless Signal

Before your start

Which mode do you need? Refer to the table to choose a proper mode.
Scenario
You want to transform your wired (Ethernet) network to a
wireless one.
You are in a Wi-Fi dead-zone or a place with weak wireless
signal. You want to have a larger effective range of the
wireless signal throughout your home or office.
You have a wired device with an Ethernet port and no wireless
capability, for example, a Smart TV, Media Player, or game
console. You want to connect it to the internet wirelessly.
You want to connect your devices to different wireless
networks and become isolated by VLANs.
TL-WA901N's SSID
A
C
4. Launch a web browser and enter http://tplinkap.net. Create a password to log in.
5. Click Quick Setup, select Access Point mode and click Next. Follow the
step-by-step instructions to complete the configuration.
6. Now, reconnect your wireless devices to the new Wi-Fi network.
Enjoy!
TL-WA901N's SSID
A
5. Click Quick Setup, select Range Extender mode and click Next. Follow the
step-by-step instructions to complete the configuration.
6. Relocate the access point to a suitable place. For details, refer to the tips below.
7. Now, connect your devices to the access point wirelessly or via an Ethernet
cable.
Enjoy!
Router
Operation Mode
Access Point Mode
(Default Mode)
Range Extender Mode
Client Mode
Multi-SSID Mode
Other
TV
OR OR Wired
Devices
Devices
Halfway
