- Page 1 LINK 210 Installation Guide...
-
Page 2: Table Of Contents
Understanding your LINK 210 - NEW........ - Page 3 RFC1321-based (RSA-free) MD5 library........19 Webfleet Solutions Limited Warranty....... . 21...
-
Page 4: What's In The Box

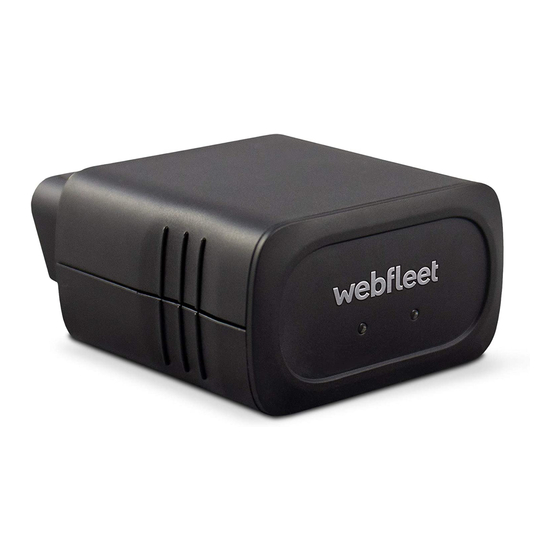

What’s in the box LINK 210 ▪ 1. OBD-II connector. 2. Yellow LED - connection status indicator 3. Green LED - system status indicator Two QR-Code labels ▪ Installation booklet ▪... -
Page 5: Read Me First
With WEBFLEET you are connected to your people out on the road in a smart and easy way. LINK 210 is a GPS receiver and mobile network module in one unit, providing the vehicle’s current position. You can use the LINK 210 in vehicles equipped with an OBD-II port. -
Page 6: Safety First
Repairs must be carried out by authorised and qualified personnel only. Never replace damaged parts of the unit yourself. Send the defective unit to Webfleet Solutions for repair. Only the qualified staff of Webfleet Solutions are authorised to repair or replace parts. -
Page 7: Preparations
A device with internet connection and software to scan and read QR codes. ▪ The login credentials to the LINK Toolkit app. ▪ The QR code of the LINK 210, which is printed on a sticker on the bottom of the ▪ device. Activating your LINK 210 using Webfleet Solutions activation webpage To activate your LINK 210 via the activation webpage you need the following: A computer or a smartphone with internet connection. -
Page 8: Connecting The Link 210
Make sure the cable does not interfere with the driver's actions. 4. Start the engine of your vehicle. The green LED of your LINK 210 is permanent on to show the device is properly connected to the vehicle and the engine is running. 5. Turn off the ignition. -
Page 9: Configuring The Link 210 For Fuel Consumption Reporting
4. Select the LINK 210 device type. 5. Scan the QR-Code of your LINK 210. The LINK Toolkit app shows the status screen for the selected LINK 210 device. Important! Make sure the LINK 210 device shows the status Activated. - Page 10 The Configuration view is shown. 10. In the Fuel reporting section, enter the power in kW and the size in ccm of the engine of your vehicle in the fields for Engine power (kW) and Engine size (in ccm). 11. Tap on Apply. The LINK Toolkit app confirms the successful configuration.
-
Page 11: Diagnostics
Activate device. ▪ Application is running, device is activated. You can monitor the connection of your LINK 210 to the mobile network by looking at the yellow connection LED and referring to the table below. YELLOW LED mode Not connected - No mobile network coverage. -
Page 12: Troubleshooting
Connected. Troubleshooting If your LINK 210 does not report trips to WEBFLEET properly anymore, the device may need to be reset. For this please contact the Webfleet Solutions Customer Support. If you experience technical issues or have frequently asked questions, please go to the Customer Support Portal on http://www.webfleet.com/support/... -
Page 13: Technical Data
Operating voltage* 9 - 30 V to be fused with max. 10A * Internally fused with 1A, fuse is not resettable or replaceable, fuse must be replaced by Webfleet Solutions only Temperature Operation: -20 °C to +50 °C / -4 °F to +122 °F Storage: -20 °C to +50 °C / -4 °F to +122 °F... -
Page 14: Addendum
Webfleet Solutions does not guarantee the error-free operation of this device nor the accuracy of route suggestions provided and shall not be liable for any penalties arising from your failure to comply with applicable laws and regulations. -
Page 15: Ce Mark And Radio Equipment Directive For Link 210
GSM: 2W, 33 dBm for 900MHz, 1W, 30 dBm for 1800 MHz, ▪ Hereby, Webfleet Solutions declares that the radio equipment type LINK 210 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.webfleet.com/... -
Page 16: Operating Temperature
Information regarding the use of personal information can be found at: www.webfleet.com/privacy. WEBFLEET If your vehicle is configured to connect to WEBFLEET services, it will collect information for the purposes of the WEBFLEET service while the vehicle is in use in association with other WEBFLEET equipment installed in the vehicle. -
Page 17: Eu Specific Absorption Rate (Sar) Compliance
The information is subject to change without notice. Webfleet Solutions shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the performance or use of this document. -
Page 18: Webfleet Telematics Service Platform
WEBFLEET Telematics Service Platform To use the LINK 210 you need a valid and active WEBFLEET Telematics Service Platform subscription. Accessories supplied with this device Basic installation guide ▪ Accessories not supplied with this device OBD-II extension cable ▪ Terms and conditions: Limited warranty... -
Page 19: Copyright Notices
Copyright notices © 2019 Webfleet Solutions. All rights reserved. WEBFLEET is a registered trademark of Webfleet Solutions B.V. or one of its Affiliates. Copyright (c) 2018 - Tcl/Tk - Regents of the University of California, Sun Microsystems, Inc., Scriptics Corporation, and other parties https://www.tcl.tk/... - Page 20 L. Peter Deutsch ghost@aladdin.com...
-
Page 21: Webfleet Solutions Limited Warranty
HOW TO MAKE A WARRANTY CLAIM 3 In order to make a claim of a Defect, you must contact Webfleet Solutions during the Warranty Period via www.webfleet.com to explain the Defect and to obtain an RMA number (Return Materials Authorization) if necessary. You must return the Hardware during the Warranty Period, along with the RMA number provided by Webfleet Solutions and an explanation of the Defect, to the address provided to you by Webfleet Solutions. - Page 22 8 This Limited Warranty cannot be transferred to any other person. LIMITATION OF LIABILITY 9 Neither Webfleet Solutions nor its suppliers shall be liable to you or to any third party for any damages either direct, indirect, incidental, consequential or otherwise (including in each case,...
