2. Attach the BL2100 main board to the plastic enclosure base.
Position the BL2100 main board over the plastic enclosure base as shown below in
Figure 3. Attach the BL2100 to the base using the four 4-40 × ¼ screws supplied with the
enclosure base.
DI08

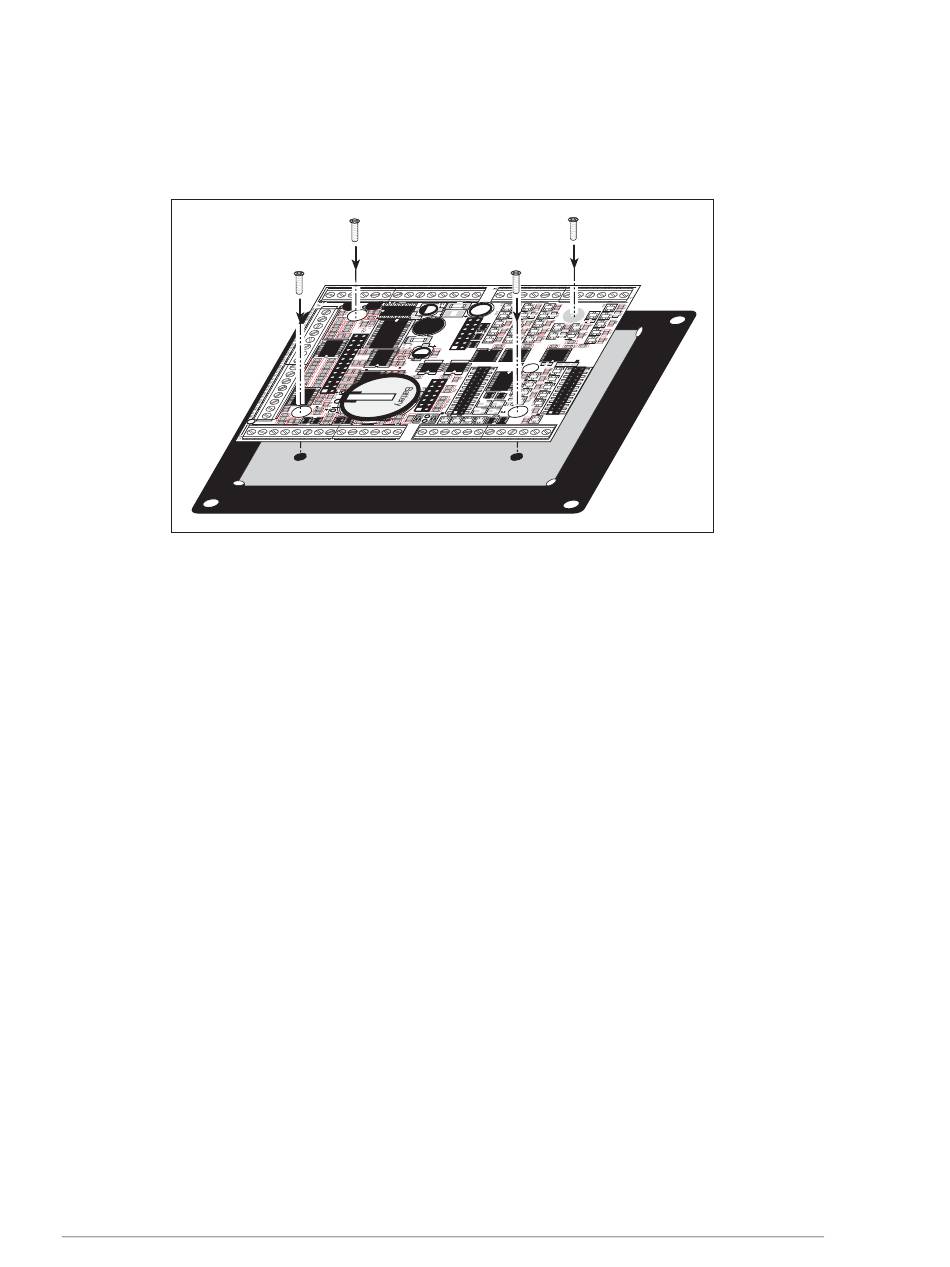

Figure 3. Attach BL2100 Main Board to Plastic Enclosure Base
The plastic enclosure base facilitates handling the BL2100 during development, and pro-
vides an attractive mounting alternative. Alternatively, you may wish to use standoffs to
protect the components on the other side of the board. The plastic enclosure base is offered
as a separate option when individual BL2100 boards are purchased.
NOTE: Appendix D, "Plastic Enclosure," provides additional information and specifications
for the plastic enclosure.
