Summary of Contents for SOLZAIMA SZM W Plus 25kW

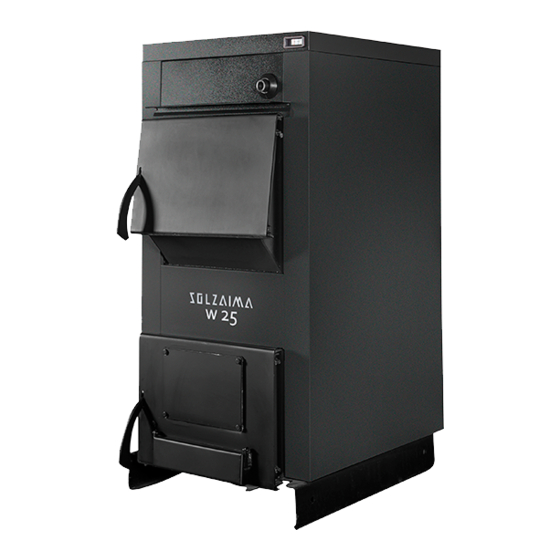

- Page 1 Wood Fired Boiler Instruction Manual English Model Wood Fired Boiler SZM W Plus 25kW, 30kW, 35kW and 40 kW Read these instructions carefully before installing, using and servicing the unit. The instruction manual is an integral part of the product. Mod.
- Page 2 * SOLZAIMA disclaims any responsibility for damages to the unit if installed by non- qualified personnel; * SOLZAIMA is not responsible for any damage to units not installed and used in compliance to the instructions included in this manual; * All local regulations, including but not limited to national and European standards, must be observed when installing, operating and servicing the unit;...
-
Page 3: Table Of Contents
Contents 1. Package content ..................2 1.1. Unpacking the boiler ................2 2. Safety Precautions ................2 2.1. For your safety, please remember ............3 3. Technical Specifications ................3 4. Wood Boiler Installation ................8 5. Installing the Ventilation Kit (optional) ............9 6. - Page 4 Solzaima Solzaima's vision has always been to provide the cleanest, renewable and more cost- effective energy possible. This is why for more than 40 years we've been dedicated to manufacturing biomass heating units and solutions. As a result of the persistence and unconditional support from a network of partners,...
-
Page 5: Package Content
2. Safety Precautions Solzaima shall not liable for any damages to the unit caused by failure to comply with the specified precautions, warnings and operating procedures. The units manufactured by Solzaima are easy to operate, special attention was given to their components to prevent accidental damages to users and installers. -
Page 6: For Your Safety, Please Remember
This manual is provided with the product. Please keep it close to the unit. 2.1. For your safety, please remember The wood fired boiler is a biomass heating unit. Be sure to carefully read and understand the information contained in this book, before handling or operating the unit;... - Page 7 combustion chamber (Figure 1), sturdy and user-friendly. This is an atmospheric (natural draught) boiler. The boiler is equipped with two doors: - Lower door: provides access to the area where the ashes fall through the grids, for cleaning purposes. It is equipped with a lid for the connection of the combustion auto-regulator.
- Page 8 Depth 1100 1100 1100 1100 Diameter of the fume discharge pipe Maximum heating m³ capacity Wood log maximum length Maximum thermal power (water) Fuel consumption 4,95 kg/h * Thermal yield at reduced thermal 89,8 90,2 90,6 90,7 power ** Thermal yield at rated thermal power CO Emissions with 0,044...
- Page 9 Front Back Side Thermal safety valve probe inlet Safety Hot water Safety valve Temperature Thermal Thermostat outlet probe safety valve Opening of the output regulator Filling and Cold water inlet Primary air draining intake Figure 2 - Hydraulic connections Opening output regulator ¾”...
- Page 10 Placing probe 1/2" Thermal safety Drainage outlet valve probe 1/2” 3/4” water outlet 1.1/4” Thermal safety valve probe inlet 3/4"...
-
Page 11: Wood Boiler Installation
Filling Cold water inlet draining 1/2" 1.1/4” Figure 3 - Hydraulic connections 4. Wood Boiler Installation Before starting the installation, perform the following actions: Check immediately after receipt if the delivered product is complete and in good condition. Any defects should be noted before installing the appliance. ... -
Page 12: Installing The Ventilation Kit (Optional)
5. Installing the Ventilation Kit (optional) Before installing the ventilation kit, you should immediately check that the kit is complete and in perfect condition (Figure 4), any damage or lack of elements should be reported and marked before proceeding with its installation. This chapter will demonstrate how the optional ventilation kit should be installed. - Page 13 Figure 6 – Placing the fan 3 – Place the controller on top of the boiler so that it is able to connect the fan cable and is aligned with the side enclosure, as exemplified in Figure 7-a and Figure 7-b, fix the controller with the 3 self-piercing screws as exemplified in Figure 7-c.
- Page 14 Figure 8 – Placement of the temperature probe 5 – The controller has two connections, one to the circulator and one to the fan (Figure 9-a), connect the fan cable to the controller on the corresponding plug (Figure 9-b), connect the power cable (Figure 9-c), and connect to the circulator of the Figure 9-d installation.
- Page 15 fan starts again for a period of 15 min after that time, if the temperature does not reach the Set Point value of "VALV M" the fan switches off. To start the fan again, it will be necessary to give the order manually. Led PUMP VENTILATOR Led “OFF”...
-
Page 16: Installation Requirements
6. Installation Requirements The minimum distances from the wood boiler to flammable surfaces are shown in Figure 11. At the top of wood boiler, it is necessary to maintain a minimum distance of 100 cm from the ceiling of the room especially if they contain flammable material in their composition. - Page 17 Figure 12 – Side view of the installation, with the inspection point Figure 13 – Example of typical installation NOTICE! Keep combustible and flammable materials at a safe distance.
-
Page 18: Installing Pipes And Fume Exhaust Systems
7. Installing pipes and fume exhaust systems The construction of the gas exhaust pipe must be suitable for the purpose in accordance with local requirements and respecting the regulations. Important! An inspection T must be inserted at the outlet of the exhaust ... -
Page 19: Hydraulic Installation
* The thermostat should be diving, and just like the combustion regulator, it should be applied to the hot water outlet pipe; * Solzaima advises an open pot installation, and the pipe connecting it to the boiler return should not have a diameter of less than 20 mm. No vents should be installed;... -
Page 20: Calculation For The Minimum Volume Of The Buffer Tank
* It is essential to be able to access the various components of your hydraulic installation during the useful life of your equipment in order to be able to carry out regular maintenance and intervene or replace components that are necessary over time. - Page 21 working. In practice, for heating, it assumes the conventional value of 0,035; C = the total water content of the system (l); Pi = initial absolute pressure (bar) at an elevation that is installed on the vessel, represented by the hydrostatic pressure + 0,3 bar + atmospheric pressure (1 bar). In practice it is the preload pressure of the vessel increased from 1 bar;...
-
Page 22: Fuel
9. Fuel Please note: all regulations and standards have to be met in the installation of this equipment. * Only dry wood should be used in this type of equipment. It cannot be used as an incinerator and other materials such as coal, wood with paints, varnishes, thinners, liquid fuels, glues and plastics should be excluded. - Page 23 (+): Greater supply by loggers Table 3 - List of firewood type that can be used in a SOLZAIMA equipment, their geographical distribution and Calorific Value/Reactions NOTICE! The unit may NOT be used as an incinerator.
-
Page 24: First Use
10. First Use Before starting the appliance, you should check the following points: * Ask the installer to start the equipment, having verified the operability of the installation; * In the first use of the wood-fired boiler the paint is cured, which can lead to the production of additional fumes. -
Page 25: Lighting
11. Lighting * Fully open the chimney registry; * Open the lower door and the front grille; * Lay a few pine cones (preferred) or fire fighters on the ash grate (Figure 15); * Put small wood; * The firing period is completed when the unit chassis reaches a stable temperature - the air admission setting is automatically controlled by the combustion regulator;... - Page 26 Figure 16 – Cleaning the combustion chamber Note: However, before starting to clean, you must allow the unit to cool down completely to prevent a burning accident.
-
Page 27: Installation Diagrams
13. Installation Diagrams Central heating installation diagram Figure 17 – Central heating installation diagram Central heating installation diagram and RHW Figure 18 – Central heating and RHW installation diagram... - Page 28 Installation diagram for central heating, RHW and solar panel with a backup pellet boiler Figure 19 – Installation diagram for central heating, RHW and solar panel with a backup pellet boiler...
- Page 29 Installation diagram for central heating, RHW, radiant heated floor and solar panel with a backup pellet boiler Figure 20 – Installation diagram for central heating and household water heating using a hot water tank Symbols Figure 21 – Symbols...
-
Page 30: Life Cycle Of The Wood Fired Boiler
Solzaima makes all efforts to learn and to know the national forest park while efficiently responding to energy demands, taking permanent care to maintain its biodiversity and natural wealth that are essential for the quality of life on our Planet. -
Page 31: Glossary
16. Glossary Ampere (A): SI unit of measurement of electric current bar: unit of pressure equal to exactly 100,000 Pa. This pressure is very close to standard atmospheric pressure. cal (Calorie): it is the amount of heat required to increase one degree centigrade the temperature of one gram of water. - Page 32 Heating capacity: also known as specific combustion heat. It represents the amount of heat released when a certain amount of fuel is completely burned. Calorific value is expressed in calories (or kilo calories) per unit of weight of fuel. Rated power: Electric power consumed from the energy source. Measured in watts. Rated net heating value: heating capacity, i.e.
-
Page 33: Warranty
17. Warranty All SOLZAIMA boilers have a 2 (two) year warranty, starting from the invoice issue date. In order for your warranty to be valid, you must keep the invoice or receipt of purchase throughout the warranty period. 17.1. Model specific conditions This model requires that the unit is subject to start-up for the warranty to be to activated. - Page 34 A term of 6 months from the date of delivery of the goods, in the case of professional, or industrial, or intensive use of the products - Solzaima means by professional, industrial or intensive use of all products installed in industrial spaces, commercial, or whose use exceeds 1500 hours per calendar year;...
- Page 35 At the time of the technical assistance to the Product, the Buyer must present, as proof of the Product Warranty, the purchase invoice of the same or another document demonstrating its acquisition. In any case, the document proving the acquisition of the Product must contain the identification of the Product (as mentioned in point 2 above) and its date of acquisition.
- Page 36 out, as indicated in the instruction and handling manuals accompanying the Product. Whenever requested, it must be proved by submitting the technical report of the entity responsible for it, or alternatively by registering them in the instruction manual in the dedicated section. 3.12 In order to avoid damage to the equipment caused by overpressure, safety elements such as pressure relief valves and / or thermal discharge valves, if...
- Page 37 Buyer, and the Buyer shall be responsible for any charges arising therefrom. 3.17 The Warranty is valid for the Products and equipment sold by Solzaima SA solely and exclusively within the geographical and territorial zone of the country where the Product was sold by Solzaima.
- Page 38 4.8. Defects caused by the use of accessories or replacement components other than those determined by Solzaima, S.A.; 4.9. Defects arising from non-compliance with the installation, use and operation instructions or applications not conforming to the intended use of the Product, or from abnormal climatic factors, unusual operating conditions, overload or maintenance or cleaning performed improperly;...
- Page 39 4.16. The installation of the equipment supplied by Solzaima, S.A. should contemplate the possibility of their easy removal, as well as points of access to the mechanical, hydraulic and electronic components of the equipment and the installation.
- Page 40 From the moment they are removed from the equipment, the Parts used are considered as waste. Solzaima as a producer of waste in the scope of its activity is obliged by the legislation in force to deliver them to a licensed entity that performs...
- Page 41 from giving them another destination, whatever. Therefore, the customer will be able to see the used parts resulting from the assistance, but cannot keep them in their possession. Administrative expenses In the case of invoices for services rendered, they are not processed in any stipulated period with default interest at the maximum legal rate in force.
-
Page 42: Statement Of Performance
18. Statement of Performance ECLARAÇÃO DE ESEMPENHO ECLARACIÓN RESTACIONES ECLARATION OF ERFORMANCE ÉCLARATION DE ERFORMANCE ICHIARAZIONE DELLE PRESTAZIONI DD-047 º 1. Código de identificação único do produto-tipo | Código de identificación único del tipo de producto | Unique identification code of the product type | Le code d'identification unique du type de produit | Codice unico di identificazione del tipo di prodotto SZM W PLUS 25 W –... - Page 43 Especificações técnicas Desempenho | harmonizadas | Especificaciones Características essenciais | Desempeño | técnicas armonizadas | Características esenciales | Performance | Harmonized technical Essencial characteristics | Prestazione specifications | Spécifications Caractéristiques essentielles techniques harmonisées | | Caratteristiche essenziali Specifiche tecniche armonizzate Maximum load Maximum load Potência...
- Page 44 Classe de emissão | Clase de emisiones | Emission class | Émision | Classe di emissione Emissão poeira (10% O Emisión de polvo (10% O Dust-emission (10% 37,8 mg/m ≤ 60 mg/m Émissions de poussières (10% ) | Emissione di poleveri (10% Classe de emissão | Clase de Class 5 According EN 303-5...
- Page 45 ECLARAÇÃO DE ESEMPENHO ECLARACIÓN RESTACIONES ECLARATION OF ERFORMANCE ÉCLARATION DE ERFORMANCE ICHIARAZIONE DELLE PRESTAZIONI DD-048 º 1. Código de identificação único do produto-tipo | Código de identificación único del tipo de producto | Unique identification code of the product type | Le code d'identification unique du type de produit | Codice unico di identificazione del tipo di prodotto SZM W PLUS 30 W –...
- Page 46 9. Desempenho declarado | Desempeño declarado | Declared performance | Performance déclarée | Dichiarazione di prestazione Especificações técnicas Desempenho | harmonizadas | Desempeño | Especificaciones técnicas Características essenciais | Performance | armonizadas |Harmonized Características esenciales | Prestazione technical specifications | Essencial characteristics | Spécifications techniques Caractéristiques essentielles...
- Page 47 (10% émission (CxHy) (10% emissione (CxHy) (10% O Class 5 According EN 303-5 Classe de emissão | Clase de emisiones | Emission class | Émision | Classe di emissione Emissão poeira (10% O Emisión de polvo (10% O Dust-emission (10% 39,2 mg/m ≤...
- Page 48 ECLARAÇÃO DE ESEMPENHO ECLARACIÓN RESTACIONES ECLARATION OF ERFORMANCE ÉCLARATION DE ERFORMANCE ICHIARAZIONE DELLE PRESTAZIONI DD-049 º 1. Código de identificação único do produto-tipo | Código de identificación único del tipo de producto | Unique identification code of the product type | Le code d'identification unique du type de produit | Codice unico di identificazione del tipo di prodotto SZM W PLUS 35 W –...
- Page 49 9. Desempenho declarado | Desempeño declarado | Declared performance | Performance déclarée | Dichiarazione di prestazione Especificações técnicas harmonizadas | Especificaciones Características essenciais | Desempenho | técnicas armonizadas | Características esenciales | Desempeño | Harmonized technica l Essencial characteristics | Performance | specifications | Spécifications Caractéristiques essentielles...
- Page 50 (CxHy) (10% emissione (CxHy) (10% O Class 5 According EN 303-5 Classe de emissão | Clase de emisiones | Emission class | Émision | Classe di emissione Emissão poeira (10% O Emisión de polvo (10% O Dust-emission (10% 40,5 mg/m ≤...
- Page 51 ECLARAÇÃO DE ESEMPENHO ECLARACIÓN RESTACIONES ECLARATION OF ERFORMANCE ÉCLARATION DE ERFORMANCE ICHIARAZIONE DELLE PRESTAZIONI DD-050 º 1. Código de identificação único do produto-tipo | Código de identificación único del tipo de producto | Unique identification code of the product type | Le code d'identification unique du type de produit | Codice unico di identificazione del tipo di prodotto SZM W PLUS 40 W –...
- Page 52 9. Desempenho declarado | Desempeño declarado | Declared performance | Performance déclarée | Dichiarazione di prestazione Especificações técnicas Desempenho | harmonizadas | Especificaciones Características essenciais | Desempeño | técnicas armonizadas Características esenciales | Performance | |Harmonized technical Essencial characteristics | Prestazione specifications | Spécifications Caractéristiques...
- Page 53 (CxHy) (10% émission (CxHy) (10% O ) | CO emissione (CxHy) (10% O Class 5 According EN 303-5 Classe de emissão | Clase de emisiones | Emission class | Émision | Classe di emissione Emissão poeira (10% O Emisión de polvo (10% O Dust-emission (10% 41 mg/m...
