Cudy POE15 User Manual

5
Maximum Distances for Power Sources

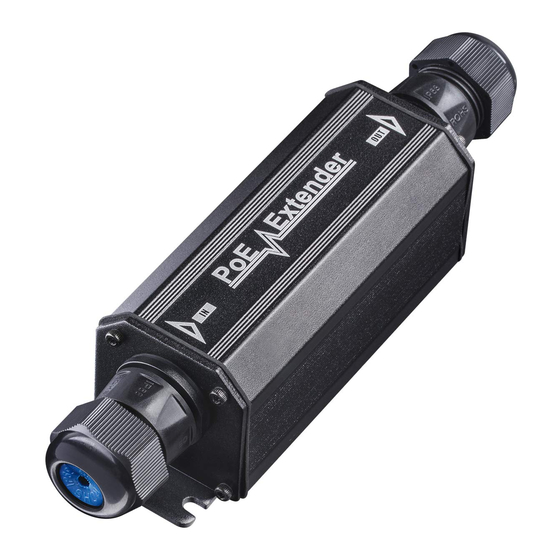

Multiple PoE Extenders can be connected every 100 meters to
obtain greater distances.The actual figures depend on operating
conditions.The range is over 24AWG or heavier Cat-5e or Cat-6
cable except where specified.
Examples for medium power PoE Devices (that are PoE Class 2,
or require under 6 watts)
PoE Source Maximum Distances
PoE switch
(802.3af,Output voltages 50V)
15W mid-span
(802.3af,Output voltages 50V)
PoE+ switch
(802.3at,Output voltages 50V)
30W mid-span
(802.3at,Output voltages 50V)
Examples for full power PoE Devices (that are PoE Class 0 or 3, or
require under 12 watts).
Examples for PoE+ Devices (that are PoE Class 4 that under 22
watts, or 802.3at compliant).
PoE Source
PoE switch
(802.3af,Output voltages 50V)
15W mid-span
(802.3af,Output voltages 50V)
PoE+ switch
(802.3at,Output voltages 50V)
30W mid-span
(802.3at,Output voltages 50V)
200M
EU declaration of conformity
200M
Cudy hereby declares that the device is in compliance with the
essential requirements and other relevant provisions of
directives 2014/30/EU, 2014/35/EU, 2009/125/EC and
300M
2011/65/EU.The original EU declaration of conformity may be
found at http://www.cudy.com/
300M
Support and Warranty
For support and warranty, please visit: http://www.cudy.com/.
Specifications are subject to change without notice. Cudy is a
registered trademark of Shenzhen Cudy Technologies Co., Ltd.
Other brands and product names are trademarks or registered
trademarks of their respective holders.
Copyright©Shenzhen Cudy Technology Co., Ltd. All rights reserved.
EU Address: Otto esser 2c, 65451 Kelsterbach, Germany
Maximum Distances
Not applicable
Not applicable
200M
200M
810600063
User Manual
Model: POE15
