Summary of Contents for PowerBoss Collector 26

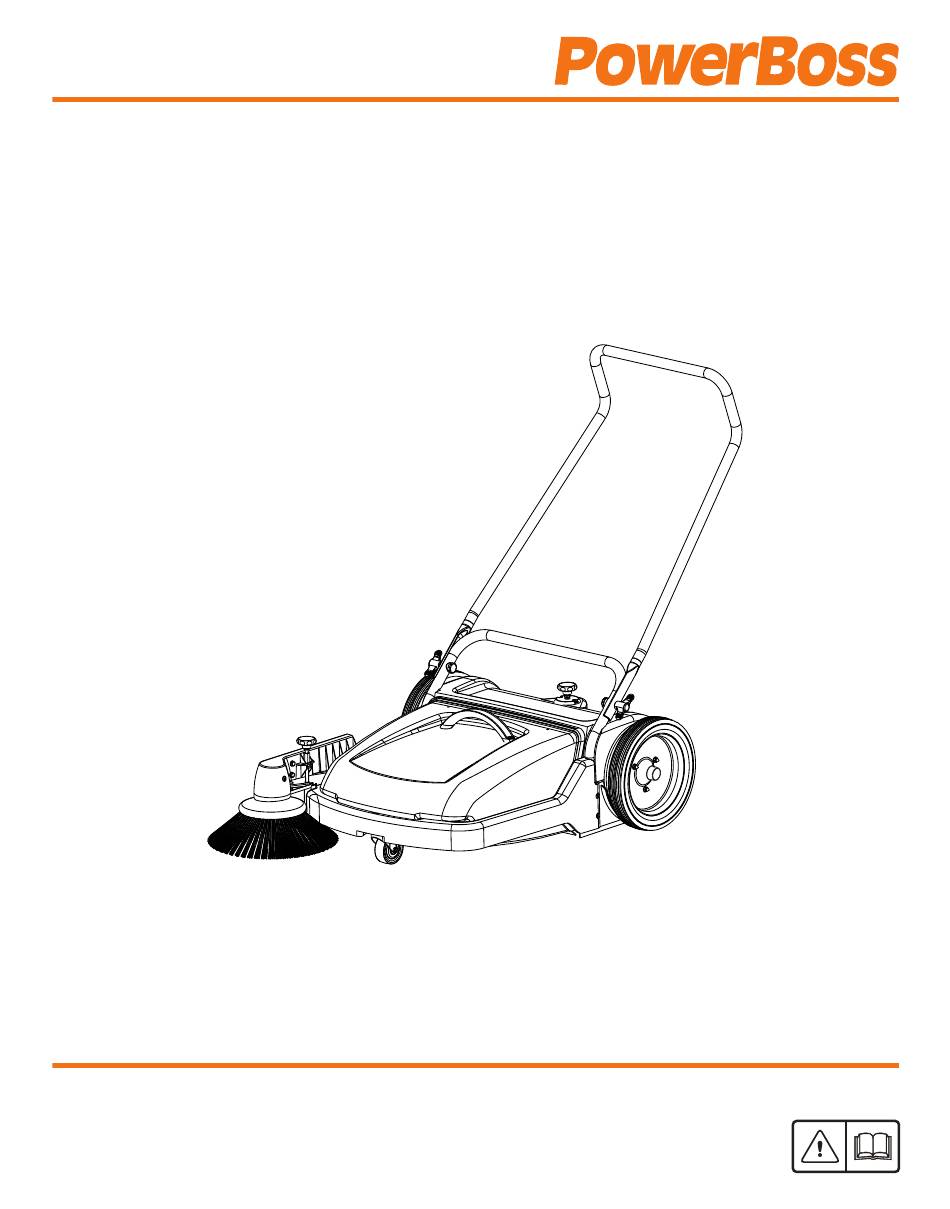

- Page 1 User Instructions & Parts Manual Collector 26 PB26R...
-
Page 3: Table Of Contents
Valid as for May 2019 PowerBoss, Inc. 14N845 U.S Route 20 Pingree Grove, Illinois 60140 USA Phone: 1-800-323-9420 Website: www.hako.com P/N: 557210165-00, Rev-A, Date: 05/2019 Prepared by: KM - NPM TD Dept. -
Page 4: Introduction
Thank you for choosing to become the proud owner of particular PowerBoss Branch / Dealer with a copy of invoice. Collector 26. Having been in the market for close The letter should be sent within 24 hours after the goods to four decades now, we are sure that you will be happy were delivered. -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTION Safety & Warning Symbols Abiding by the above general instructions can help Ÿ you avoid having to read this book while trying to run All paragraphs in this manual referring to you personal safety, Ÿ the machine. the safety of your machine and the environment protection Ÿ... -
Page 6: First Operation
FIRST OPERATION This machine is exclusively designed for Dry Sweeping on To attach the side arm assembly to the main frame Ÿ Solid, Level and Dry surfaces. remove the two screws that have already been inserted into the right side of the main frame. Place the V-Belt on to the drive pulley on the wheel, Ÿ... -
Page 7: Machine Operation
MACHINE OPERATION MACHINE OPERATION Controls The machine operates with two brooms. The side broom takes dirt from the side into the reach of the main broom. The main broom maintains its direction of rotation to throw the dirt into the hopper in forward direction of the machine. To use the machine, simply push it at a normal walking speed. -
Page 8: Maintenance
MAINTENANCE Greasing of the Main Wheels allow it to stay for sometime. The bristles will regain their correct position gradually. For cleaning and greasing of the wheel axle and the gear ring, the main wheels must be removed as described below. Maintenance Works Compliance with our operating and maintenance instructions will ensure trouble free and smooth operation... -
Page 9: Notes
NOTES... -
Page 10: Illustrated Parts List
ILLUSTRATED PARTS LIST FRAME GROUP - Frame, Cover & Plate Assy SL.NO PART NO DESCRIPTION 553210123 FRAME 923255 GASKET FRAME 922130 SLEEVE - GROMMET 552350021 WASHER STEEL - 10.6X18.0X4.0 922824 CASTOR WHEEL ASSY 844082 WASHER STEEL - 8.4X24X2.0 552020040 HEX HEAD SCREW - M8X45 859086 HEX NYLOCK NUT - M8 552180035... - Page 11 FRAME GROUP - Rubber Sealing Strips SL.NO PART NO DESCRIPTION 835708 CRPH SELF TAPPING SCREW-STEEL-4.8X40 553210239 SIDE STRIP HOLDER 553210224 SIDE RUBBER STRIP 921131 SELF TAPPING SCREW W/COLLAR 4.8X13 553210230 RUBBER STRIP HOLDER RH 553210231 RUBBER STRIP HOLDER LH 552130051 SPLASH SHIELD 553210227 REAR STRIP HOLDER...
- Page 12 FRAME GROUP - Brush Shaft Assy SL.NO PART NO DESCRIPTION 552180031 BRUSH SHAFT GROUP 552180033 PRESSURE ADJUSTMENT GROUP 552130079 BOOT 552130080 SEAL 841110 CRCSK SELF TAPPING SCREW- STEEL - 3.5X12.7 552130056 SPLIT PIN – 63 552130039 TRUNNION SHAFT 552130092 SPACER THREAD ROD 552180029 THREAD ROD ASSY 552130085...
- Page 13 FRAME GROUP - Gear Assy SL NO PART NO DESCRIPTION 552130067 WHEEL CAP 831516 HEX SOC HEAD CAP SCREW -STEEL -M8X20 844082 WASHER-STEEL-8.4X24X2 552300005 DOMED CAP NUT - STEEL - M6 844061 WASHER-STEEL - 6.4X12.5X1.6 552180022 TYRE ASSY 552130081 PROTECTION DISK 926057 CRPH SELF TAPPING SCREW - 3.5X16 552130082...
- Page 14 FRAME GROUP - Handle Assy SLNO PART NO DESCRIPTION 553210166 HANDLE 828512 HEX SOC CSK HEAD SCREW- STEEL - M6X45 844061 WASHER STEEL - 6.4X12.5X1.6 859068 HEX NYLOCK NUT-STEEL GR.8 -M6 553210168 UPPER HANDLE 552130062 KNOB ASSY MALE 927872 KNOB-HANDLE...
- Page 15 FRAME GROUP - Main Broom Assy SL. NO PART NO DESCRIPTION 552180026 MAIN BRUSH 835708 CRPH SELF TAPPING SCREW-STEEL - 4.8X40...
- Page 16 HOPPER GROUP - Hopper Assy SL. NO PART NO DESCRIPTION 558210133 HOPPER ASSEMBLY - COLLECTOR 26 552130060 HANDLE 802306 HEX HEAD SCREW - M6X20 553210228 BOOT FRONT 844061 WASHER STEEL - 6.4X12.5X1.6 859066 HEX NYLOCK NUT - M6 552130100 GASKET HOPPER...
- Page 17 SIDE BROOM GROUP - Side Broom Assy Complete SL. NO PART NO DESCRIPTION 552130014 MOLDED SIDE ARM 921107 TAPER BUSH SIDE BROOM ARM 921017 SUPPORT SIDE BROOM ARM 921013 CLEVIS PIN SIDE BROOM ARM 923418 CIRCLIP EXTERNAL - A 12 921821 SIDE BROOM ASSY COMPLETE 921103...
- Page 18 SIDE BROOM GROUP - Side Broom Assy Complete SL.NO PART NO DESCRIPTION 923427 EXTERNAL CIRCLIP - A 10 921015 BEARING HOUSING – SIDE BROOM ARM 875001 BEARING – 6000 ZZ 552350021 WASHER STEEL - 10.6X18X4 921141 AXLE SHAFT – SIDE BROOM 921066 WASHER STEEL - 16.2X22X0.5 921014...
