PowerBoss SW5X Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SW5X (Battery Version)
Model: PB40BL, PB40BH
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW5X and is the answer not in the manual?

Questions and answers

joe
January 17, 2025

a have R 12 Code flashing

0

Subscribe to Our Youtube Channel

Related Manuals for PowerBoss SW5X

Summary of Contents for PowerBoss SW5X

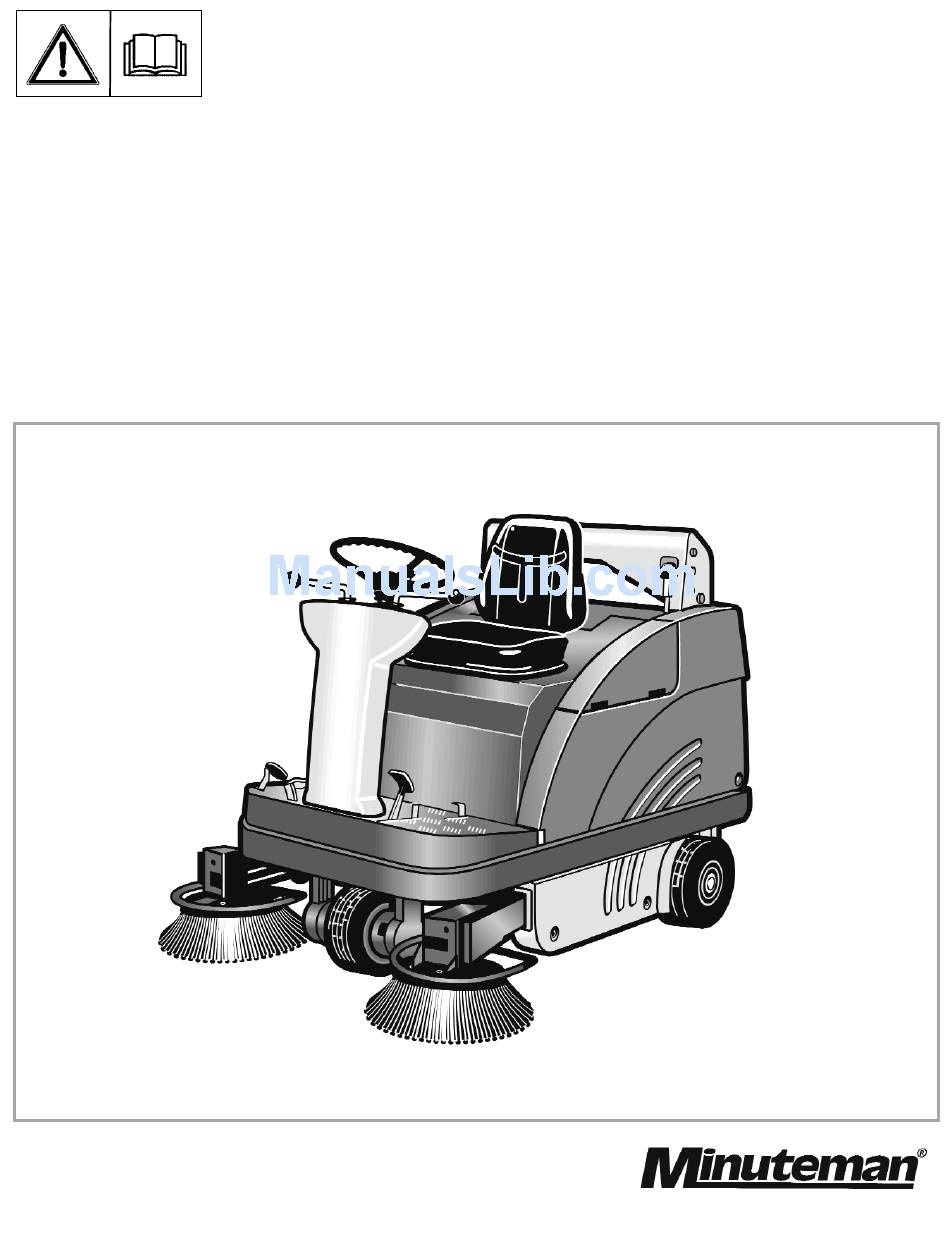

  • Page 1 SW5X (Battery Version) Model: PB40BL, PB40BH Instruction Manual...
  • Page 2 Dear customer, Please be advised explicitly that It is our desire that the good cha- we cannot accept any legal is- racteristics of the SW5X should sues out of the contents of this justify the confidence you demon- manual. strated by making this purchase.
  • Page 3 "Maintenance certificate" which is the The SW5X may be used by person- warranty document. nel only that are familiar with the The following is excluded from war- machine and aware of possible hazards involved.

  • Page 4: Table Of Contents

    Contents Introduction/Proper Use Operation .....18 Notes on Warranty Inspection Controls ....18 Control Panel .

  • Page 5: General Safety Information

    (dust and General Safety Information Before commencing work, the opera- combustion gas). tor has to make sure that the SW5X Apart from the instructions contained and its accessories are in proper and in this manual, the general safety safe condition.

  • Page 6: Safety And Warning Symbols

    Safety Information 1.2 Safety and Warning Symbols All paragraphs in this manual refer- ring to your personal safety, the safe- 1.2.1Generally Applicable Symbols ty of your machine and the environ- ment protection are attributed one of the following warning symbols: Hazardous for..

  • Page 7: Labels At The Machine

    Manual (7) The following safety and information signs are legibly attached to the machine. Missing or illegible stickers Brake (9) have to be replaced. Folding apron (1) Noise power level (10) 82 dB (A) Parking brake (2) Nameplate Minuteman/Powerboss/SW5X (3/4/5) Fig.1...
  • Page 8 Safety Information 1.3 Labels at the Machine 24 V label (15) Cylinder broom wearing take-up (12) Battery charging (16) The label is located under the seat hood. Rotating parts (14) Fig. 2 Safety and information signs...
  • Page 9 Safety Information 1.3 Labels at the Machine Pinching hazard (6) Hydraulic fluid (13) (Lifted-Up Disposal) High-pressure cleaner (11) Do not clean by means of high pressure cleaner or vapour jet.

  • Page 10: Operation/Safety Information

    Safety Information Operation/Safety Never leave the machine unattended Compared to four-wheeled Information before the motors are off and the ma- vehicles, driving stability of chine is protected against unintended three-wheeled vehicles is movements. reduced. We thus recom- Vacuum sweepers may be run by To prevent the machine from unautho- mend: qualified personnel only;...
  • Page 11 The machine is splash-proof (IPX3). Do not clean the SW5X by Provide for sufficient venti- means of high pressure cle- lation when sweeping indo- aner or vapour jet.
  • Page 12 Safety Information 1.6 Maintenance Instructions Before changing wheels When handling lubrica- protect the machine against ting agents, the appli- A good approach to prevention of rolling by placing wedges. cable regulations for Proceed to wheel changing protection of the envi- accidents is proper maintenance of when the machine is on le- ronment and preven-...
  • Page 13 (keep clear of disconnect battery (neg. le- ses may occur during the children). ad) of the SW5X and pull the charging procedure. When checking the battery ignition key. acid level, wear safety glas- ses. If acid splashes get in-...

  • Page 14: Description

    Description Description The side brush is used to collect dirt at borders and to enlarge the working width as well as to increase the area performance on large surfaces. 2.1 Functional Description The cylinder broom casts the debris overhead into the dirt hopper. The col- lected fine dust is evacuated by the suction fan and separated by a filter system.

  • Page 15: Cylinder Broom

    Description 2.2 Cylinder Broom 2.4 Filter System / Dust 2.6 Steering Evacuation The cylinder broom is equipped with Steering is controlled mechanically The filter system is located in the fil- 12 rows of bristles arranged in from steering wheel to front wheel via V-shape.

  • Page 16: Brake

    Description 2.8 Brake 2.11 Battery Systems Battery Charging Status Indicator The SW5X is equipped with a service Before commencing any Upon turning ON by key switch, bat- work on the electric system brake. tery charging status is shown by dis- disconnect the battery plug.

  • Page 17: First Operation

    Fig.5b Do not use the SW5X at am- bient temperatures of more than 105°F (40°C). Do not start the machine at temperatures of 32°F (0°C)

  • Page 18: Operation

    Operation Operation 4.1 Controls 1 Actuator for folding apron 2 Service brake lock 3 Service brake/parking brake pedal 4 Drive pedal, reverse 5 Drive pedal, forward 6 Control panel 7 Seat adjustment Fig.6...
  • Page 19 Operation 1 Actuator for folding apron 5 Drive pedal, forward to open and close the folding apron to change direction to forward ride for collecting coarse dirt. with continuous regulation of riding speed at the same time. If the dri- 2 Service brake/parking brake lock ver releases the pedal it returns to to lock the service brake/parking...

  • Page 20: Control Panel

    Operation 4.2 Control Panel 1 Cylinder broom lever 2 Release of lifted-up disposal func- tion 3 Horn 4 TSG 5 Suction fan/shaking system knob 6 Flashlight (option) 7 Lighting (option) 8 Lift and lower (Lift-Up Disposal) 9 Side brush lever 10 Pilot lamp, parking brake 11 Battery charge status indicator/ Hourmeter...
  • Page 21 Operation 2 Release for lifted-up disposal 3 Horn 1 Cylinder broom lever function An acoustic signal sounds upon to lift and lower as well as to to release the lifted-up disposal actuation of this button. switch on and off the cylinder function for lowering of lifting.
  • Page 22 Operation After jolting, the knob is to be kept in position 1 for ab- out 10 seconds (to optimize the cleaning result in case of heavy fine dust load). If the yellow pilot lamp (Fig. 7/13) lights, actuate the shaking system (position 2).
  • Page 23 Operation 8 Lift and lower (lifted-up dispo- sal) 10 Pilot lamp, parking brake (red) 13 Pilot lamp, shaking system (yel- to lift and lower the dirt hopper. lights upon actuation of the par- low) Lift the dirt hopper by pressing the king brake Extinguishes upon Proceed to jolting of the filter key until the desired height for lif-...

  • Page 24: Empty Dirt Hopper

    Operation 4.3 Empty Dirt Hopper 1 Recessed grip in dirt hopper 2 Dirt hopper - Fold bow (Fig. 8/3) up 3 Bow to lift/lower dirt hoppers = the dirt hoppers (Fig. 8/2) are lowe- red. - Use the recessed grip (Fig. 8/1) of Clean dirt hoppers at one of the hoppers to lift it lightly regular intervals.
  • Page 25 Dirt hopper (Fig. 9/3) is lifted-out ke sure that no persons or Back the SW5X until the dirt hop- objects are behind or next per is positioned above the contai- to the machine. Stop the ner for disposal.
  • Page 26 Operation Should the dirt hopper not Observe the information gi- be completely emptied after ven in paragraph 4.2 on swinging, proceed to manu- releasing of lifted-up dispo- al shaking with the handle sal. (Fig. 9/4). Sweeping is possible only after the dirt hopper has at- Clean the dirt hopper in re- tained its working position.

  • Page 27: Working With The Machine

    All controls are tective functions may For safety reasons, the marked with easy-to-understand sym- SW5X is equipped with a respond and switch off dri- bols that ease familiarization. First seat contact switch. Star- ving function without prior...

  • Page 28: Sweep

    Operation 4.5.2 Sweep 4.5.4 Displace - Lower cylinder broom. Make sure that the key switch is in - Release parking brake. neutral position and the side brush - Slowly depress drive pedal until and cylinder broom are lifted up befo- desired speed has been attained.

  • Page 29: Technical Data

    Technical Data Technical Data SW5X SW5X (Lift-Up Disp.) Dimensions and weights in. (mm) 59.8 (1520) 59.8 (1520) Length with side brush in. (mm) 39.4 (1000) 39.4 (1000) Width without side brush in. (mm) 44.1 (1120) 44.1 (1120) Width with 1 side brush in.
  • Page 30 Technical Data SW5X SW5X (Lift-Up Disp.) Filter system sq. ft. (m²) 30.1 (2,8) 30.1 (2,8) Filtering surface piece Plate filter Cylinder broom in. (mm) 27.6 (700) 27.6 (700) Length 13.6 (345) in. (mm) 13.6 (345) Diameter in. (mm) 11.4 (290) 11.4 (290)
  • Page 31 Technical Data SW5X SW5X (Lift-Up Disp.) Tyres in. (mm) 11.81 (300/90) 11.81 (300/90) Front drive wheel, bandage 4.00 - 4 4.00 - 4 Rear, solid rubber tyres Electric drive DC/V Service voltage 0.8/1.0 0.8/1.0 Travel drive assembly (P2/P1) 1.0/1.25 1.0/1.25...
  • Page 32 Technical Data Noise emission The sound pressure level measured according to DIN EN ISO 11201 and under standard operating conditions at the operator's ear with - operating status dB (A) - fan, cylinder broom and side brush ON amounts to The sound power level measured according to DIN EN ISO 3744 under standard operating conditions and maxi- mum volume flow amounts to...

  • Page 33: Maintenance/Service

    (parking brake) Do not remove or install ti- The SW5X has to be inspec- engaged. res or repair a rim. Take the ted for safe condition by an wheel and rim to a works-...

  • Page 34: Mount/Dismount Cylinder Broom

    Maintenance/Service - Open locks (Fig. 14/2) by enclosed 6.2 Mount/Dismount Cylinder - Turn handle (Fig. 15/3 +5) upwards square spanner (turn counter-clok- Broom and unlock kwise) - Remove plate with sealing strip - Remove cover (Fig. 14/1) The cylinder broom is accessible (Fig.
  • Page 35 (sweeping track). The sweeping track width is to be Fig.16 1.97 in. (50mm) with the SW5X Broom adjustment - Stop engine and pull key The sweeping track width can be - Engage parking brake...

  • Page 36: Compartment

    Maintenance/Service 6.4 Sealing Strips for Broom Com- 6.5 Folding Apron Adjustment - Remove bolt (Fig. 18/2). partment - Modify adjustment by turning the fork head (Fig. 18/1). In order to assure good function of the sweeper, a perfect condition of the sealing strips is required, especi- Modify adjustment such ally in order to attain the prescribed...

  • Page 37: Replace Side Brush

    Maintenance/Service 6.6 Replace Side Brush Proceed in inverse order for mounting of the side brush. The side brush is located at the front right of the machine (standard ver- sion). Use the lever (paragraph 4.2, Fig. 7/9) to lift and lower the side brush.

  • Page 38: Dismount Plate Filter

    Maintenance/Service 6.7 Dismount Plate Filter Proceed as follows for dismounting of the plate filter: - Turn engine off and pull key. - Secure machine by engaging par- king brake - Disconnect battery plug - Open seat hood - Open quick-release locks (Fig. 20/1) - Remove cover, filter case (Fig.
  • Page 39 Maintenance/Service Fig.21 Plate filter 1 Detent hook 2 Wing screws 3 Frame with electric-motor 4 Opening for detent lever 5 Plate filter...

  • Page 40: Basic Cleaning Of Plate Filter

    Maintenance/Service 6.8 Basic Cleaning of Plate Filter Hold the plate filter (Fig. 22/1) in ver- tical position and drop it from a height of approx. 3 ft. (1 m) to the even floor as represented in Fig. 22. The soiled side of the filter Soiled side points to the bottom.

  • Page 41: V-Belt Drive

    Maintenance/Service 6.9 V-Belt Drive 1 Tensioning roller 2 Suction fan V-belt (20Hz) 3 V-belt pulley 4 V-belt for cylinder broom and side brush (130Hz) 5 Side brush V-belt 6 Belt pulley 7 Cylinder broom V-belt 8 Tensioning roller lever 9 Belt pulley 10 Tension spring 11 Hexagonal nut 12 Hexagon socket screw...

  • Page 42: Replace Cylinder Broom V-Belt

    Maintenance/Service 6.9.1 Replace Cylinder Broom V- 6.9.3 Replace Suction Fan V-Belt 6.11 Check Hydraulic Fluid and Refill Belt - Turn engine off and pull key. - Secure machine by engaging par- - Turn engine off and pull key. king brake - Secure machine by engaging - Open seat hood parking brake.

  • Page 43: Electric System

    Maintenance/Service 6.12 Electric System 1 F2 Pre-fuse (20A) 2 F3 Engine shutdown, hourmeter (5A) 3 F4 Indicators control panel, jolter controlling, (front right lighting option, right rear light (5A) 4 F5 Horn (10A) 5 F7 LPG equipment option (10A) 6 F8 Front left lighting option, left rear light (7.5A) 7 F9 Lifted-up disposal control (7.5A)

  • Page 44: Maintenance Schedule

    Maintenance/Service hours of operation 6.13 Maintenance Schedule after first Daily every 100 every 200 every 300 Check batter acid level and top with distilled water if required (with fully charged battery only) Check acid density of battery Clean battery poles and grease Check cables for damages and screwed connections for tight fit Check function of seat contact switch...
  • Page 45 Maintenance/Service Hours of operation 6.13 Maintenance Schedule after first Daily every 100 every 200 every 300 Visual check of V-belts Check service/parking brake and re-adjust if required Check filter system for tightness (visual check) Dismount plate filter and clean if required Clean travel drive assembly, brush drive, shaking motor Check tread of wheels Check function of electric-motor, carbon brushes for smooth...

  • Page 46: Spare Parts

    Spare parts...
  • Page 47 Side brush Pos. Part No. Description 00557600 Hex.bolt 00042900 Washer 01130610 Bearing 00041810 Hex.bolt 00046520 Washer 00053750 Washer 00051510 Hex. Nut 01130620 Holder 00855380 Washer 00132880 Hex. Nut 00054690 Hex.bolt 00695300 Washer 00974400 Bushing 00521270 Roller 00537390 Cylinder head screw 01130630 Holder 00553690...
  • Page 49 Front wheel drive Pos. Part No. Description 00048400 Slotted nut 00027880 Cotter pin 00743290 Washer 01132770 Parallel key 01132760 Guidance disk, cpl. 00136910 Cylinder head screw 00053730 Washer 00051520 Hex. Nut 01130030 Nilos ring 00048410 Cone roller bearing 03002980 Front wheel bearing plate 00053360 Hex.
  • Page 51 Accelerator Pos. Part No. Description 00051490 Hex. Nut 01130490 Bush 01130500 Plate 01130510 Bush 01130520 Bush 01130530 Spring 00154550 Washer 01130540 Accelerator 01130550 Countersunk screw 00875950 Washer 00105390 Hex.bolt 00740090 Washer 00053350 Hex. Nut 00053770 Washer 00740310 Washer 00053750 Washer 00077110 Hex.bolt 00054890...
  • Page 53 Pedal brake Pos. Part No. Description 01130320 Pedal brake 00051510 Hex. Nut 00053750 Washer 00854270 Handle 00042900 Washer 00124290 Cylinder head screw 01130330 Bolt 00555130 Sealing ring 01055930 Tension spring 01130340 Barrier lever 00053110 Hex.bolt 03003170 Handle 00974400 Bushing 00521270 Roller 01130350 Bowden cable for brake...
  • Page 55 Steering Pos. Part No. Description 00852310 00053740 Hex. Nut 00053780 Washer 00153600 Woodruff key 00770220 Steering wheel 01130390 Bellows 01130470 Slide bearing bush 01132830 Wheelmount 00746040 Cardan joint 01132840 Steering column, cpl. 03004850 Steering carrier, cpl. 00045540 Cylinder head screw 00740090 Washer 00059080...
  • Page 57 Manipulation for side brush apron and sweeping roller Pos. Part No. Description 01132810 Knob 01130410 00051520 Hex. Nut 01093180 Screw 01132820 Bellow 00108590 Cylinder head screw 00053760 Washer 03004840 Retainer 00053080 Hex.bolt 00053750 Washer 01130470 Slide bearing bush 00153700 Adjusting washer 01130430 Lever 00044160...
  • Page 59 Control panel Pos. Part No. Description 01131520 Actuating cable 01132900 Indicator lamp shake/blower 01131640 Gasket control-light 00052620 Fillister-head screw 01132910 Signal transmitter 01132920 Indicator lamp brake 01132930 03004860 Control panel plate 01132940 Control panel foil 01132950 Cover 01073530 Transparency 01132960 Switch gasket 01132970 Switch horn...
  • Page 61 Seat covering Pos. Part No. Description 01075950 Covering R.H. red 01133310 Gland 01075860 Covering R.H. red 01063420 Self tapping screw 01075830 Hood R.H. red 01133340 Gasket R.H. 00051510 Hex. Nut 00053750 Washer 00906060 Drain plug 00721090 Edge protection 03005450 Seat flap 00740080 Washer 01133350...
  • Page 63 Seat- Covering lift-up disposal (Part 1) Pos. Part No. Description 01075950 Covering R.H. red 01133310 Gland 00135030 Cylinder head screw 01075830 Hood R.H. red 00740080 Washer 01133350 Lens flange screw 00740360 Cable sleeve 03005450 Seat flap 01075820 Hood L.H. red 00870090 Washer 01133420...
  • Page 65 Seat - Covering lift-up disposal (Part 2) Pos. Part No. Description 00077110 Hex.bolt 01071360 Seat 01133340 Gasket R.H. 00721090 Edge protection 01075840 Filter cover red 00905520 Screw 01133090 Catch 00053320 Hex. Nut 01133100 Plate 00752350 Edge protection 00740080 Washer 00906060 Drain plug 00733400 Spacer sleeve...
  • Page 67 Motor - Chassis Pos. Part No. Description 03003360 Chassis, cpl 00053080 Hex.bolt 00740090 Washer 01133110 Battery console 01133120 Block of wood 00051510 Hex. Nut 00042900 Washer 00053750 Washer 00053090 Hex.bolt 01131280 Drive belt 01131290 Drive belt pulley 00874340 Washer 00053010 Hex.bolt 01131300 Drive belt...
  • Page 69 Electrical equipment Pos. Part No. Description 01133160 E-carrier 00740090 Washer 00041600 Hex.bolt 00721090 Edge protection 00053050 Hex.bolt 01133170 Relay 01018100 Housing 01133180 Relay 00052620 Fillister-head screw 00053710 Washer 00133830 Hex. Nut 01056100 Fuse 00121440 Fuse holder 00954570 Fillister-head screw 00047600 Hex.bolt 00053730 Washer...
  • Page 71 Electrical equipment lift-up disposal Pos. Part No. Description 00133830 Hex. Nut 00053710 Washer 00965030 Relay 00052620 Fillister-head screw 01132650 Hexagon screw 00053730 Washer 00053330 Hex. Nut 01132640 Edge protection 01134440 Cover 01134450 Fuse link 00903510 Fuse holder 00731550 Fillister-head screw 01134360 Switch 01132960...
  • Page 73 Group of main sweeper roller Pos. Part No. Description 00053080 Hex.bolt 00695300 Washer 00509180 Sleeve 00106300 Deep groove ball bearing 00101660 Retaining ring 00102410 Ring 00866720 Star handle 00740290 Washer 01130830 Brush rocker, L.H. 01130840 Side shield 00681570 Edge protection 00051520 Hex.
  • Page 75 Manipulation for brush apron - Lifter for sweeping roller Pos. Part No. Description 01131320 Stop angel 00740090 Washer 00053080 Hex.bolt 01131330 00854420 Thrust washer 01131340 Pedal bar 00051500 Hex. Nut 00051520 Hex. Nut 00526320 Hex.bolt 01064890 Hose 00053330 Hex. Nut 00123690 Hex.bolt 00130290...
  • Page 77 Broom wear compensation Pos. Part No. Description 00706030 Bolt 00027110 Fork yoke 00053350 Hex. Nut 00902600 Threaded bolt 03004890 Lever 01071440 Plain bearing bush 00053770 Washer 03004900 Plate 00730940 Detend edged washer 00053010 Hex.bolt 00132880 Hex. Nut 00053760 Washer 00108590 Cylinder head screw 01055290 Plain bearing bush...
  • Page 79 Filter installation Pos. Part No. Description 00051510 Hex. Nut 01131100 Bolt 01074080 Compression spring 00042900 Washer 00027190 Cable sleeve 01131410 Frame 00045620 Dowel pin 01131120 Spacer 00905560 Wing 01130170 Bush 01133210 Locknut 01131140 Handle 01131130 Frame 00730940 Washer 00053020 Hex.bolt 01131170 Spacer 01130750...
  • Page 81 Dust extraction Pos. Part No. Description 01075840 Filter cover red 00053350 Hex. Nut 00740090 Washer 00053330 Hex. Nut 00740280 Washer 01092780 Lens flange screw 00420290 Gasket Tesamoll 03003430 Plate 00903480 Screw 00730940 Washer 01131450 Filister head flange screw 03003440 Housing 01131460 Threaded bushing 01131470...
  • Page 83 Fan bearing Pos. Part No. Description 00506780 Threaded pin 01131220 Rotating fan 00053010 Hex.bolt 03003350 Plate 01131230 Shaft 00740280 Washer 00053330 Hex. Nut 01131260 Belt pulley 00740090 Washer 00022330 Hex. Nut 00553690 Hex.bolt 00074710 Hex. Nut 00740290 Washer 01131270 Holder 01130970 Idler 00126330...
  • Page 85 Lift-Up Disposal (Part 1) Pos. Part No. Description 01134680 Plain bearing bush 01134690 Bushing 00053360 Hex. Nut 01134700 Sealing plug 03006070 Bracket 01055290 Plain bearing bush 01134710 Bushing 00133450 Hex.bolt 00740290 Washer 00021130 Hex.bolt 01134720 Support 01134730 Approach disk 01134740 Filister head flange screw 00051510 Hex.
  • Page 87 Lift-Up Disposal (Part 2) Pos. Part No. Description 01130300 Angel, L.H. 00053750 Washer 00045540 Cylinder head screw 01130310 Angel, R.H. 00051510 Hex. Nut 01130200 Gasket 00705440 Screw 01134590 Sealing plate 00045010 Cylinder head screw 01134600 Bushing 00046520 Washer 00053360 Hex. Nut 00053350 Hex.
  • Page 89 Lift-Up Disposal (Part 3) Pos. Part No. Description 00107100 Hex.bolt 00046520 Washer 01134560 Retainer 00073270 Hex. Nut 00747400 Washer 01134570 Flat spring 00740290 Washer 00055460 Hex.bolt 00053710 Washer 00900590 Hex.bolt 00021130 Hex.bolt 00053760 Washer 00535780 Fillister-head screw 00053360 Hex. Nut 00927610 Switch 00557150...
  • Page 91 Lift-Up Disposal (Part 4) Pos. Part No. Description 00552970 Handle 01134490 Lever 00053750 Washer 00051510 Hex. Nut 01006820 Lens flange screw 01134500 Locking bolt 01134510 Bushing 01071440 Plain bearing bush 00534440 Hex.bolt 00706200 Bolt 01134520 Pipe 00854420 Thrust washer 00135790 Hex.
  • Page 93 Dirt hopper Pos. Part No. Description 01130050 Holder, L.H. 00051510 Hex. Nut 00042900 Washer 00878410 Screw 00053750 Washer 00103300 Cylinder head screw 01130060 Handle 01130070 Bush 01130080 Slide bearing bush 00101500 Screw 01130090 Holder, L.H. 00053100 Hex.bolt 01130200 Gasket 01130300 Angel, L.H.
  • Page 95 Rear-wheel - Brake Pos. Part No. Description 01131060 00135350 Hex. Nut 01131070 Washer 00706370 Deep groove ball bearing 01130770 Rear wheel 01130350 Bowden cable for brake 00074710 Hex. Nut 00053760 Washer 01130780 Bush 01130790 Cup head square neck bolt 00281050 Deep groove ball bearing 01131080 Brake...
  • Page 97 Set of SE-solid wheels Pos. Part No. Description 99651600 Set solid rubber tires 01131060 00054230 Retaining ring 00706370 Deep groove ball bearing 01133010 Rim half 01133030 Tyre 01132990 Brake drum 00281050 Deep groove ball bearing 00137020 Cylinder head screw 01133020 Rim half 00053730 Washer...
  • Page 99 Set of SE-solid wheels, not marking Pos. Part No. Description 99651200 Solid tyres, non marking 01131060 00054230 Retaining ring 00706370 Deep groove ball bearing 01133010 Rim half 01132980 Tyre Solid, non marking 01132990 Brake drum 00281050 Deep groove ball bearing 00137020 Cylinder head screw 01133020...
  • Page 101 Decal Pos. Part No. Description 01131540 Decal brush apron 01131550 Decal brake Decal Minuteman Decal Powerboss Decal SW5X 01071710 Decal instruction manual 01133270 Decal start 01131560 Decal brake 01073530 Backing film 01131570 Decal high-pressure cleaner 01133940 Decal adjustable sweeper roller...
  • Page 103 Decal lift-up disposal Pos. Part No. Description 01131540 Decal brush apron 01131550 Decal brake Decal Minuteman Decal Powerboss Decal SW5X 01142760 Decal squeezing danger 01071710 Decal instruction manual 01133270 Decal start 01131560 Decal brake 01073530 Backing film 01131570 Decal high-pressure cleaner...
  • Page 105 Side Brush l.h. Part 1 Pos. Part No. Description 00041810 Hex. Bolt 00046520 Washer 00152850 Drain plug 00855380 Washer 00132880 Hex. Nut 00051510 Hex. Nut 00053750 Washer 01135020 Holder, l.h. 01130610 Bearing 00042900 Washer 00557600 Hex. Bolt 00138180 Hex. Bolt 00740930 Roller 00855240...
  • Page 107 Side Brush l.h. Part 2 Pos. Part No. Description 00740360 Cable sleeve 01135030 Covering 00157690 Washer 00154680 Screw 01131530 00022440 Retaining ring 00020610 Supporting ring 00155120 Supporting ring 01130740 Gear 00740090 Washer 00553690 Hex.bolt 01135060 Gear holder 00740280 Washer 00104500 Hex.bolt 00871350 Washer...
  • Page 109 Side Brush l.h. Part 3 Pos. Part No. Description 01135000 Rope 00042900 Washer 00537390 Hex.bolt 00974400 Bushing 00521270 Roller 00051510 Hex.nut 00695300 Washer 00054690 Hex.bolt 00054020 Wing nut 00053330 Hex.nut 00138180 Hex.bolt 00029170 Bushing 01130650 Decal 00853730 Star handle 00740090 Washer 00053350 Hex.nut...

  • Page 110: Ec Declaration Of Conformity

    EN 60335-2-72 that the product EN 61000-6-3 EN 61000-6-2 SW5X Addison (Illinois), 30th Sept. 2004 Type: PB40BL, PB40BH to which this declaration relates, corre- sponds to the relevant basic safety and health requirements of the Directives...

  • Page 111: Limited Warranty

    LIMITED WARRANTY Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of one year from date of purchase. In addition, Minuteman International, Inc.
