Mason Aluminum Framed Fabric Restbenches Installation Instructions

Wall mount

Advertisement

Quick Links

1.
Measure out from the back wall of the run a distance of 1'-8 3/8" and make a mark on the
division panel (or side wall). Then measure up vertically a height of 3 5/16" plus the height of
the rest bench (example: If you have a 6" high rest bench you would measure up 9 5/16").
Make a mark on the panel (wall). Using a level, transfer the last mark you made to the back
wall of the run. Do this on both sides of the run. See Figure 1.
Back wall of
the run
2.
Hold a support bracket against the back and sidewalls of the run so that the top of the bracket is
even with the mark. Mark the wall for drilling through both holes in the bracket. See Figure 1.
3.
Using a 3/8" masonry bit drill (2) 3/8" holes in the wall to a depth of 1 1/2".
4.
Repeat steps 2 and 3 on the opposite side of the run.
5.
Insert a 1/4"-20 x 1 1/4" bolt (supplied) through the mounting holes in the support brackets.
Install an anchor plug on each bolt. The end of the anchor should be approximately even with
the end of the anchor. Be sure that the anchor plugs are installed in the correct orientation. See
Figure 2.
Page 1 of 4
Trench Drain

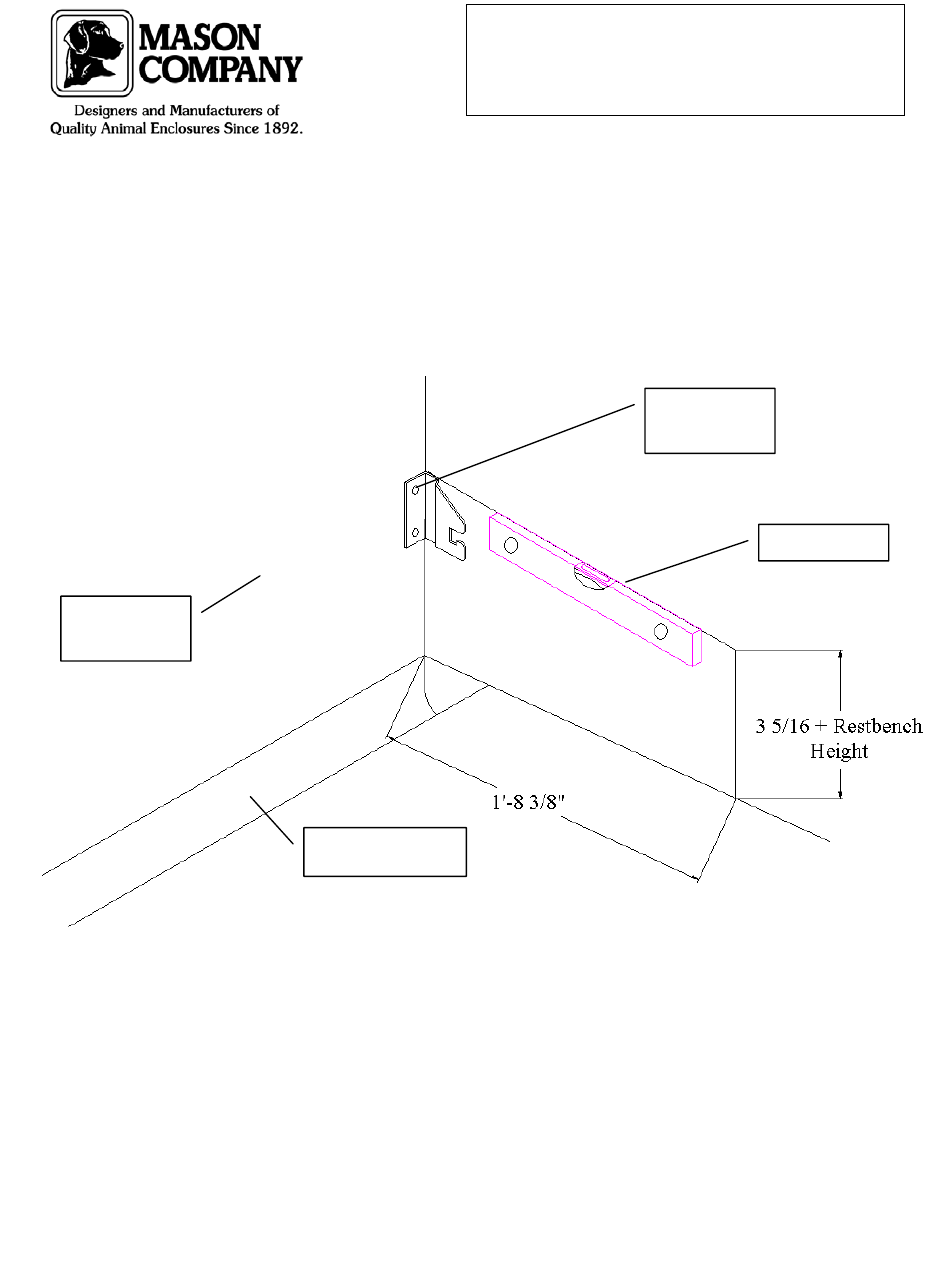

Figure 1.
Installation Instructions for
Aluminum Framed Fabric
Restbenches - Wall Mount
Mark through
both holes
Level Line
Form # 118 Rev. B
