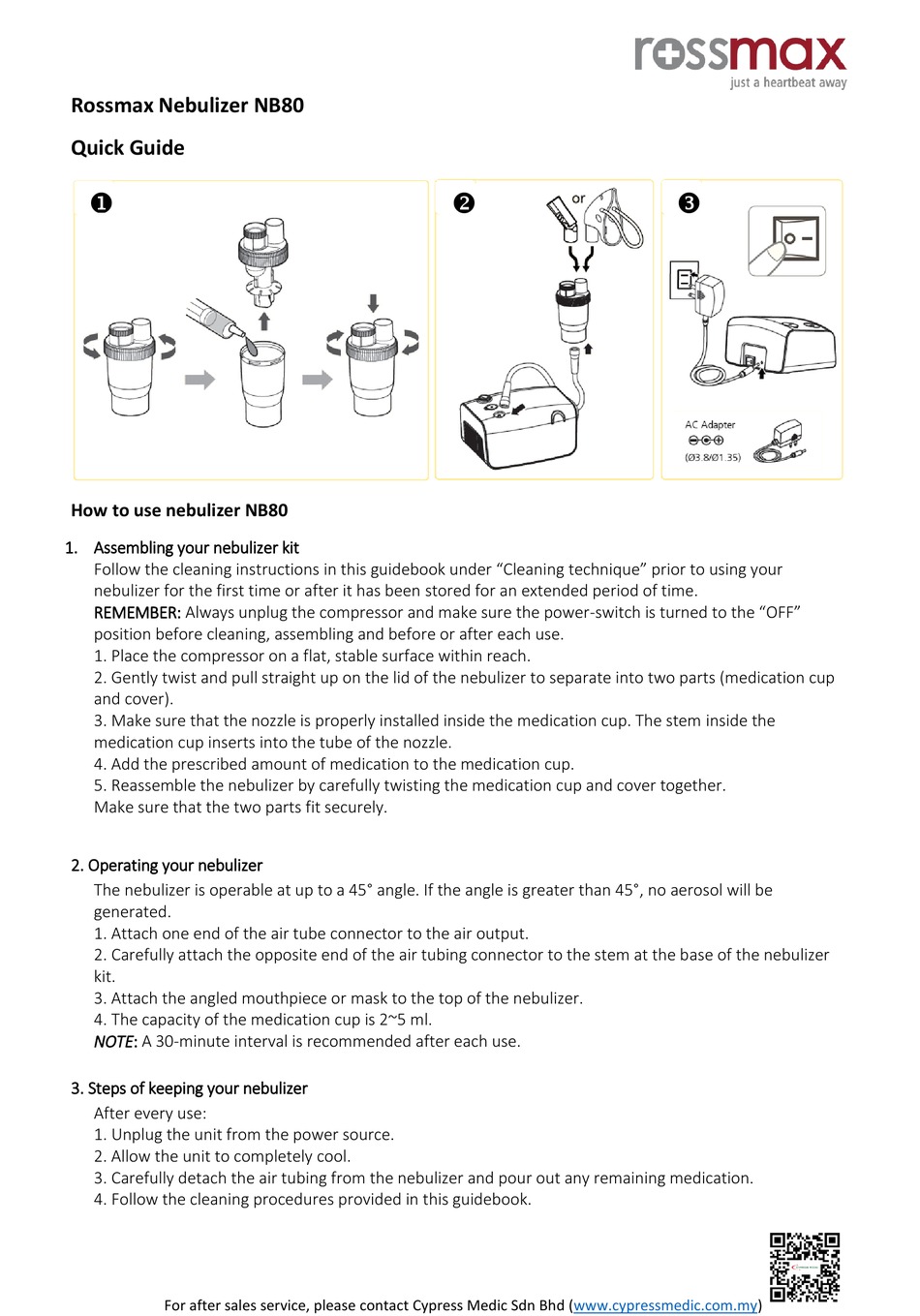

Rossmax NB80 Quick Manual

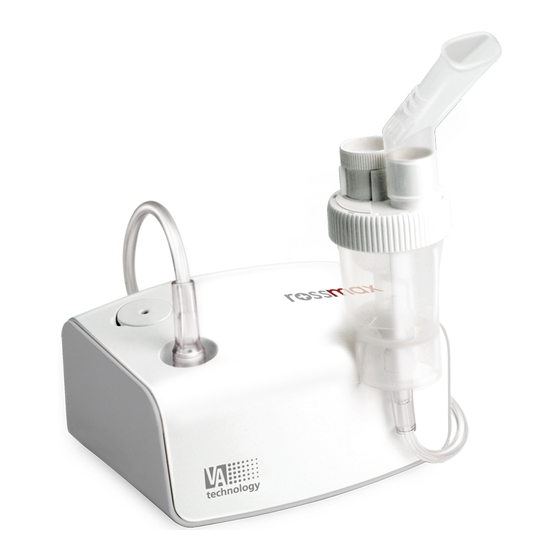

Rossmax Nebulizer NB80
Quick Guide


How to use nebulizer NB80

1. Assembling your nebulizer kit

Follow the cleaning instructions in this guidebook under "Cleaning technique" prior to using your
nebulizer for the first time or after it has been stored for an extended period of time.
REMEMBER: Always unplug the compressor and make sure the power-switch is turned to the "OFF"
position before cleaning, assembling and before or after each use.
1. Place the compressor on a flat, stable surface within reach.
2. Gently twist and pull straight up on the lid of the nebulizer to separate into two parts (medication cup
and cover).
3. Make sure that the nozzle is properly installed inside the medication cup. The stem inside the
medication cup inserts into the tube of the nozzle.
4. Add the prescribed amount of medication to the medication cup.
5. Reassemble the nebulizer by carefully twisting the medication cup and cover together.
Make sure that the two parts fit securely.

2. Operating your nebulizer

The nebulizer is operable at up to a 45° angle. If the angle is greater than 45°, no aerosol will be
generated.
1. Attach one end of the air tube connector to the air output.
2. Carefully attach the opposite end of the air tubing connector to the stem at the base of the nebulizer
kit.
3. Attach the angled mouthpiece or mask to the top of the nebulizer.
4. The capacity of the medication cup is 2~5 ml.
NOTE: A 30-minute interval is recommended after each use.

3. Steps of keeping your nebulizer

After every use:
1. Unplug the unit from the power source.
2. Allow the unit to completely cool.
3. Carefully detach the air tubing from the nebulizer and pour out any remaining medication.
4. Follow the cleaning procedures provided in this guidebook.
For after sales service, please contact Cypress Medic Sdn Bhd (www.cypressmedic.com.my)
 
