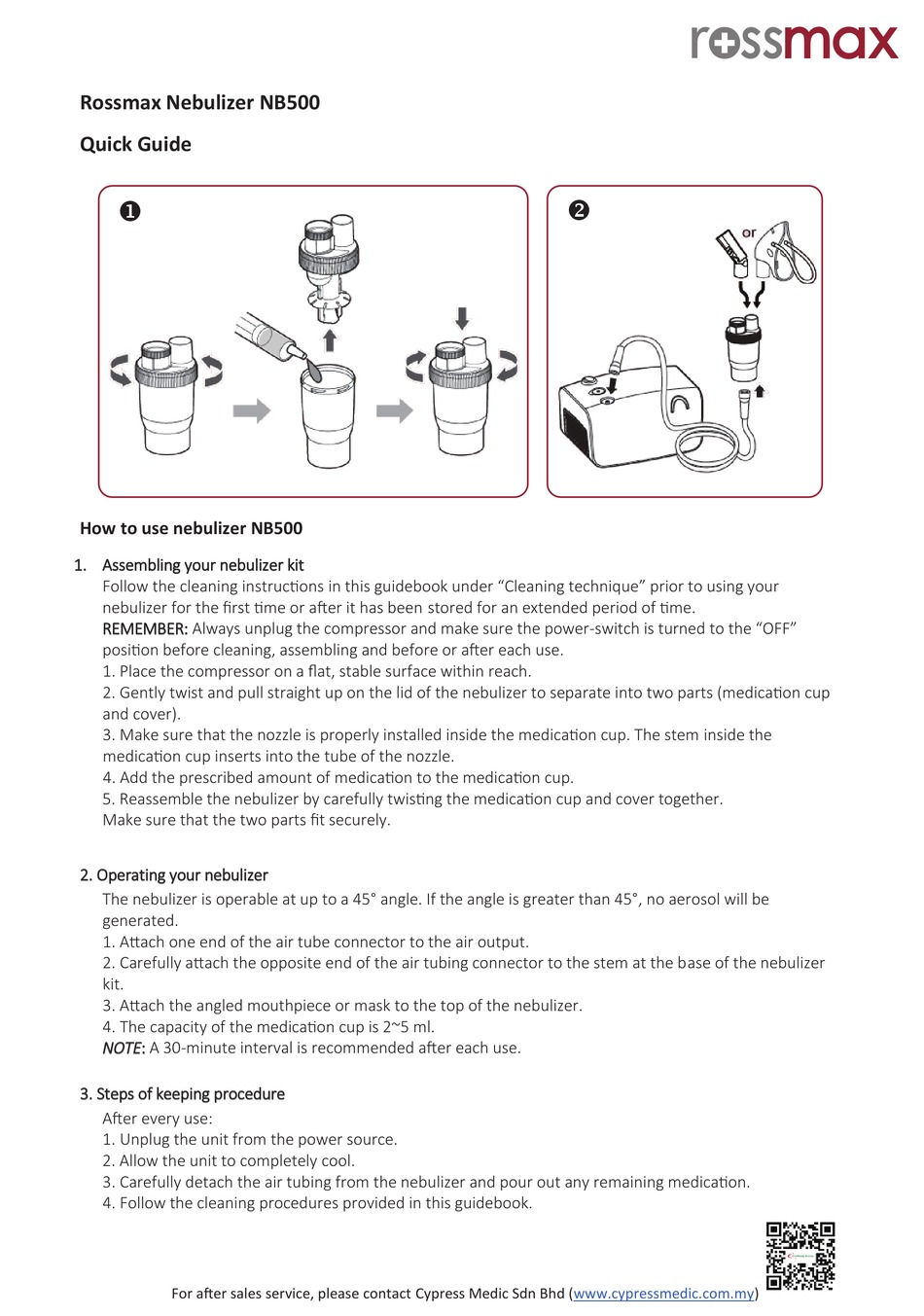

Rossmax NB500 Quick Manual

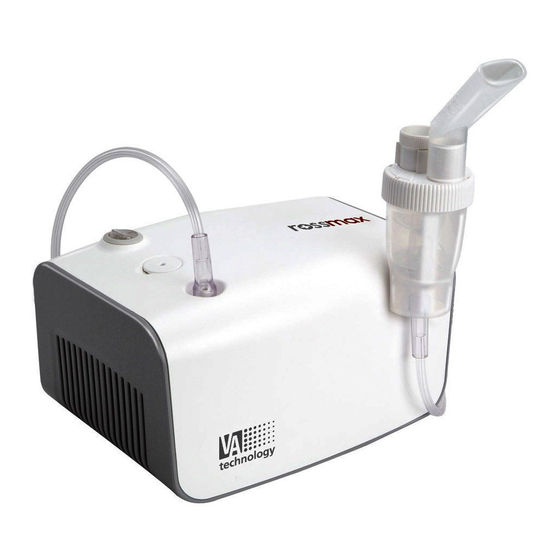

Rossmax Nebulizer NB500
Quick Guide


How to use nebulizer NB500

1. Assembling your nebulizer kit

Follow the cleaning instruc�ons in this guidebook under "Cleaning technique" prior to using your
nebulizer for the first �me or a�er it has been stored for an extended period of �me.
REMEMBER: Always unplug the compressor and make sure the power-switch is turned to the "OFF"
posi�on before cleaning, assembling and before or a�er each use.
1. Place the compressor on a flat, stable surface within reach.
2. Gently twist and pull straight up on the lid of the nebulizer to separate into two parts (medica�on cup
and cover).
3. Make sure that the nozzle is properly installed inside the medica�on cup. The stem inside the
medica�on cup inserts into the tube of the nozzle.
4. Add the prescribed amount of medica�on to the medica�on cup.
5. Reassemble the nebulizer by carefully twis�ng the medica�on cup and cover together.
Make sure that the two parts fit securely.

2. Operating your nebulizer

The nebulizer is operable at up to a 45° angle. If the angle is greater than 45°, no aerosol will be
generated.
1. A�ach one end of the air tube connector to the air output.
2. Carefully a�ach the opposite end of the air tubing connector to the stem at the base of the nebulizer
kit.
3. A�ach the angled mouthpiece or mask to the top of the nebulizer.
4. The capacity of the medica�on cup is 2~5 ml.
NOTE: A 30-minute interval is recommended a�er each use.

3. Steps of keeping procedure

A�er every use:
1. Unplug the unit from the power source.
2. Allow the unit to completely cool.
3. Carefully detach the air tubing from the nebulizer and pour out any remaining medica�on.
4. Follow the cleaning procedures provided in this guidebook.
For a�er sales service, please contact Cypress Medic Sdn Bhd (www.cypressmedic.com.my)

