ekwb EK-FC R9-295X2 Installation And Mounting Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION.
STEP 2 cont.: PREPARING YOUR GRAPHIC CARD
1 cont.. REMOVING STOCK COOLER.
should be removed, including self-adhesive washers on both sides of the PCB (if present). There are up to
19 screws on the back of the graphics card. After you remove the fan housing do not forget to unplug the
fan. You may need Torx T6 screwdriver instead of Philips head screwdriver (depending on manufacturer).
¸
3. APPLYING THERMAL COMPOUND.
compound: lightly coat both AMD GPU chips as well as
PLX bridge chip with for example Arctic Cooling MX-2
™,MX-4 ™ or GELID GC-Extreme ™ thermal grease.
EKWB recommends to apply thermal grease in cross form
for best performance (see sample picture).
STEP 3: INSTALLING WATER BLOCK
1. PLACING THERMAL PADS ON PCB.
enough pads to cover all surfaces that need to be covered to make block fully functional). EKWB recommends using small drops of electrically non-conductive (for
example: Arctic Cooling MX-2 ™, MX-4 ™ or GELID GC-Extreme™) thermal grease on each phase regulator (that is being covered with thermal pad) in order to even
further improve the thermal performance of the EK-FC R9-295X2 series water block. Be careful not to overlap thermal pads!
All disclosures, notices and warranty conditions are being written on the EKWB website. Please read terms of use.

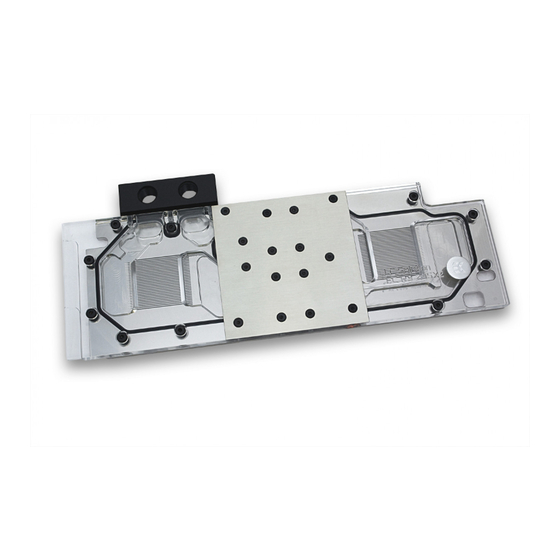

Installation and mounting manual for EK-FC R9-295X2 waterblock

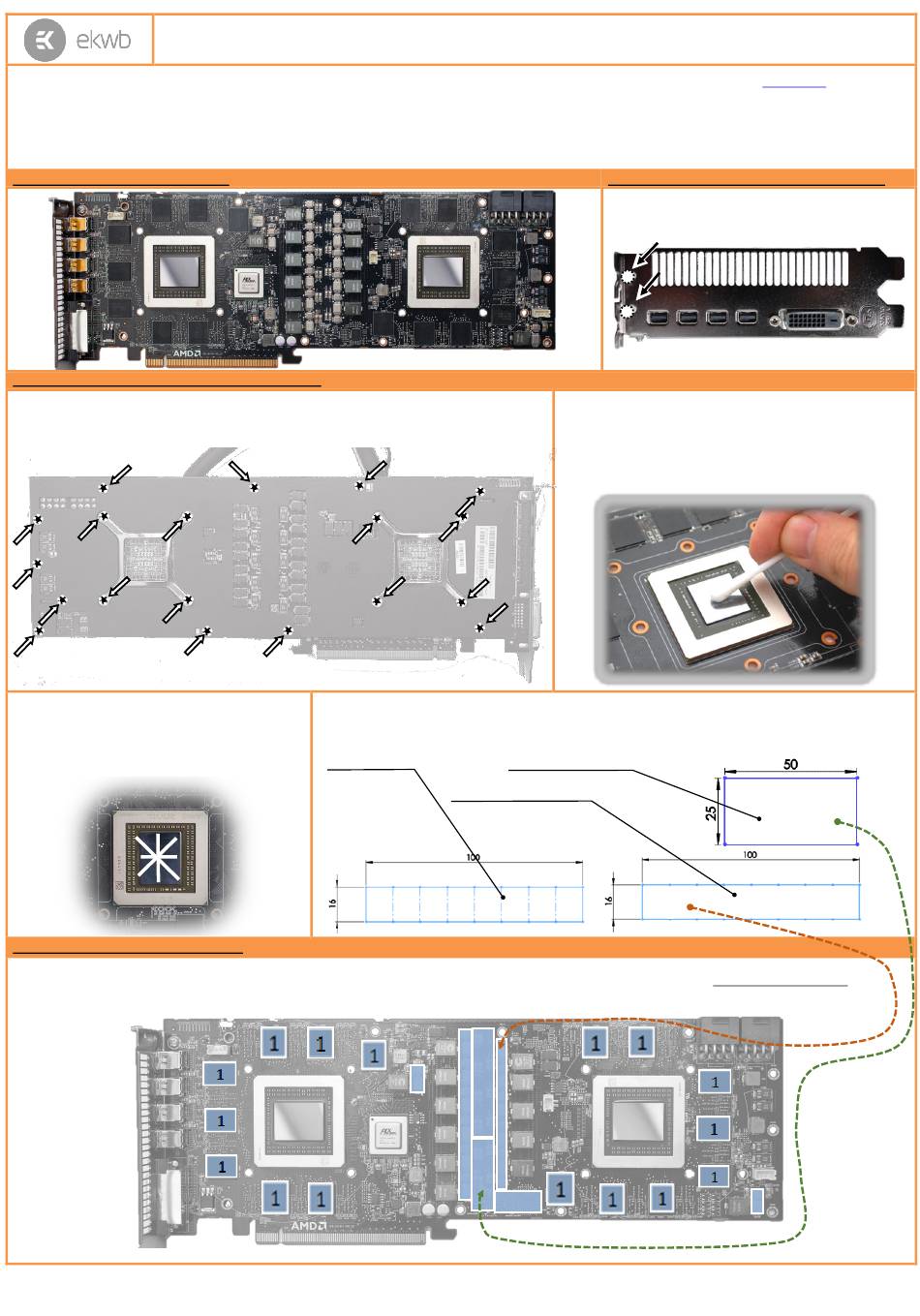

Sample picture of AMD Radeon R9 295X2
Remove all encircled screws. All heat sink assembly screws
4. CUTTING THERMAL PADS.
Apply thermal
have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs and drivers. PLEASE
REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION.
Replacement thermal pads:2x Thermal Pad A – 1.0mm (16x100mm),2x Pad D – 0.5mm (8xRAM) , 1x Pad C – 1.5mm (25x50mm)
1: Thermal pad D– 0.5mm (RAM):
Place thermal pads on chips so that numbers on chips match size of thermal pads. EKWB made sure users have more than
Your block comes with thermal pads, some of which are already pre-cut. Others
3: Thermal pad C – 1,5mm (PCB):
2: Thermal pad A – 1mm (for mosfet):
1 1 1
1 1
1 1 1
3
2
2
2
3
3
STEP 2: PREPARING YOUR GRAPHIC CARD.
1. REMOVING STOCK COOLER: Remove encircled screw on
the bracket (required only on certain models):
2. CLEANING THE PCB.
Carefully detach the original stock cooler
after removing all screws securing it to the board. Wipe off the
remains (by using non–abrasive cloth or
photo) of the original thermal compound until the components and
circuit board are completely clean. EKWB recommends the use of
denatured alcohol for removing TIM leftovers.
Released on 24
www.ekwb.com for updates. Before
qtip , as shown on sample
2
2
th
of May, 2014. Revision 1.0
