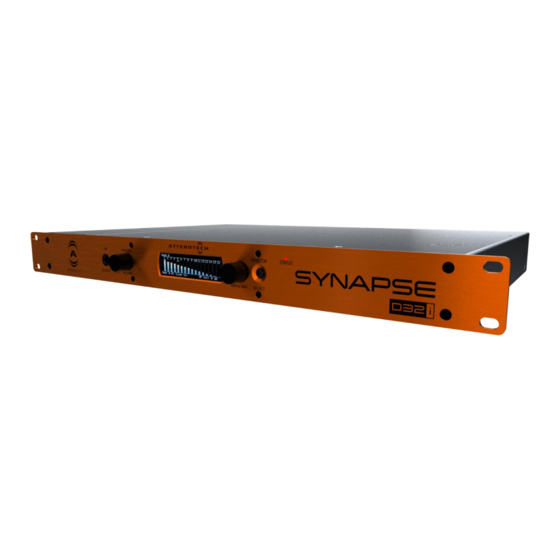

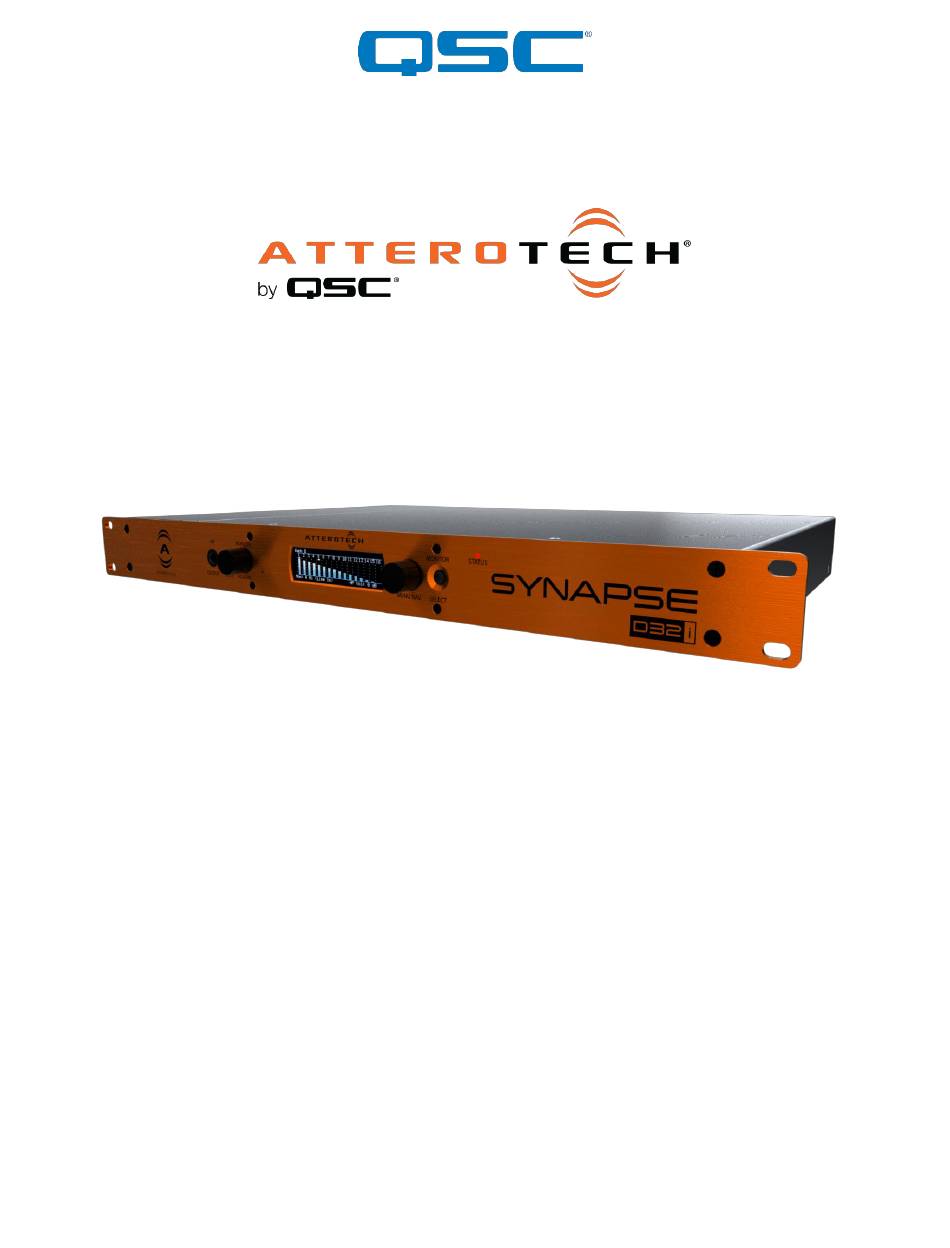

Synapse D32i
Dante™/AES67 Network Audio Interface -
32 Line Level Analog Inputs
User Manual
1675 MacArthur Boulevard • Costa Mesa, CA 92626
Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2020 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other
trademarks are the property of their respective owners. Patents may apply or be pending.
www.qsc.com
614-0003939
Advertisement
Table of Contents
Related Manuals for QSC Atterotech Synapse D32i
Summary of Contents for QSC Atterotech Synapse D32i
- Page 1 Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174 © 2020 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
- Page 2 Synapse D32i Attero Tech by QSC User Manual IMPORTANT SAFETY INSTRUCTIONS The symbols below are internationally accepted symbols that warn of potential hazards with electrical products. This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure -- voltage that may be sufficient to constitute a risk of shock.
- Page 3 Attero Tech by QSC User Manual WARRANTY INFORMATION For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules and EN55022. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Table Of Contents
Synapse D32i Attero Tech by QSC User Manual Contents 1 – Overview ..................................................5 2 – Device Installation ............................................... 7 2.1 – Mounting ............................................7 2.2 – Audio Wiring ..........................................7 2.2.1 – Unbalanced Output to an Balanced Input..............................7 2.2.2 –... -
Page 5: Overview
Synapse D32i Attero Tech by QSC User Manual 1 – Overview The Synapse D32i is a 1RU high-density Dante break-in interface. On the network side, there is a fully redundant Dante interface Featuring 32 line-level balanced inputs, the Synapse D32i is utilizing both RJ45 connectors and SFP ports. - Page 6 Synapse D32i Attero Tech by QSC User Manual DB-25 Option DB-25 Option Terminal Block Option DEVICE FEATURES FRONT PANEL REAR PANEL 1 - Headphone Jack 9 - Bank A (Input 1-16) 10 - Bank B (Inputs 17-32) 2 - Headphone Mute Indicator...
-
Page 7: Device Installation
Synapse D32i Attero Tech by QSC User Manual 2 – Device Installation 2.2.1 – Unbalanced Output to an Balanced Input 2.1 – Mounting The case for the D32i is designed ready to fit in a standard 19” rack. The rack mount tabs are built in to the front panel of the unit (rack screws are not supplied). -
Page 8: Power Supply
Synapse D32i Attero Tech by QSC User Manual 2.3 – Power Supply Use the provided AC power cable to connect a standard AC outlet to the power supply input connector. There is no “on” switch so the unit will power up as soon as the power connection is made. -
Page 9: Using On Standalone Network
Synapse D32i Attero Tech by QSC User Manual 2.4.3 – Using on Standalone Network The D32i supports both redundant mode and standalone mode (indicated as “switched” mode in Dante Controller). If the D32i is being used in a standalone network, running the D32i in either “Redundant”... -
Page 10: Device Operation
Synapse D32i Attero Tech by QSC User Manual 3 – Device Operation 3.1.2 – Channel Metering Views Certain features of the DM1 such as channel mutes, output level, and front panel lockout are controlled using unIFY Control Panel application. Details of those features are shown in the help documentation for unIFY Control Panel. -
Page 11: Dante Info View
.SFU files can be downloaded from the Attero Tech Product Firmware page on the QSC website. To apply the update, download the appropriate SFU file for the DM1, select the smart firmware update option under the Tools menu and follow the instructions. Further assistance for doing updates is provided in the unIFY Control Panel manual. -
Page 12: Architects & Engineers Specification
Synapse D32i Attero Tech by QSC User Manual ARCHITECTS & ENGINEERS SPECIFICATION The Dante™ interface shall have 32 balanced line level inputs available on terminal blocks or DB-25 connectors. The input sensitivity shall be configurable in 16 channel banks for connectivity to pro (+4 dBu nominal) or consumer (-10 dBV nominal) line level inputs. -
Page 13: Device Specifications
Synapse D32i Attero Tech by QSC User Manual Device Specifications Power Specifications Analog Audio Inputs (Terminal Block) AC Power 120V AC 32 - Balanced 3-pin line level (Terminal Block option) Input Type 4 – TASCAM-pinout compatible DB25 balanced analog Power Consumption <...
