- Page 1 TRAQ by TITAN TraQ Cardio User Manual (75001PP01, 75001PP02, 75001PP03) TraQ Triathlon (75004PP01, 75004PP02, 75004PP03) TRAQ by TITAN User Manual...
-
Page 2: Table Of Contents
Routes Select/Start - Stop/Pause Setting goals Menu/Up Changing watchfaces Down/Quick access Connecting with buddies Back ANT+ support and external devices Start/Stop an activity Product specifications Revew an activity Disclaimer Warranty Details FCC statement CE statement TRAQ by TITAN User Manual... -
Page 3: Traq Variants

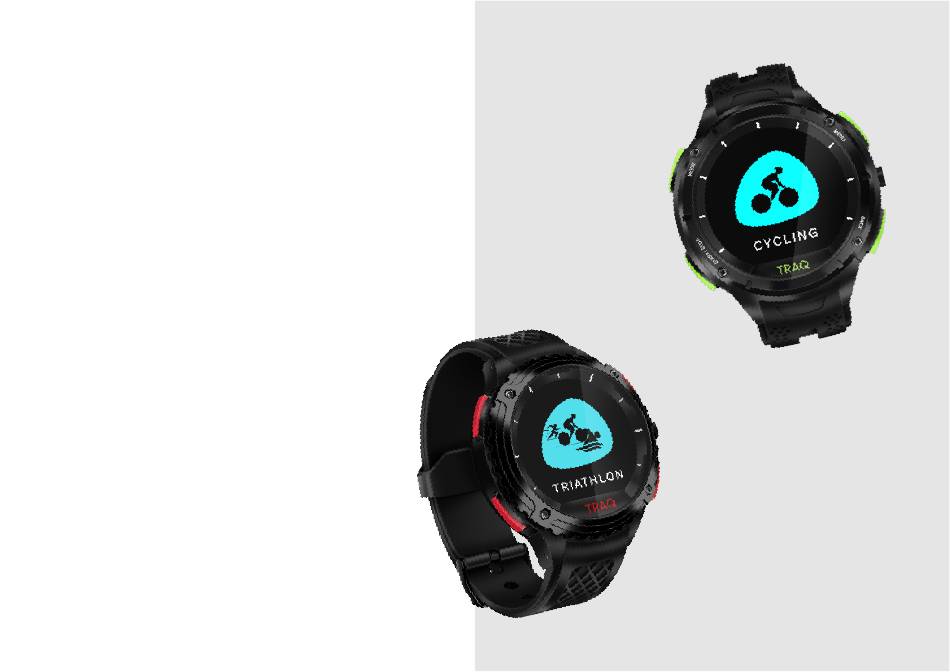

TraQ Variants Cardio Activities Running Cycling Walking Triathlon Activities Running Cycling Walking Swimming Triathlon TRAQ by TITAN User Manual... -
Page 4: Traq Features
– 13 hours with GPS On and 7 days under standard conditions SMARTWATCH FEATURES HEART RATE MONITOR TraQ provides accurate wrist- Clock features like alarm, based heart rate monitoring stopwatch & timer (HRM). Music Control HRM is easy & convenient Weather Updates/Info TRAQ by TITAN User Manual... -
Page 5: What's In The Box
What’s inside the box? What’s inside the box ? As soon as you open your box, you will find a: Cradle Watch Charging cable TRAQ by TITAN User Manual... -
Page 6: Unbox And Charging The Traq Watch
Plug in the USB cable to a power source to start charging. Make sure there’s no moisture, dust or dirt on the charging contacts of your watch and cable before charging. Do not charge the watch when it’s wet. TRAQ by TITAN User Manual... -
Page 7: Download The Traq Mobile App
Downoad the TRAQ BY TITAN app Download the TraQ mobile app “TRAQ BY TITAN” app Click here to download Click here to download WORKS BEST WITH: Android 7.0 and above, iOS 12 and above TRAQ by TITAN User Manual... -
Page 8: Pairing The Traq Watch
Tighten the watch so that it is secure & comfortable. • It should stay right behind the wrist bone. • Launch TraQ by Titan app • Enter the Mobile No. with which you want to register on the App • Accept the T&C, click Get OTP. - Page 9 Accept the pairing request. • Enter the Bluetooth paring code shown on the watch into the phone. • You have successfully paired. You might be asked to do a Firmware update for the first time. TRAQ by TITAN User Manual...
-
Page 10: Updating Firmware
It might take a while for the firmware to be successfully updated • If the update stops in between due to low battery, Plug your TraQ watch to charge until it is fully done and try again 0010 TRAQ by TITAN User Manual... -
Page 11: Advantages Of Creating Your Account
You can connect with buddies and encourage each other. • You will not lose your activity data even if you change your phone or reinstall the app as the data is stored on cloud 0011 TRAQ by TITAN User Manual... -
Page 12: Push Buttons

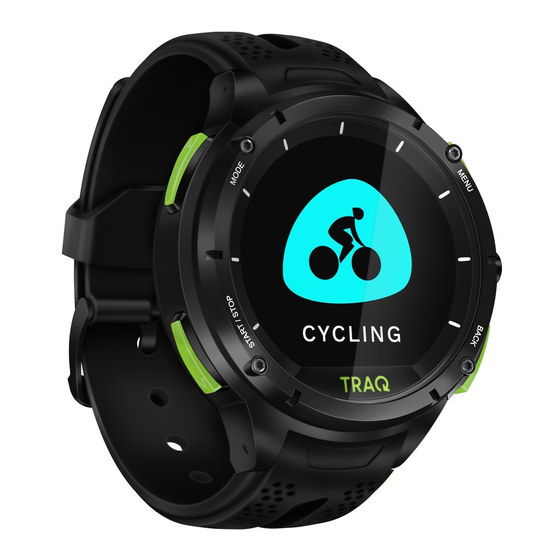

Getting to know your TraQ watch Push buttons You will see 5 buttons on your watch Mode/Power Start/Stop & Select Menu/Up Quick Access/ Down Back 0012 TRAQ by TITAN User Manual... -
Page 13: Mode/Power
Mode/Power Mode/Power button allows to choose from 5 modes. You can select any of these modes by: Pressing the Mode button Scrolling up or down using Up & Down buttons Select using Select button 0013 TRAQ by TITAN User Manual... - Page 14 This helps to locate the phone Airplane – Puts the watch in airplane mode Factory Reset – Resets all the data Restart – Restart the watch 0014 TRAQ by TITAN User Manual...
-
Page 15: Select/Start - Stop/Pause
Activity Devices Settings Activity To select activity, press UP/MENU button once. You will see Activity option Scroll up and down using Up and Down button To select the preferred activity using Select button 0015 TRAQ by TITAN User Manual... - Page 16 Pair your Heart Rate Chest Strap, Cadence Sensor or any other external sensor compatible with ANT+ through this option. Pair BLE devices Pair any external sensor like your foot pod through BLE with your watch. 0016 TRAQ by TITAN User Manual...
- Page 17 Getting to know your TraQ watch Settings Watchfaces Backlight Clock Notifications Watchfaces • You can change the Watchface • To do so, Select Watchface from Settings • Browse the various Watchfaces available using UP/DOWN buttons 0017 TRAQ by TITAN User Manual...
- Page 18 • Choose the preferred the time option from hour and 12-hour formats Allows you to set the time using GPS • You can sync the time of your watch through GPS by activating it 0018 TRAQ by TITAN User Manual...
-
Page 19: Down/Quick Access
You can choose to Enable or Disable notifications from being displayed on your watch screen using this option DOWN/QUICK ACCESS DOWN/QUICK ACCESS button allows you to scroll down & allows you to select from quick access Dashboard Music Heart rate monitor Weather Clock 0019 TRAQ by TITAN User Manual... - Page 20 In clock you will see options of Alarm, Stopwatch and Timer. • To use an option, press Select button when the specific option is highlighted. • Use UP/DOWN button to scroll and Select button to Select. 0020 TRAQ by TITAN User Manual...
-
Page 21: Back
Back button to go to the previous or next track • Quick Access button to Pause or Play the music • Long press the Back button to Exit Back Back button allows the user to go back to the previous screen. 0021 TRAQ by TITAN User Manual... -
Page 22: Start/Stop An Activity
START & STOP AN ACTIVITY • Wear your watch and fasten your strap securely. • Press the Menu button. • Select Activity. • Now you will see an activitiy. Scroll down to see other activities. 0022 TRAQ by TITAN User Manual... - Page 23 If you would like to end or pause the activity, press the Select button • After you have paused the activity. • You can see two options now: Resume and End • If you wish to Resume the Activity, press Select button and Resume. 0023 TRAQ by TITAN User Manual...
- Page 24 During an activity, long press Back button to go to the Music Control Screen. • You can adjust the music as per your convenience. • Long press the back button,to return back to the activity screen. 0024 TRAQ by TITAN User Manual...
-
Page 25: Revew An Activity
To do this, select the activity you would like to review by going to Menu and Activities • Scroll down to find Review. Press Select button • Select the date at which the activity was saved • Scroll down to see more details about your performance 0025 TRAQ by TITAN User Manual... -
Page 26: Cycling
When you select Outdoor, you can choose between Free Ride and Navigate • You can choose Navigation to select from list of saved routes or else you may choose Free Ride for starting the activity and trace the new route. 0026 TRAQ by TITAN User Manual... - Page 27 Time Speed Distance Time Covered Taken Heart Rate Calories Zone Burnt Heart Rate • Once the activity is over, you can pause or end using Select button. • You can review the activity later. 0027 TRAQ by TITAN User Manual...
-
Page 28: Running
When you select Outdoor, you can choose between Free Ride and Navigate • You can choose Navigation to select from list of saved routes or else you may choose Free Ride for starting the activity and trace the new route. 0028 TRAQ by TITAN User Manual... - Page 29 Once the activity is over, you can pause or end using Select button. • You can review the activity later. • You can also view pace during activity and also on the review screen of the watch and app 0029 TRAQ by TITAN User Manual...
-
Page 30: Walking
When you select Outdoor, you can choose between Free Ride and Navigate • You can choose Navigation to select from list of saved routes or else you may choose Free Ride for starting the activity and trace the new route. 0030 TRAQ by TITAN User Manual... - Page 31 Once the activity is over, you can pause or end using Select button. • You can review the activity later. • You can also view pace during activity and also on the review screen of the watch and app 0031 TRAQ by TITAN User Manual...
-
Page 32: Swimming
Activity Time Time Distance Distance in Time Covered Taken meter Heart Number of Rate Strokes Heart Calories Rate Zone Burnt • For swimming outdoor, select Outdoor. • Wait for GPS to lock successfully 0032 TRAQ by TITAN User Manual... - Page 33 Taken Number Heart Rate of Strokes Heart Calories Burnt Rate Zone • Once the activity is over, you can pause or end the activity using Select button. • You can review the activity later. 0033 TRAQ by TITAN User Manual...
-
Page 34: Triathlon
You can select a Route. • When you press Start, watch starts tracking Swimming. • Once SWIMMING activity is over, press Select button and transition page appears. Press Select button to start tracking CYCLING. 0034 TRAQ by TITAN User Manual... - Page 35 Scroll down to see details of the progress of Cycling. Activity Time Distance Time Covered Taken Heart Rate Heart Rate Calories Burnt Zone • Once CYCLING activity is over, press Select button and transition page appears. Press Select button to start tracking Running. 0035 TRAQ by TITAN User Manual...
- Page 36 Time Covered Taken Heart Rate Heart Rate Calories Burnt Zone • Once all the activities are over, you can pause or end the activity using Select button. • You can review the activity later. 0036 TRAQ by TITAN User Manual...
-
Page 37: Traq App Features
You can track daily, weekly & monthly You can change Watchface according performance to your preference Set Goals Connect with Buddies You can set goals for each activity and You can connect with buddies, cheer track them and nudge them 0037 TRAQ by TITAN User Manual... -
Page 38: Traq Dashboard
Distance covered, maximum heart rate, calories burnt & number of steps for the current Last activity the watch tracked Details about the last activity watch tracked: Distance covered, time taken, calories burnt & speed/Pace 0038 TRAQ by TITAN User Manual... - Page 39 Traq app • The user can see the status of the goals here. To see the status of other goals, swipe right. • This section shows the activities from the last 7 days. 0039 TRAQ by TITAN User Manual...
- Page 40 Shows the time spent on each activity in the past 7 days You can click on this calendar icon to go to any week in the past to see your activity related data for that week 0040 TRAQ by TITAN User Manual...
-
Page 41: Viewing Activity Metrics On Traq App
Activity • Tap each metric to know about your performance for the day on the Dashboard, tap an Activity • You can view the data for the day, month and year by tapping them 0041 TRAQ by TITAN User Manual... -
Page 42: Routes
Routes can be created: Select an Select Free Ride and GPS will turn on when you End the outdoor activity start activity automatically activity and click on Save, then the route also gets saved. 0042 TRAQ by TITAN User Manual... - Page 43 Enter name and description. Tap Create Transfering Routes to your TraQ watch • Go to Routes from Dashboard • Tap the three dots against the route • Tap transfer for the route to sync with the watch 0043 TRAQ by TITAN User Manual...
-
Page 44: Setting Goals
Select the activity you want to set the goal for by tapping the image of the activity. • Based on the activity selected, categories will appear • Tap the category and adjust the goal. Finally tap Add goal. 0044 TRAQ by TITAN User Manual... - Page 45 To see the status of your goals, tap here on the dashboard. To see goals for other activities, swipe right or left. • Your performance against the goal will be shown here • You can see the weekly, monthly and yearly performance 0045 TRAQ by TITAN User Manual...
-
Page 46: Changing Watchfaces
Traq app Changing Watchfaces You can change Watchfaces using App From Dashboard, go to Settings Tap Watch Tap Watchface Swipe & select the preferred Watchface 0046 TRAQ by TITAN User Manual... - Page 47 Traq app Choose from different types of Watchfaces 0047 TRAQ by TITAN User Manual...
-
Page 48: Connecting With Buddies
My Buddies section, all your buddies will be seen. The section will be empty if you haven’t added any buddies • Add buddies, and you will be taken to your contact. You can invite your contact to be your buddies 0048 TRAQ by TITAN User Manual... - Page 49 When you tap the nudge button, a default message will appear. You can also edit the message • In the Message tab , you will see the list of messages from your buddies. You can tap the buddy to see the received messages and send messages. 0049 TRAQ by TITAN User Manual...
- Page 50 App asks if you would like to Withdraw the invite, tap Withdraw. • You can even delete a buddy from the list. Tap the buddy in Manage buddies. When App asks if you would like to Remove the buddy, tap remove 0050 TRAQ by TITAN User Manual...
-
Page 51: Ant+ Support And External Devices
You can connect to these from Devices in Settings. Just ensure that the external devices support ANT+ ANT+ Devices • HEART RATE BELT • FOOT POD • COMBO SENSOR (CHEST STRAP) • CADENCE SENSOR • SPEED SENSOR • POWER SENSOR 0051 TRAQ by TITAN User Manual... -
Page 52: Product Specifications
Product specifications Product Specifications TRAQ Cardio (75001PP01, 75001PP02, 75001PP03) Models TRAQ Triathlon (75004PP01, 75004PP02, 75004PP03) Case Material: ABS + 10%GF Strap Material: TPU Case & Strap Type of Glass: Mineral Glass Thickness of Watch Head: 18.94 mm Display Type: LCD MIP (Memory in Pixel) display Size: 1.34”... -
Page 53: Disclaimer
If glass fogging does not clear up or if you notice moisture inside of the glass, immediately stop using your watch and take it to your original retailer or to an authorized Titan service center.” 0053... - Page 54 TRAQ is not a medical device, and the data provided by it is not intended to be utilized for medical purposes and is not intended to diagnose, treat, cure, or prevent any disease. We recommend you consult your doctor before engaging in any exercise routine 0054 TRAQ by TITAN User Manual...
-
Page 55: Warranty Details
Damages caused by the watch being opened anywhere other than an Authorized Service Center. • If there are any damages due to water entry, negligence, mishandling, accidents, tampering or loss of components. • Loss or damage of charging cable or cradle. 0055 TRAQ by TITAN User Manual... -
Page 56: Fcc Statement
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 0056 TRAQ by TITAN User Manual... -
Page 57: Ce Statement
To maintain compliance with RF exposure requirement, use product that maintain a O cm distance between the device and human body. Hereby, Titan Company Limited declares that the radio equipment type (Smartwatch 75001PP01, 75001PP02, 75001PP03, 75004PP01, 75004PP02, 75004PP03) is in compliance with Directive 2014/53/EU.
