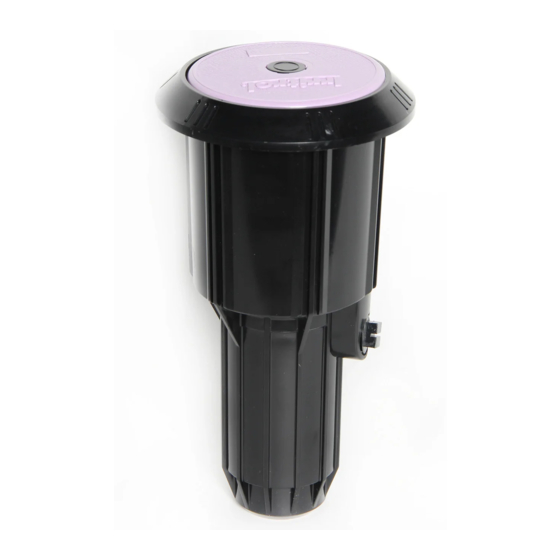

Irritrol TITAN User Manual

Installation
1
Install sprinkler flush
with ground.

Performance Data*

Standard Nozzle

Nozzle Pressure Radius
psi
1.5 30
(orange)
40
50
02.0 30
(red)
40
50
3.0 30
(black)
40
50
4.0 30
(blue)
40
50
6.0 30
(green)
40
50
Low Angle (LA) Nozzle
Nozzle Pressure Radius
psi
2.0LA 30
(grey)
40
50
4.0LA 30
(yellow)
40
50
* Precipitation rate data based on full-circle (360°).
©2020 Irritrol Systems • www.irritrol.com • Technical Support: 1-800-634-8873
TITAN
2
Connect water supply to
either bottom or side inlet.
Flow
(ft.) GPM
Precip.
in/h
32 1.5 0.16
35 1.8 0.16
36 2.3 0.20
33 2.0 0.20
37 2.2 0.18
40 2.5 0.17
35 2.9 0.26
39 3.6 0.26
41 5.0 0.26
38 3.8 0.29
41 4.2 0.28
42 5.1 0.32
39 5.8 0.42
43 6.5 0.39
45 7.5 0.41
Flow
(ft.) GPM
Precip.
in/h
23 1.8 0.33
24 2.0 0.33
25 2.2 0.34
27 3.7 0.49
30 4.3 0.46
32 4.8 0.45
Impact
™
Rotor
3
Screw included plug into
unused inlet.
In cold climates, protect sprinkler from freeze damage by
installing a drain valve to bottom inlet.

Ensure Even Coverage

To ensure that each area of your lawn receives the same
Precip.
amount of water (uniform coverage), install the nozzle
in/h
indicated in the chart to the left to correspond with the full
0.14
or part-circle spray pattern. Irritrol nozzles feature Matched
0.14
Precipitation Rates to allow sprinklers with different
0.17 patterns to be zoned together, in which each sprinkler
delivers matching amounts of water.
0.18
For new installations, avoid dry spots and areas of over-
0.15
watering by spacing sprinklers so their patterns overlap.
0.15
Use the guidelines in the accompanying chart and position
0.23
sprinklers as shown for optimum coverage.
0.23

Space sprinklers for head-to-head coverage.

0.23
0.25
0.24
0.28
0.37
0.34
0.36
Precip.
in/h
0.38
0.39
!
0.39
0.56
0.56
0.52
User Guide
4
Fill hole with gravel
covered by a layer of soil.
WARNING: Cancer and Reproductive harm –
www.P65Warnings.ca.gov.
For more information, please visit www.toro.com/CAProp65.
Patent: www.ttcopats.com
Irritrol
5825 Jasmine Street
Riverside, CA 92504
Form Number 373-0813 Rev. B
