Irritrol SIS 120P Series Maintenance And Operating Instructions

Irritrol SIS 120P Series Maintenance And Operating Instructions

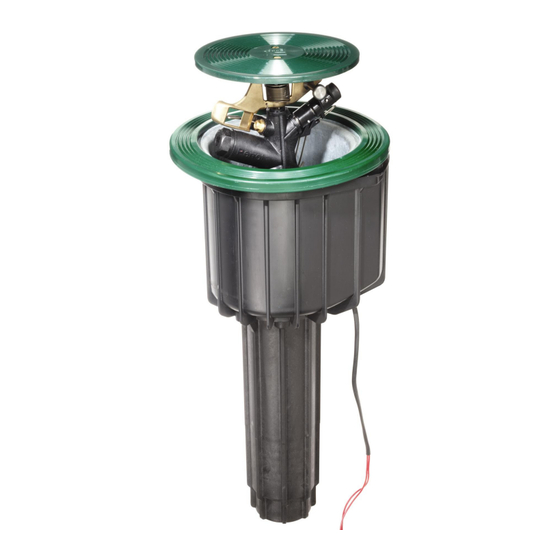

Pop-up sprinkler with integrated valve

Advertisement

I.S.E. S.r.l.
Via Dell'artigianato 1/3
00065- Fiano Romano (RM)
Tel. 076540191-Fax 0765455386
www.irritrol.it
Maintenance and Operating Instructions
IRRITROL

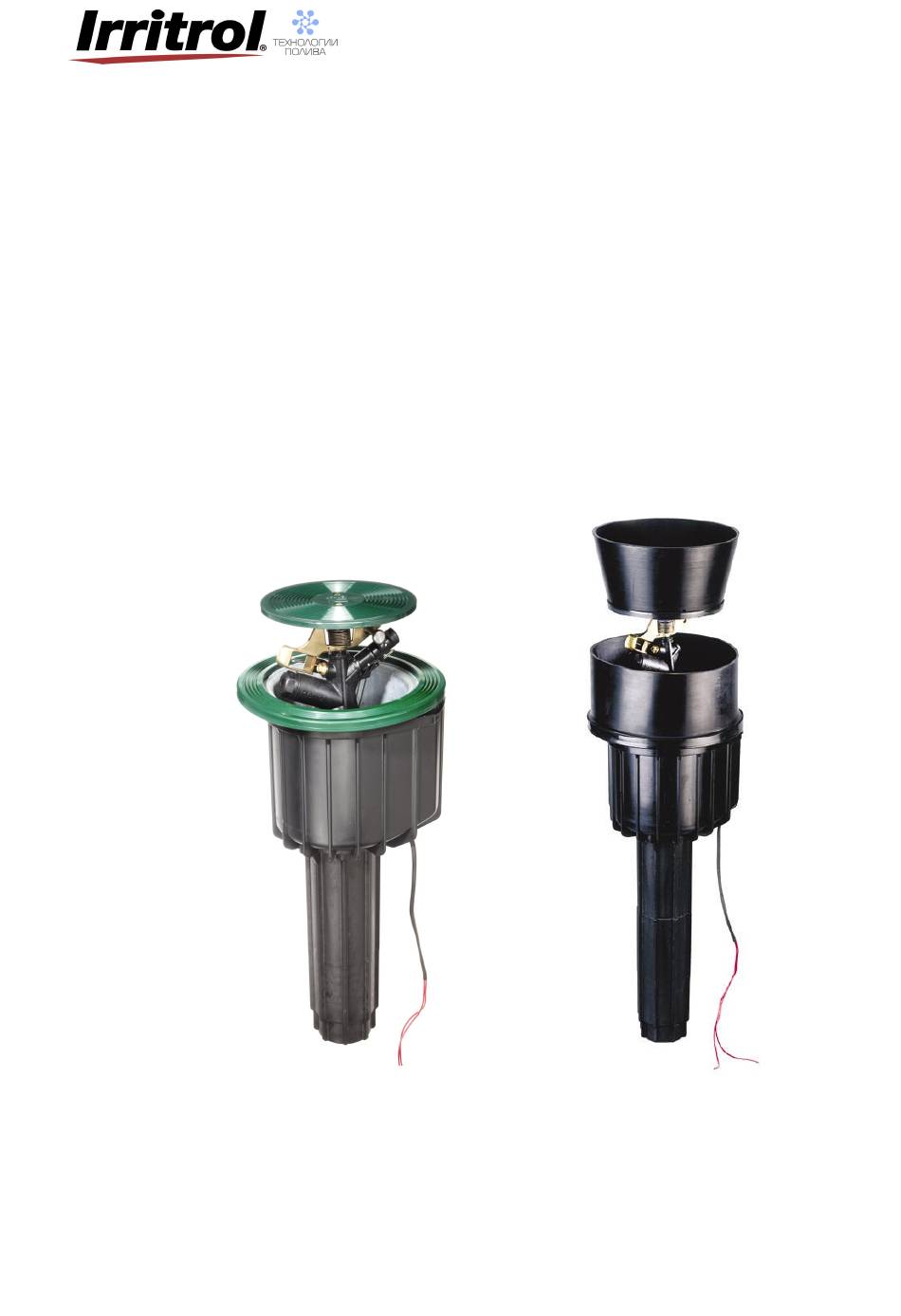

Pop-up sprinkler with integrated valve
SIS 120P/SISF

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIS 120P Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Irritrol SIS 120P Series

  • Page 1 I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it Maintenance and Operating Instructions IRRITROL Pop-up sprinkler with integrated valve SIS 120P/SISF...
  • Page 2: Table Of Contents

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it Contents 1. General 2. Safety 3. Description 4. Assembly 5. Commissioning 6. Maintenance 7. Break-down and elimination of the defects 8. Spare parts list 1. General We presume, that you are experienced in the field of irrigation. Therefore we have kept this instruction as brief as possible, and have included such information only, which you must have for the use of this product.
  • Page 3: General

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it 2. Safety These operation and safety instructions include basic remarks and hints for the assembly, installation, operation, maintenance, inspection and repair. For this reason these instructions must be read by the fitter, as well as by the customers authorised staff, prior to the installation and commissioning.
  • Page 4: Description

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it 3. Description Recommended operating pressure 5 to 6 bar Permissible operating pressure 3 to 8 bar ATTENTION The pressure at the sprinkler must not exceed 10 bar.
  • Page 5: Commissioning

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it 5. Commissioning / Winterise 5.1.1 Connection Measurements: Sprinkler type SIS 120PV-PGV SIS120FV Installation height 450 mm 660 mm Rising height 99 mm 206 mm Outer Ø housing...
  • Page 6 I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it picture 1...
  • Page 7: Maintenance

    Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it 6. Maintenance Clean interior space of the sprinkler with a industrial type vacuum cleaner or a similar device. Clean / relieve sprinkler housing from overgrown grass. This work should be done conveniently before commissioning in spring.
  • Page 8 I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it Assembling of the sprinkler 7.2.1 Flush sprinkler In case that the valve contains soil particles, the sprinkler has to be flushed before assembling. Assemble flushing equipment [31] in the sprinkler housing (see picture 2) and open water supply.
  • Page 9: Break-Down And Elimination Of The Defects

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it 7.3 Break-down and elimination of the defects Break down Cause / reason Elimination Valve opens / closes only Coil or coil seat is dirty Remove coil and clean it, manual not by electrical, see point 7.1.
  • Page 10 I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it Attached SIS 120F/ SIS 120P without valve...
  • Page 11: Recommended Operating Pressure

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it Contents 1. Description 2. Installation 3. Commissioning 4. Adjustments 5. Maintenance / Cleaning / Repair 6. Preparation for winter time 7. Troubleshooting + Solutions 8. Disassembly and assembly of sprinklers 1.
  • Page 12 I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it 2. Installation Dimension Sprinkler type SIS 120P-PG SIS 120F Installation height 370 mm 573 mm Rising height 98 mm 205 mm Outer Ø housing 246 mm 246 mm Outer Ø...
  • Page 13: Application

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it 4. Adjustments 4.1 Sectors The sectors of the reference part circle of sprinklers are adjusted by pushing the spring stop at the end, which expand the spring. You achieve a crude adjustment before installation, the fine adjustment should be done on the working sprinkler.
  • Page 14: Via Dell'artigianato

    I.S.E. S.r.l. Via Dell’artigianato 1/3 00065- Fiano Romano (RM) Tel. 076540191-Fax 0765455386 www.irritrol.it Deckel cover Holzstück peace of wood Gehäuse housing Halteventil Stopvalve 7. Troubleshooting + Solutions Attention !!! Before above-mentioned works are executed, it must be ensure that the valve is pressure-less.
