WARNING: Selection of this control for a particular application should be made by a
competent professional, licensed by a state or other government. Inappropriate application
of this product could result in an unsafe condition hazardous to life and property.

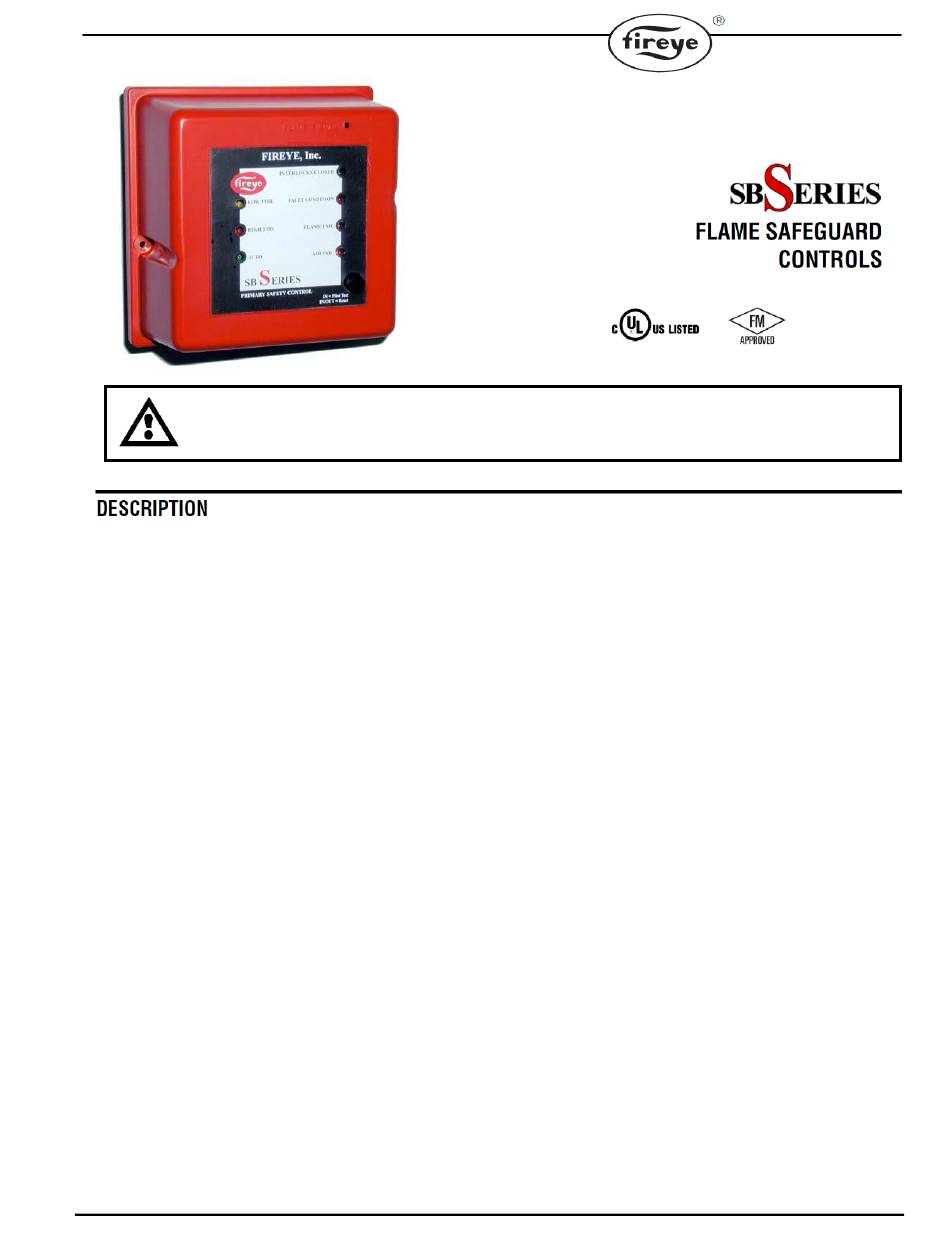

The Fireye SBSeries Flame Safeguard Control is a compact, microprocessor based, modular
burner management system designed to provide automatic ignition and continuous flame
monitoring for com-mercial sizes of heating and process equipment firing any type of fuel.
The SBSeries are tested to EN298.
The control unit includes all the necessary digital logic and analog measuring circuitry to control
the sequence and monitor the flame of single gas, oil or combination gas/oil burners. Three
available control sequences are no-purge, purge, and modulation (air damper control). The part
number specifies the various features such as the flame sensor type, no purge, purge, modulation,
proof of air opening at start, and timings; thus the designer has control and protection against field
tampering of critical sequences.
LED indicators are available on the front of the unit that provide current operating status of the
burner system including lockout alarm. A test jack is recessed into the front cover that provides
real time reading of the connected flame sensor. This same test jack is also used to connect to an
alpha-numeric display, SB20896. A push button provides reset from lockout condition as well as
placing the unit in a check condition usable for pilot turn down test.
The SBSeries flame safeguard control family are of plug-in design and available in models that
operate at 120 VAC, 50/60 Hz and 230 VAC, 50/60 Hz making them universally acceptable.
*The wiring base provides a convenient means for connecting field wiring from the burner and
valve system to the control unit. There are three styles of bases: an internal terminal base that
provides a guarded wiring compartment; an external terminal base for use within a protective
control panel; and an expanded external terminal base for use with the modulation sequence
control units.
Sensors that may be used with the SBSeries include flame rod (rectified ionization), ultra-violet
(UV) scanners, and self-checking UV scanners for continuous operation. Four types of non self-
checking UV scanners meet the demands of various environmental conditions.
1
SB-2501
April 3, 2019
FIREYE
®
Advertisement
Table of Contents
Related Manuals for Fireye SB Series
Summary of Contents for Fireye SB Series
- Page 1 Inappropriate application of this product could result in an unsafe condition hazardous to life and property. The Fireye SBSeries Flame Safeguard Control is a compact, microprocessor based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for com-mercial sizes of heating and process equipment firing any type of fuel.
-
Page 2: Ambient Temperature Limits
WARNING: This equipment generates and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. - Page 3 Flame Safeguard Controls Eclipse Part Number Fireye Part Number Description VF560222AA SB560222AA 120VAC, 5/10TFI, UV,PURGE VF560222AB SB560222AB 120VAC, 5/10TFI, UV,PURGE VF560222XA SB560222XA 120VAC, 5/10TFI, UV,PURGE VF560222XB SB560222XB 120VAC, 5/10TFI, UV,PURGE VF560223AA SB560223AA 120VAC, 5/10TFI, FR,PURGE VF560223AB SB560223AB 120VAC, 5/10TFI, FR,PURGE...
- Page 4 Flame Safeguard Controls Eclipse Part Number Fireye Part Number Description VF560322XA SB560322XA 240VAC, 5/10TFI, UV, PURGE VF560322XB SB560322XB 240VAC, 5/10TFI, UV, PURGE VF560323AA SB560323AA 240VAC, 5/10TFI, FR, PURGE VF 560323 AB SB560323AB 240VAC, 5/10TFI, FR, PURGE VF560323XA SB560323XA 240VAC, 5/10TFI, FR, PURGE...
- Page 5 Flame Safeguard Controls Eclipse Part Number Fireye Part Number Description VF560522AB SB560522AB 120VAC, 10/15TFI, UV, PURGE VF560522XA SB560522XA 120VAC, 10/15TFI, UV, PURGE VF560522XB SB560522XB 120VAC, 10/15TFI, UV, PURGE VF560523AA SB560523AA 120VAC, 10/15TFI, FR, PURGE VF560523AB SB560523AB 120VAC, 10/15TFI, FR, PURGE...
- Page 6 Wiring Bases Eclipse Part Number Fireye Part Number Description 22194 SB22194 INTERNAL TERMINAL BASE, PL 22195 SB22195 WIRING BASE, PLASTIC, EXPO 49602-40 SB49602-40 MODULATION BASE (ECLIPSE) Displays Eclipse Part Number Fireye Part Number Description 20896 SB20896 REMOTE DISPLAY, 120V W/KEYPAD...
- Page 7 FIGURE 3 Series MODULATION sequence model, SB49602-40 (24mm) 15/16" 6-3/4" (171mm) 1" (25mm) 1-9/16" (40mm) 3/8" (10mm) 3/16" (5mm) 4-9/16" 8-3/8" (213mm) 116mm FIGURE 4 Remote Display SB20896 FLAME SCANNERS UV SCANNER (SB49600-91) UV SCANNER SELF-CHECK UV SCANNER (SB49600-90 (SB49602-91 CAUTION: The SB49600-91 and SB49600-90 ultra-violet flame scanners and associated amplifier modules are non self-checking UV systems and should be applied only to burners that cycle often (e.g.
- Page 8 Use moisture resistant wire suitable for at least 90°C. Good electrical wiring practice should be followed to ensure an adequate ground system. Refer to Fireye Service Note SN-100 separately and General Grounding Rules later in this document for grounding methods.
- Page 9 Terminal 4 – Ignition wiring The output terminal normally powers a high voltage transformer. Route the high voltage ignition wiring a sufficient distance from all sensors and other low voltage wiring to avoid electrical interference, which may cause erratic operation of the SBSeries system. Keep the high voltage wire as short as possible.
- Page 10 WARNING: Install a modulation sequence model into the modulation style base only; never plug into purge or no-purge bases. FIGURE 5 WIRING FOR NO PURGE MODELS 120 VAC 240 VAC 50/60 HZ 50/60 HZ 15 A On/Off Fuse Piloted Burner Pilot Ignition Main...
- Page 11 FIGURE 7 WIRING FOR DIRECT SPARK OF MAIN FLAME, NO PURGE MODELS & PURGE MODELS FIGURE 8 WIRING FOR MODULATION MODELS FIGURE 9 WIRING FOR DIRECT SPARK OF MAIN FLAME, MODULATION MODELS...
- Page 12 FIGURE 10 WIRING FOR 120 VAC REMOTE DISPLAY MODULE FIGURE 11 TYPICAL CONNECTIONS FOR ALL MODELS 5 thr gh 11 Notes for Figures For UV ground, shielding & conduit must not be connected to terminal S2. For FR, S2 must connect to flame ground (burner front plate).
-
Page 13: Operation
OPERATION Introduction This section describes the features of the Series CE. It is presented in three categories: standard Features, Optional Features, System Errors and Lockout Conditions, and the LED Indicator lights. Standard Features Interlocks and The following functions are standard features on the Series models as noted. -
Page 14: Dip Switch Selection
DIP SWITCH SELECTION Introduction This section details the location, selection and description of the Series DIP switches which allow for sequence and timing functions as well as system configuration. DIP Switch Location All of the DIP switches are located in the back of each Series unit. -
Page 15: Optional Features
Main Fuel Valve Closed Switch (Terminal V) For NO-PURGE and PURGE sequence models: The Series can be interlocked with the main valve closed position switch. This feature checks the switch position before start-up and after shut- down to insure proper valve operation when the jumper on the base is cut. For MODULATION models: When wired, the system checks for the low fire start position prior to light off. -
Page 16: Lockout Condition
Manual Reset on Power Outage With "B" specified, the TEST/RESET button must be pressed twice (in and out) to start the sequence. The system error light blinks rapidly (about 4 times per second) and a remote display will show "PUSH RESET TO START". Remote Display A remote display is available for the Series. - Page 17 Status Lights and Push-Button All of the status lights and the TEST/RESET push-button are located on the front cover of the Series. This section describes their respective functions. Interlocks Closed This green LED illuminates when the operation limits are made. The limits are wired in series to terminal 7.
- Page 18 TYPICAL SEQUENCE FOR NO-PURGE MODELS Terminal Function Control Power Pilot Valve Ignition Outputs Main Valve Interlocks Inputs PO VC Flame Recycle 35 seconds Check Permitted 5 sec Main Pilot Firing Trial Cycle Trial 10 sec TYPICAL SEQUENCE FOR PURGE MODELS Terminal Function Control Power...
-
Page 19: Sensor Installation
SENSOR INSTALLATION WARNING: Incorrect sensor installation may cause the sensor to generate a false flame sig- nal, causing unburned fuel to collect in the combustion chamber. The result can be explo- sions, injuries and property damage. Be certain that the flame sensor detects only pilot and main flames, not glowing refractory, burner or ignition parts. - Page 20 Insert the positive probe of a 0-15 VDC, digital volt meter into the test point on the front cover of the SB Series control connect the negative probe to S2 or ground. A good flame signal strength will read between 6 and 11 VDC; anything below 4 VDC is inadequate. Also, the red LED inside the test point illuminates when a flame is indicated.
- Page 21 To enter the pilot test mode, depress the test/reset button located in the lower right corner on the front cover. To enter the pilot test mode, depress the test/reset button located in the lower right corner on the front cover. The control will hold the operating sequence at the pilot flame step.
-
Page 22: Maintenance
Maintenance Maintenance Preventative maintenance is the key to a reliable, safe and efficient system. The following are suggested guidelines for periodic maintenance. Burners in severe environments or operational conditions should be checked more frequently. The monthly and yearly lists are an average interval. If your environment is dirty, then the intervals may be shorter. -
Page 23: Troubleshooting Procedures
Troubleshooting Procedures Problem Possible Cause Solution Main valve is not closed Check main valve closed switch. No voltage on V (or D). Check air pressure switch adjustment. Check air filter. Air pressure switch has not made Check blower rotation. contact Check outlet pressure from blower. - Page 24 LED Indicator Lights The LED’s on the front cover of the control will indicate the operational status of the control. LED Status & Conditions for “No Purge” Models LED’s Lit Possible Cause INTERLOCKS CLOSED 1. The interlocks are closed (normal operation), power on terminal 7. 1.
- Page 25 LED Status & Conditions for “Modulation” Models LED’s Lit Possible Cause INTERLOCKS CLOSED 1. The interlocks are closed (normal operation), power on terminal 7. 1. The flame detected is out of sequence, flame signal light is on. 2. The sensor is “runaway,” flame signal light is on. FAULT CONDITION 3.
- Page 26 Fireye warranty, as stated in its General Terms and Conditions of Sale, pertains only to the Fireye products and not to any other equipment or to the combined system or its overall performance.
