Summary of Contents for GNATUS Optilight Color
-
Page 2: Presentation Of Manual

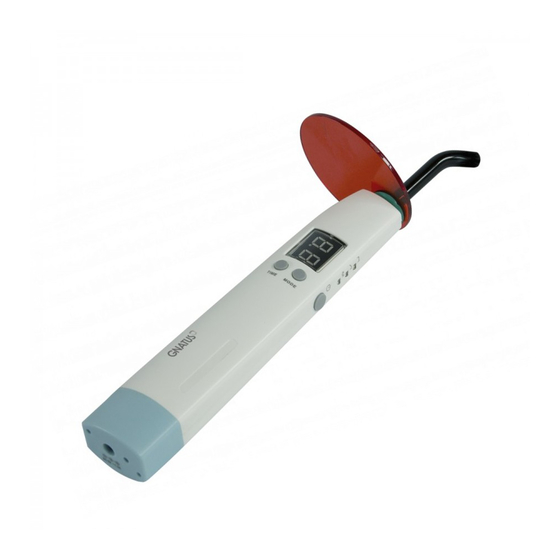

PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Equipment for resins’ photopolymerizers. Trade Name: Curing Light Optilight Color Model: Optilight Color Brand: Gnatus Manufacturer / Distribuitor: Alliage S/A Indústrias Médico Odontológica C.N.P.J. 55.979.736/0001-45 - Insc. Est. 582.002.897.114 Rod. Abrão Assed, Km 53+450m - Cx. Postal 782 CEP 14097-500 Ribeirão Preto - S.P. - Page 3 INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 07 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 09 TECHNICAL SPECIFICATIONS 09 General features 10 Electromagnetic emission 14 Dimensions 15 Packing symbols 15 Product symbols 16 INSTALLATION OF EQUIPMENT 17 OPERATION OF EQUIPMENT 19 PRECAUTION, RESTRICTION AND WARNING 19 Recommendations for the equipment’s conservation 19 Transport conditions, warehousing and operation...
-
Page 4: Identification Of Equipment
We advise its complete reading and conservation for further consults. IDENTIFICATION Technical Name: Equipment for resins’ photopolymerizers. Trade Name: Curing Light Optilight Color Model: Optilight Color... -
Page 5: Indication Of Equipment
The safety and efficiency of the LEDs, now with high energy emission, are available to all the clinical procedures that require light power for photo activation. The wavelength from 420nm to 500nm associated with the high energy emitted by Optilight Color enables the multi functionality of this device: •... - Page 6 • It does not require a forced ventilation system, therefore avoiding noise emission. We observe that the light emitted by the Optilight Color is completely contained within the absorption interval of the photo initiator and is, therefore, 100% used while conventional devices, which use halogen lamps have a big part not used in the process.
-
Page 7: Modules, Accessories, Options And Materials Of Con- Sumption
MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION Continuous mode Visor “display” Ramp mode Pulse mode Time adjust button On / Off button Application mode selector button Green: Full charge Red: Loading 01 - Light conductor 02 - Handpiece 03 - Power supply unit 04 - Base A - Commands B - Indicative LED for the battery level... - Page 8 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION Accessories that come with the product: BATTERY BASE OCULAR PROTECTOR SENT INSIDE EQUIPMENT LIGHT CONDUCTOR POWER SUPPLY UNIT The content of this page is for informative purpose, so the equipment can present itself different from the illustration.
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS General features Voltage (Power Supply Unit) Ve: 100 - 240V~ / 50/60Hz (Bivolt) Vs: 5V - 1.5 A Light source (1 LED) Power (Maximum): 6W Light power: 1200 mW/cm2 ± 200 mW/cm2 Semi-conductor LED (InGaN) Wavelength: 420nm - 500nm Li-ion battery DC 3.7V 2200mAh Time for full battery charge... -
Page 10: Electromagnetic Emission
Electromagnetic emission Electromagnetic emission The Optilight Color is made to be used in the electromagnetic environments specified below. The client or the user of the Optilight Color must be sure that it is used in such environment. Emission test Compliance... -
Page 11: Guidelines And Manufacturer's Declaration - Electromagnetic Immunity
Guidelines and manufacturer's declaration - electromagnetic immunity The Optilight Color is made to be used in the electromagnetic environments specified below. The client or the user of the Optilight Color must be sure that it is used in such environment. Immunity... - Page 12 Guidance and manufacture's declaration – electromagnetic immunity The Optilight Color is intended for use in the electromagnetic environment specified below. The customer or the user of Optilight Color should assure that it is used in such an environment. IEC 60601...
- Page 13 Recommended separation distances between portable and mobile RF communications equipment and the Optilight Color The Optilight Color is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Optilight Color can help prevent...
- Page 14 TECHNICAL SPECIFICATIONS Dimensions (mm)
-
Page 15: Packing Symbols
TECHNICAL SPECIFICATIONS Packing symbols Stacking Limit by number Keep dry This side Up Keep away from sunlight Fragile, handle with care Temperature limitation Product symbols Type B General warning Attention Recyclable Grounding (at several points of the Refer to the instruction manual equipment) indicates the condition of being grounded. -
Page 16: Installation Of Equipment
INSTALLATION OF EQUIPMENT click 1-Before using it, please, 2- Insert the light conductor in 3-Insert the ocular protector on sterilize the light conductor, the handpiece until you hear a the light conductor. disinfect the handpiece, the slight click and feel that it was wire and the base. -
Page 17: Operation Of Equipment
OPERATION OF EQUIPMENT Press beep beep beep Press Press - Press the button to turn on the equipment (fig.1). - Select the application mode pressing the selection button (fig.2), which variations are: - Continuous: Maximum mode and continuous for light intensity (same luminosity from the beginning to the end of the polymerization). - Page 18 OPERATION OF EQUIPMENT Automatic shutdown: The equipment will turn off automatically when not in use for more than 3 minutes. For turning it on again, press the On / Off button. IMPORTANT: - Never address the light beam to the eyes; - Protect the visual field using the ocular protector;...
- Page 19 PRECAUTION, RESTRICTION AND WARNING Recommendations for the equipment’s conservation Your equipment has been designed and improved following modern technology standards. All devices need special care, which a lot of times are forgotten for several reasons and circumstances, because of that, here are some important reminders for your everyday. Seek to observe these little rules that incorporated to the job’s routine, will provide a big time economy and will avoid unnecessary expenses.
-
Page 20: Precautions And Warnings "After" The Use Of Equipment
PRECAUTION, RESTRICTION AND WARNING Precautions and warnings “during installation” of the equipment - Check the voltage of the equipment when performing the electrical installation. - Place the equipment at a place that will not get wet. - Install the equipment at a place where it will be not damaged by pressure, temperature, direct solar light, powder and salt. -
Page 21: Precautions In Case Of Alteration In The Functioning Of Equipment
PRECAUTION, RESTRICTION AND WARNING Precautions and warnings during “cleaning and disinfection” of the equipment - When disinfecting the handpiece, remove the light conductor; use neutral soap or alcohol 70% vol. Never use povidone iodine, glutaraldehyde or chlorinated products, which with time can produce superficial attacks over the instrument’s body. -
Page 22: Corrective And Preventive Maintenance And Preservation
CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Additional procedures for reuse The equipment can be reused in undetermined, i.e. unlimited, quantities, only needing to be cleaned and disinfected. Cleaning 1) Handpiece and battery: Wipe dry with a clean, damp cloth to remove visible residue. 2) Light conductor: Rinse with tap water and dry with a dry cloth. - Page 23 CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Preventive Maintenance The equipment must suffer routinely measurements, following the current legislation of the country. But, never with a period superior to 3 years. For protecting your equipment, look for a Alliage technical assistance for periodic reviews as preventive maintenances.
-
Page 24: Unforeseen Events - Solution Of Problems
UNFORESEEN EVENTS – SOLUTION OF PROBLEMS Attention Upon coming across any problem in operation, follow the instructions below to check and repair the problem, and/or get in touch with your representative. Imprevistos Provável Causa Soluções Problem Probable cause Solution -Equipment inoperative. -Handpiece battery without -Recharge the handpiece on “Display with no show”. -
Page 25: Final Considerations
EQUIPMENT’S WARRANTY This equipment is covered by the warranty terms and norms contained in the Warranty Certificate that accompany the product. FINAL CONSIDERATIONS Among the care you have to take with your equipment, the most important is regarding of the spare parts replacement.
