Riverside Furniture Juniper Bedroom Assembly Instructions

Riverside
Furniture
email:info@riverside-furniture.com
Parts packed with the Headboard
Headboard
A
1pc.
Parts packed with the Footboard
Slats
Footboard
76-7/8 Long
1 pc. C 4 pcs.
B
Component Parts & Hardware packed with the Bed Rails
5/0-6/6 Bed Rail
2 pcs.
E
6/0 Bed Rail
2 pcs.
E

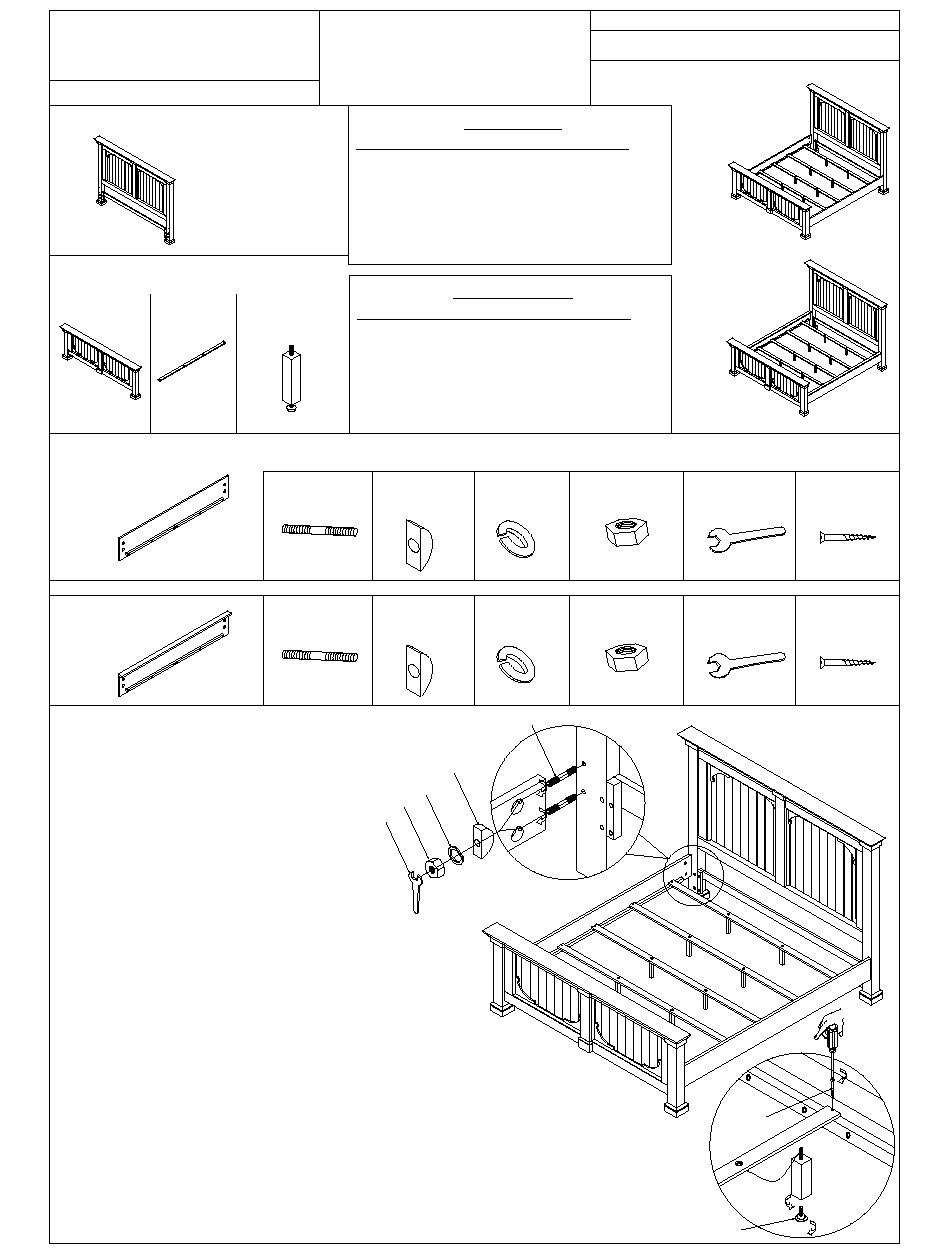

ASSEMBLY STEPS :
1. Gently lean the Headboard against the
wall where the completed Bed will be
located in the room.
2. Install the eight All-Thread Bolts (F) into
the threaded metal inserts mounted on the
Headboard and Footboard posts.
3. Position one end of one Bed Rail (E) onto the
All-Thread Bolts and fasten with the Curved
Washers (C), Lock Washers (H) and Hex Nuts
(I). Only partially tighten the Hex Nuts until
the Footboard has been connected. Repeat for
other Bed Rail.
4. Position and connect the Footboard to the
other end of the Bed Rails as in previous Steps.
5. Carefully align the Footboard to be 'square' with the Headboard. Using
the Open Wrench (J) tighten all Hex Nuts attaching the Side Rails to the
Headboard and Footboard.
6. Attach the Slat Support Legs (D) to the Wood Slats (C).
7. Attach the Wood Slats to the Bed Rails using the Wood Screws (K) and
your Phillips Screwdriver. The levelers located at the bottom of the Support
Legs can be adjusted if necessary.
Juniper
Bedroom
Assembly Instructions
6/0-6/6 King Size Bed Components
44480 -- 6/0-6/6 Panel Headboard
44481 -- 6/0-6/6 Panel Footboard & Slats
44475 -- 5/0-6/6 Panel Bed Rails (for 6/6 Bed)
44485 -- 6/0 Panel Bed Rails (for 6/0 Bed)
Slat Support Leg
6/0-6/6 King Size Bed Components
10-5/8 Long with
leveler
44483 -- 6/0-6/6 Panel Headboard
44487 -- 6/0-6/6 Panel Footboard & Slats
44472 -- 5/0-6/6 Panel Bed Rails (for 6/6 Bed)
D 8 pcs. 44486 -- 6/0 Panel Bed Rails (for 6/0 Bed)
Bolt Ø5/16" x
Curved Washer
4-1/2"L
Ø5/16"
8pcs.
F G
Bolt Ø5/16" x
Curved Washer
4-1/2"L
Ø5/16"
8pcs.
F G
H
I
J
Chalk Finish
or
Charcoal Finish
or
Lock Washer
Hex Nut Ø5/16-18
Ø5/16"
Dia. x 12mm
8 pcs.
H I
8 pcs.
Lock Washer
Hex Nut Ø5/16-18
Ø5/16"
Dia. x 12mm
H 8 pcs. I
8 pcs.
F
G
Page 1 of 2
Made in Viet Nam
6/6 Eastern
King Bed
6/0 California
King Bed
Wood Screw
Open Wrench
#8 x 1" L.
12mm
1 pc. K
J
8 pcs.
Wood Screw
Open Wrench
12mm #8 x 1" L.
K
1 pc.
J
8 pcs.
K
Adj.Glide
8 pcs.
8 pcs.
